25t mold handling electric trackless car on concrete ground battery power

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-10T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details The trackless car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feature Without Railway Rated Load 1-500t, Customized
Capacity Up To 500ton Car Size Custom Car Length And Width
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Turning Angle 0-360 Degree Wheel Material Caster Wheel With PU
Power Supply Battery Power Operation Method Operating Handle+ Wireless Remote Control
High Light

powered trolley cart

,

motorized platform cart

Leave a Message
Product Description

25t mold handling electric trackless car on concrete ground


The BWP Trackless transfer car is powered by battery. It can spin around 360 degrees. All the transfer cars are equipped with warning alarm, safety inspection device and Dead-man control. It can also be equipped with automatic intelligent charger and PLC control system, so that it can realize full-automatic control.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.



Advantages of steel electric trackless car

Flexiability and environmental;

Has no limit on running distance;

Has no strict requirement on rail construction;

Can run on steel plate, cement floor, concrete floor

The hydraulic lifting device, V-frame, power roller can be installed on the platform;

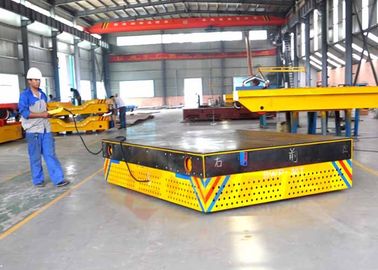

Photo show of electric trackless car


25t mold handling electric trackless car on concrete ground battery power 025t mold handling electric trackless car on concrete ground battery power 125t mold handling electric trackless car on concrete ground battery power 225t mold handling electric trackless car on concrete ground battery power 3

The V-frame device can be added on the platformin order to protect the material falling down from the truck.

Advantages of trackless car on concrete floor

Control electrical appliance with automatic stop function when meeting man or obstacle
Control electrical appliance is made of frequency converter and contactor
Control appliance operation is wired push button pendant
Control appliance operation is remote controller
The wireless remote control features:long distance of remote control and long service life
The feature of control electrical appliance:low barrier rate

The electric trackless car is used to transfer steel mold from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.
Main parts
25t mold handling electric trackless car on concrete ground battery power 4

The trackless car is applied to transfer steel mold in the workshop.

25t mold handling electric trackless car on concrete ground battery power 5

This kind of electric trackless car is convenient to operate. It can be pendant control or remote control.

25t mold handling electric trackless car on concrete ground battery power 6


These kind of electric trackless car is also applied to transfer heavy box or container in shipyard or harbor.

The parameter of electric trackless car



Model
BWP-5T BWP-10T BWP-15T BWP-20T BWP-30T BWP-40T BWP-50T
Rated load (T) 5 10 15 20 30 40 50
Table size length(L) 3000 3600 4000 4500 5000 5500 6000
Width(W) 2000 2000 2200 2200 2200 2300 2300
Height(H) 450 530 600 600 650 700 700
Wheel Base (mm) 2500 3100 3400 3900 4300 4800 5200
Tread(mm) 1500 1500 1700 1700 1700 1800 1800
Wheel Diameter(mm) Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-15 0-15 0-15 0-15 0-15 0-12 0-12
Motor Power (Kw) 3.5 5 6 7 10 12 15
Battery maintenance
Maintenance-free
Turning Radius(mm) 2501 3101 3401 3901 4301 4801 5200
Brake principle
Electric Magnetic Force
Ground Balancing
Automatic Mechanical Balancing
Turning mode
Continuous Turning while Traveling
Control Mode for Turning
Electrical Control Button
Max Wheel Load (t) 2.8 4.6 4.3 5.6 7.7 10 12
Reference Weight (t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Thickness of the Steel Plate (mm) 8 10 12 14 14 16 16
Wheel Material
ZG55+Hydropur
Charger Function
Automatic Intelligent Charging
Color
Yellow plus Warning Sign
Control Mode for Turning
3-0.3m, Automatic Stop when Obstacles Detected
Alarming Device
Sound and Light Alarm
Other Functions
Turning Light, Night Light, and Power Display

Application of electric trackless car


25t mold handling electric trackless car on concrete ground battery power 7

Assembly line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the cart should be designed with heat exposure proof device, expecially to the battery, motor, reducer and electric appliance.
Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.). The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
BEFANBY Company

25t mold handling electric trackless car on concrete ground battery power 8Manufacturing25t mold handling electric trackless car on concrete ground battery power 9

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand


Cutomer from worldwide


25t mold handling electric trackless car on concrete ground battery power 10

Parts of BEFANBY Certificates


25t mold handling electric trackless car on concrete ground battery power 11

Delivery of electric trackless car


25t mold handling electric trackless car on concrete ground battery power 12
Generally the electric trackless car is delivery through container. If the dimension of the transport is too large,
it can be break up or delivery through flat rack.


BEFANBY advantages
  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

25t mold handling electric trackless car on concrete ground battery power 13
