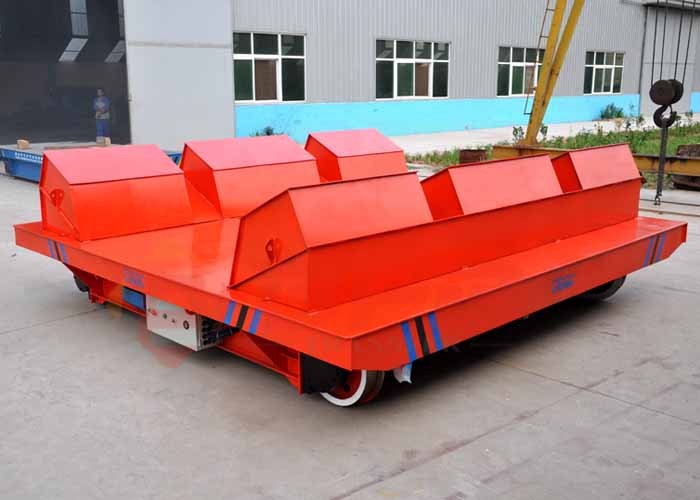

Steel Coil Handling Tail Rail Transfer Trailer With V-Frame

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-20t
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Supply Ability 60 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Peoduct Name Electric Transfer Car For Industrial Use Capacity(t) 20t
Table Size(mm) 4000*2200*600 Running Speed(m/min) 0-25
Running Distance(m) 100 Rail Type P24
Wheel Pressure(KN) 77.7 Rail Gauge(mm) 1435
Wheel Diameter(mm) 300 Wheel Quantity(pcs) 4
Weight(t) 5.9 Certificate CE, SGS, ISO9001, SASO
Package The Whole Cart Is Packed By High Quality Plastic Cloth Color Red, Yellow, Blue
High Light

battery operated cart

,

rail transfer trolley

Leave a Message
Product Description
steel coil handling tail rail transfer trailer with V-frame

This kind of rail transfer trailer is running on steel rails or steel squre bars. It is commonly applied to transfer heavy materials between workshops, or from workshop to warehouse. It is used in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store. The power supply of the coil transfer trailer can be customized, we can recommend client a suitable type according to their working site, It can be storage battery power, cable drum power, Busbar power, conductor rail power, towed cable power etc.



Advantages of steel coil transfer trailer

  • Flexiability and environmental;
  • It can run on S shape rail, arc-shape rail and stright rails.
  • Has no limit on running distance;
  • Has no strict requirement on rail construction;
  • The hydraulic lifting device, V-frame, power roller can be installed on the platform;

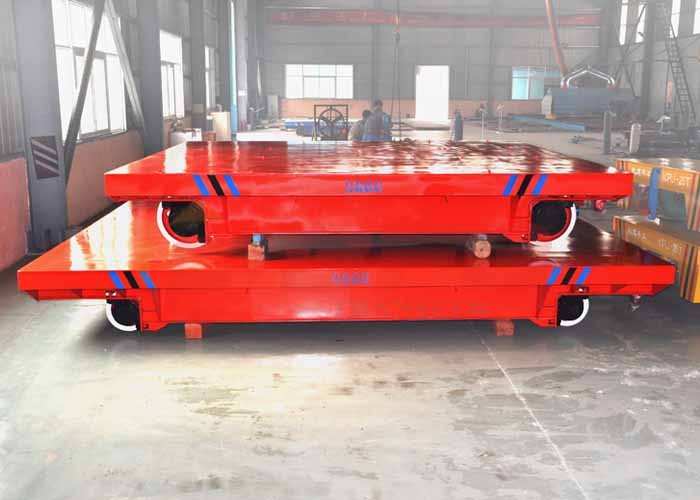

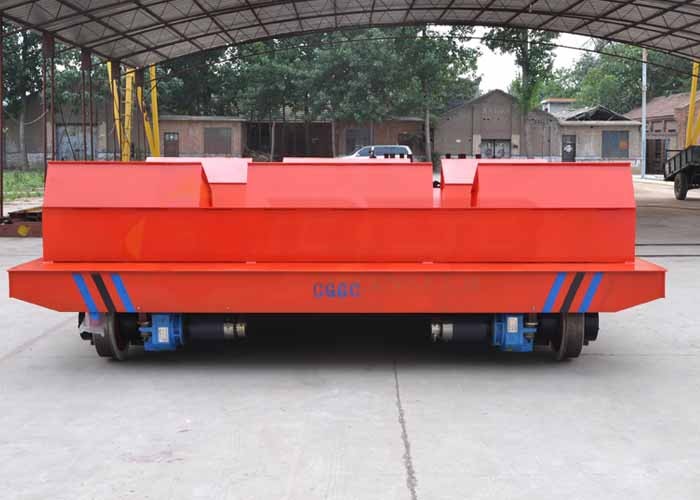

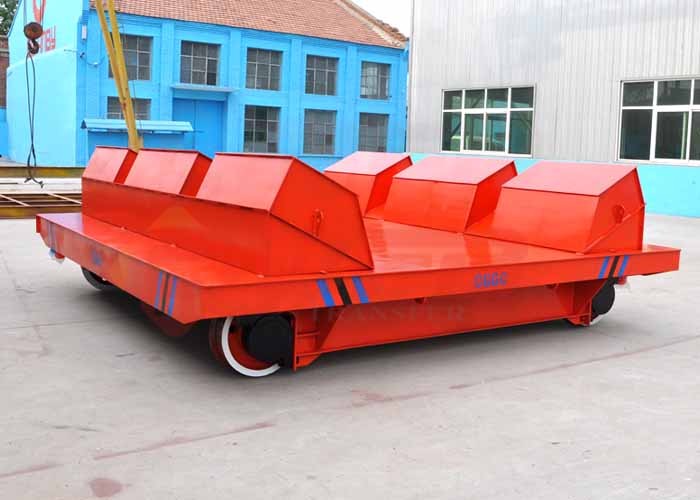

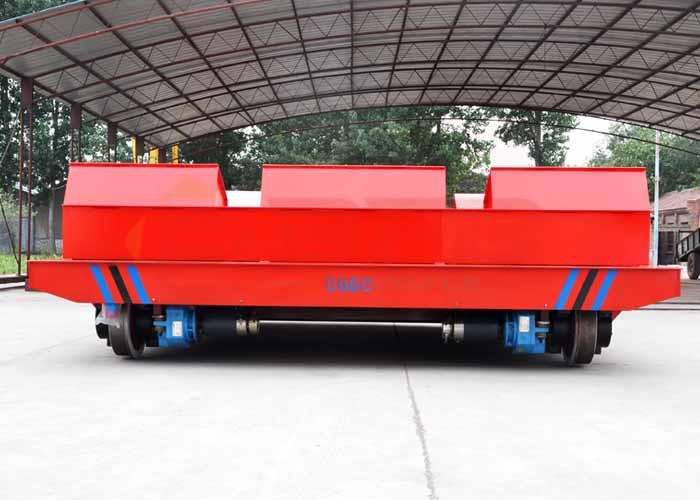

Photo show of coil transfer trailer

Steel Coil Handling Tail Rail Transfer Trailer With V-FrameSteel Coil Handling Tail Rail Transfer Trailer With V-Frame Steel Coil Handling Tail Rail Transfer Trailer With V-Frame Steel Coil Handling Tail Rail Transfer Trailer With V-Frame

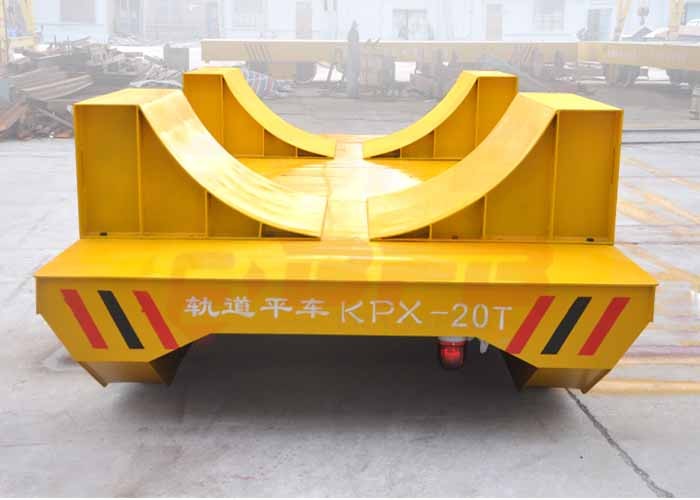

The V-frame device can be added on the platformin order to protect the material falling down from the truck.

The battery power material transfer truck is applied in mold factory to transfer large dimension steel mold /steel structure. The coil transfer trailer is remote control, it is convenient to operate.
The coil transfer trailer is used to transfer steel mold from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.
Steel Coil Handling Tail Rail Transfer Trailer With V-Frame Steel Coil Handling Tail Rail Transfer Trailer With V-Frame

These kind of coil transfer trailer is applied to transfer heavy steel or aluminum ladle. In order to inviod the ladle is damaged from the high temperatuyre, the firebrick can be laid on the platform, It can protect the driving system, such as motor, reducer damaged by high-temperature..

The parameter of coil transfer trailer
Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100
Application of coil transfer trailer

Steel Coil Handling Tail Rail Transfer Trailer With V-Frame
Steel Coil Handling Tail Rail Transfer Trailer With V-Frame

The battery power coil transfer trailer is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).
Assembly line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the cart should be designed with heat exposure proof device, expecially to the battery, motor, reducer and electric appliance.
Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.). The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
BEFANBY Company

Steel Coil Handling Tail Rail Transfer Trailer With V-FrameManufacturingSteel Coil Handling Tail Rail Transfer Trailer With V-Frame

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand

Cutomer from worldwide


Steel Coil Handling Tail Rail Transfer Trailer With V-Frame

Parts of BEFANBY Certificates


Steel Coil Handling Tail Rail Transfer Trailer With V-Frame

Delivery of coil transfer trailer


Steel Coil Handling Tail Rail Transfer Trailer With V-Frame
Generally the coil transfer trailer is delivery through container. If the dimension of the transport is too large,
it can be break up or delivery through flat rack.

BEFANBY advantages
  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
