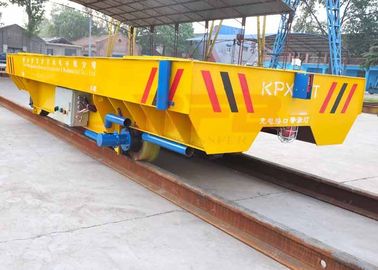

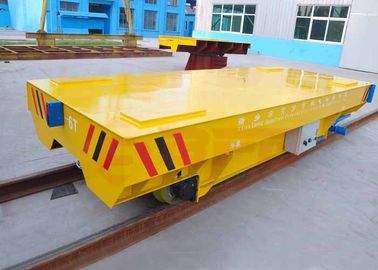

Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-60T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Crossing Rails Workshop Rated Load 60t
Max. Capacity Up To 300ton Car Size 8000*3000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Trailer Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

battery operated cart

,

rail transfer trolley

Leave a Message
Product Description

Cast wheel electric power rail transport vehicle for railway maintemnance

Working principle of rail transport vehicle

KPX rail transport vehicle is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.


Description of boiler factory rail transport vehicle



The frame of rail transport vehicle is welded by high quality steel, with the assistant of running mechanism , gears, DC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.



The main parts of the rail transport vehicle includes motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.



Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance

                  Frame                                            Driving system                               Steel wheel

Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance

Reducer                     Light & sound alarm                            Bumper

Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance



Functions of rail transport vehicle

  • Go forward and backward,
  • Turn left and right,
  • Adjust speed button,
  • Indicator light,
  • Electric indicator light and other control buttons.

Advantages of rail transport vehicle

  • Box girder structure
  • Freely and flexibility
  • can be applied high using frequency condition
  • can be used in high-temperature environment
  • can be used in explosion-proof environment

Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance




The battery power rail transport vehicle is applied in aluminum factory to transfer coils inter-bay.



Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance



The rail transporter vehicle is applied inon railways for train maintain. It also can pull trains freely.



Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance



Besides stright rails, this kind of rail transport vehicle can also be applied on turning rails, arc-shaped rails.



Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance

The rail transport vehicle is applied in steel factory to transfer steel ladle on turning rails.


Technical parameters of rail transport vehicle


Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Delivery of rail transport vehicle


Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance

Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance


Generally the rail transport vehicle is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


ladle car ladle car


Quality control of rail transport vehicle


rail transport trailer




Other product of BEFANBY company



Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance Cast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance



Our company

rail car

Our certificate
Cast Wheel Electric Power Rail Transport Vehicle For Railway MaintemnanceCast Wheel Electric Power Rail Transport Vehicle For Railway MaintemnanceCast Wheel Electric Power Rail Transport Vehicle For Railway Maintemnance

FAQ

  1.  Q: What is the capacity of the rail transport vehicle?                                                             A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

      2. Q: What is the using candition?
          A: The environment temperature should be in level. such as production line

      3. Q: What is the working speed of the rail transport vehicle?
          A: The standard running speed is 0-20m/min.
