on rail electric mechanical low bed trailer for stainless steel tank

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-20t
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Supply Ability 60 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Peoduct Name On Rail Electric Mechanical Low Bed Trailer For Stainless Steel Tank Capacity(t) 20t
Table Size(mm) 5000*3000*600 Running Speed(m/min) 0-25
Running Distance(m) 100 Rail Type P24
Wheel Pressure(KN) 77.7 Rail Gauge(mm) 1435
Wheel Diameter(mm) 300 Wheel Quantity(pcs) 4
Weight(t) 5.9 Certificate CE, SGS, ISO9001, SASO
Package The Whole Material Handling System Is Packed By High Quality Plastic Cloth Color Red, Yellow, Blue
High Light

battery operated cart

,

rail transfer trolley

Leave a Message
Product Description



On rail electric mechanical low bed trailer for stainless steel tank



The low bed trailer for winding machine is running on steel rails or steel squre bars. It is commonly applied to transfer heavy materials between workshops, or from workshop to warehouse. It is used in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.

The power supply of rail material handling system for winding machine can be customized, we can recommend client a suitable type according to their working site, It can be storage battery power, cable drum power, Busbar power, conductor rail power, towed cable power etc.



Advantages of low bed trailer



  • Flexiability and environmental;
  • It can run on S shape rail, arc-shape rail and stright rails.
  • Has no limit on running distance;
  • Has no strict requirement on rail construction;
  • The hydraulic lifting device, V-frame, power roller can be installed on the platform;

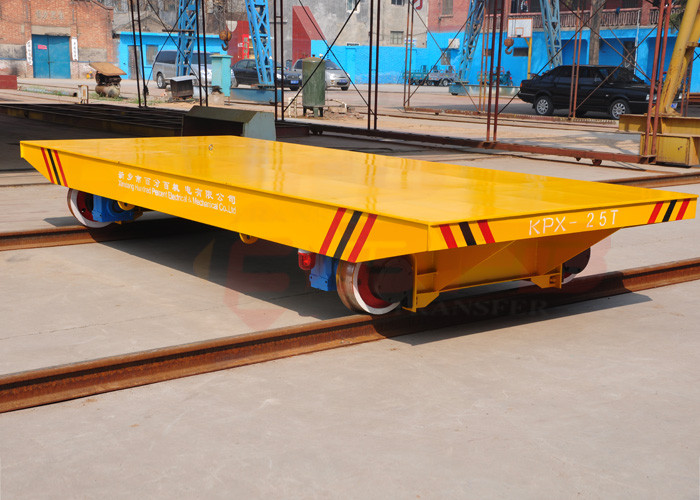

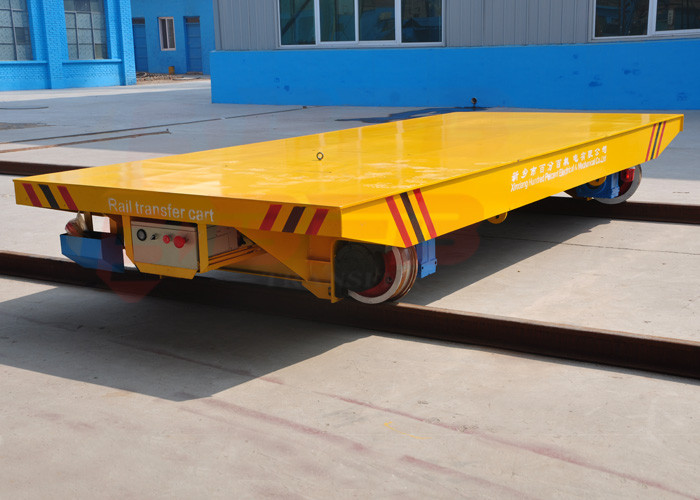

Photo show of low bed trailer



on rail electric mechanical low bed trailer for stainless steel tank 0 on rail electric mechanical low bed trailer for stainless steel tank 1on rail electric mechanical low bed trailer for stainless steel tank 2 on rail electric mechanical low bed trailer for stainless steel tank 3




The battery power low bed trailer for winding machine is applied in mold factory to transfer large dimension steel mold /steel structure.



The rail low bed trailer is remote control, it is convenient to operate. It is used to material handling system for winding machine handling from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.


Main parts of low bed trailer
on rail electric mechanical low bed trailer for stainless steel tank 4



The parameter of low bed trailer

Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of low bed trailer


on rail electric mechanical low bed trailer for stainless steel tank 5 on rail electric mechanical low bed trailer for stainless steel tank 6

on rail electric mechanical low bed trailer for stainless steel tank 7 on rail electric mechanical low bed trailer for stainless steel tank 8

Assembly line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.

Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the cart should be designed with heat exposure proof device, expecially to the battery, motor, reducer and electric appliance.

Ship industry: Due to the large load capacity, the electric flat bed is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.). The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.

BEFANBY Company

on rail electric mechanical low bed trailer for stainless steel tank 9Manufacturingon rail electric mechanical low bed trailer for stainless steel tank 10

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand



Cutomer from worldwide


on rail electric mechanical low bed trailer for stainless steel tank 11

Parts of BEFANBY Certificates


on rail electric mechanical low bed trailer for stainless steel tank 12

Delivery of rail transfer truck


on rail electric mechanical low bed trailer for stainless steel tank 13

Generally the low bed trailer is delivery through container. If the dimension of the transport is too large,it can be break up or delivery through flat rack.



BEFANBY advantages
  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
