20t construction site drilling roll handling railway transfer car

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPC-20T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Mode Busbar Power Application Heavy Industry
Car Size Can Be Customised Load Capacity Up To 300 Ton
Electrical Parts Siemens, Schneider, Nord Saftey Devices Warning Lamp, Siren, Bumper
Exported Countries South Africa, Australia, Syria Product Name 20t Construction Site Drilling Roll Handling Railway Transfer Car
Wheel Diameter(mm) 400 Rail Gauge(mm) 1435
Wheel Quantity 4 Pcs Contact Marketing@bfbhandling.com
High Light

heavy duty cart

,

warehouse handling equipments

Leave a Message
Product Description

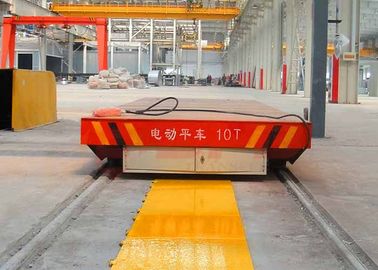

20t construction site drilling roll handling railway transfer car

Working of railway transfer car


This kind of railway transfer car is power by busbar(electric sliding line). It gets power from sliding line durning the cart running. The electric control system of the cart realize it start, stop, go forward and backward. It is suitable to applied in production line or assembly line, to transfer heavy material or parts, the distance is better to less than 50m. It is suitable for assembly line.



20t construction site drilling roll handling railway transfer car 0



Advantages of railway transfer car
  • Box girder structure, not easy to deform
  •
  • simple structure, low cost
  •
  • no strict requires on rails
  •
  • can be applied high using frequency condition
  •
  • can be used in high-temperature environment
  •
  • can be used in explosion-proof environment
Main Parts of railway transfer car

The main parts of the transfer car includes driving system(motot, reducer), cart frame, cast wheels, electric appliance, remote control etc.


railway transfer car20t construction site drilling roll handling railway transfer car 220t construction site drilling roll handling railway transfer car 3

Production of railway transfer car


railway transfer car


Technical parameters of railway transfer car

Model
KPC-2T KPC-10T KPC-20T KPC-30T KPC-50T KPC-63T KPC-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of railway transfer car

20t construction site drilling roll handling railway transfer car 520t construction site drilling roll handling railway transfer car 620t construction site drilling roll handling railway transfer car 7 20t construction site drilling roll handling railway transfer car 8
