30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts

  • 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts
  • 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts
  • 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts
  • 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts
  • 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts
  • 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts
Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPC-30T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Paper Industry Rated Load 30t
Max. Capacity Up To 300ton Car Size 8000*3000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Transport Wagon Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

coil transfer car

,

die transfer cart
Leave a Message
Product Description


30t Automatic paper roller handler rail transport wagon paper industry

Working principle of rail transport wagon


The rail transport wagon is powered by electric busbar (electric sliding line). It gets power from sliding line during the cart running. The electric control system of the cart  realize it start, stop, go forward and backward.



Features of rail transport wagon
  • Simple structure, low cost;
  • Has no strict on rail construction;
  • Suitable to working area with short running distance;
  • Suitable to working area with high using frequency;
  • Has no limit on running distance;
  • Can be applied in high-temperature environment;
  • Box girder structure;
  • Reasonable design, reliable operation;
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Detailed description of the rail transport wagon



This kind of large gauge rail traverser is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.



Production flow of 30t  transport wagon


30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 0





Main parts of transfer wagon



The main parts of the rail transport wagon includes frame, cast wheel, motor and reducer, electric control box, and other safety device.



30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 130T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 230T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 3

                Steel frame                                    Casting wheel                            Light & sound alarm

30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 430T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 530T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 6

           Driving mechanism                                      Reducer                                        Bumper


Technical parameters of rail transport wagon


Model
 KPC-2T KPC-10T KPC-20T KPC-30T KPC-50T KPC-63T KPC-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of crossing rail transport wagon


This kind of transfer wagon is applied in paper industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.



paper coil rail transport wagon paper handling transfer wagon

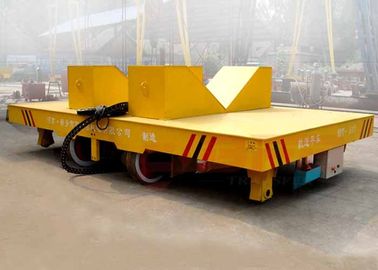

In order to protect security, a V-frame is added on the platform.

30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 9 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 10


Delivery of rail transfer transfer wagon


30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 11 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 12


Generally the rail transfer wagon is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


ladle car ladle car




Customer feedback

 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 15

Quality control of rail transfer table


30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 16



Other rail handling car in BEFANBY company


30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 17 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 18 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 19 30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 20




Our company

30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 21

Our certificate
30T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 2230T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 2330T Automatic Coil Transfer Trolley , Paper Roller Material Transfer Carts 24

FAQ

  1.  Q: What is the capacity of the rail wagon?                                                                          A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

      2. Q: What is the using candition?
         A: The environment temperature should be in level. such as production line

      3. Q: What is the working speed of the ladle car?
          A: The standard running speed is 0-20m/min.
