Large Capacity Double Flanged Rail Wheels , 800mm Crane Wheel Blocks With Shaft
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | Forged wheel |
| Price | Negotiation |
| Packaging Details | The casting crane wheel is packed by plastic , then will be put in wooden crate. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Railway, Rail Cart Or Shipyard | Rated Load | 30T |
|---|---|---|---|
| Max. Capacity | Up To 300ton | Diamater | 800mm |
| Exported Countries | Mexico, Australia, Singapore | Material | Q235 Steel |
| Package | The Casting Crane Wheel Is Packed By Wooden Crate | Delivery Time | 45-60 Days After Received Advamced Payment |
| Payment Terms | T/T, L/C | Port | Qingdao/Tianjin/Shanghai/Ningbo |
| Min. Order | 1 Pcs | ||
| High Light | flanged trolley wheels,cast steel railway wheels |
||
Product Description

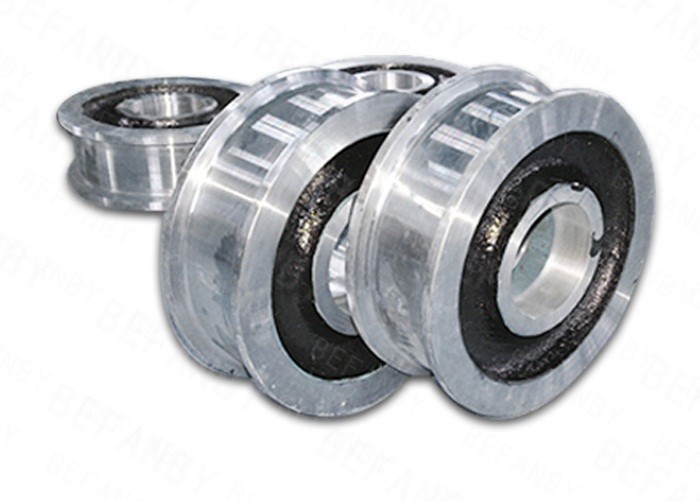

Large capacity 800mm double girder crane wheel block with shaft
Detailed specification of double girder crane wheel block with shaft
- 1. Material: forged steel or forged iron;
- 2. Constitute: two wheels, one axle, four bearings, and other parts;
- 3. Loading capacity: 1-300 tons, can be customized.
- 4. The type of the wheels: single flange wheel, double flange wheel, hollow wheel sets and solid wheel sets;
- 5. The diameter of the wheels: 300mm, 350mm, 400mm, 450mm;500mm; 900mm, etc
Photoes of double girder crane wheel block with shaft
Advantages of double girder crane wheel block with shaft
- Strong production capability
- Powerful rough and finish machining capabilities
- Diameters of 150mm to 900mm
- Available both in casting and forged
Application of double girder crane wheel block with shaft
The crane wheel block with shaft is widely applied together with cranes, rail cart, mill cart, shipyard structure, etc.
The crane wheel block for rail transfer cart Crane wheel block on gantry crane end beam
Steel cast crane wheel block for shipyard Rail crane wheel block for mill cart
Cating crane wheel block for electric crane winch Large diameter crane wheel block for trains
Casting rail forged wheel with axle, the wheel can be single flange type or double flange. It can be customized.
The crane wheel block with shaft is installed on the cranes, for end carriages or main girder. Generally the kind of wheels is double flange.
This kind of crane wheel block with shaft with large wheel pressure is installed on the rail flat car, it is applied to transfer heavy material interbay.
Production of steel rail wheel
Package of steel rail wheel
Generally the package of high performance forged wheel with large wheel pressure has 3 steps, first step is oil coating, then packed the wheels by film plastic, the last step is put in wooden box.
Customer visit in our factory
Quality control of steel rail wheel
BEFANBY company
Our company is a professional manufacturer of material handling equipment including rail car, steerable transfer car, wheel, winch etc.
Our certificate
If you are seeking the handling equipment, maybe our products will provide you new idea.
