Multifunctional Non Magnetic Automated Guided Vehicles For Plant Color Customized
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | $4000-$7000/ Per Set |
| Packaging Details | The automated guided vehicles will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Warranty | 12 Months | Load Capacity | 1-500T |
| Running Speed | 0-20m/min | Running Distance | Unlimited |
| Power Supply | Electric Transport Trolley Platform Warehouse Heavy Duty Material Handling Trolley | Port | Qingdao/Tianjin/Shanghai |
| Application | Industial Field | Advantage | Flexible,turnning Free |
| Operation Method | Hand Pendant + Remote Control | ||
| High Light | powered trolley cart,motorized platform cart |
||
Product Description
BEFANBY new research non magnetic guided automated guided vehicles for plant
1. Introduction of the BEFANBY new research non magnetic guided automated guided vehicles for plant
BEFANBY new research non magnetic guided automated guided vehicles for plant normally applied in warehouse,workshop,plant or factory on the floor, and a certain production line. It could get power from the maintenance free battery or lithium battery. The battery is installed inside. It developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The construction is based on our world renowned agv transfer carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our agv transfer cart is available in a number of configurations specifically designed to suit the needs of our customers.such as,warehouse storage, food or beverage, plastic, pharmaceutical, rubber industry customers etc.
BEFANBY could give some advice according to the automated guided vehicles site . Also give a reasonable solution for every client.
2. Technical Parameter of BEFANBY new research non magnetic guided automated guided vehicles for plant
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Remark | The technical parameter of the automated guided vehicle only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time. | |||||||

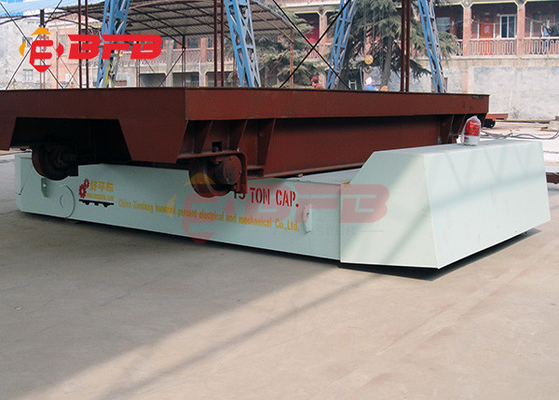

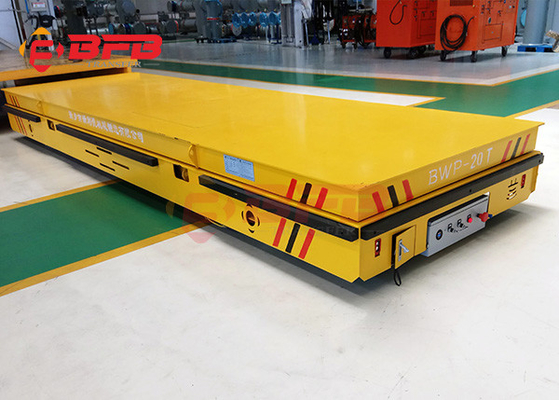

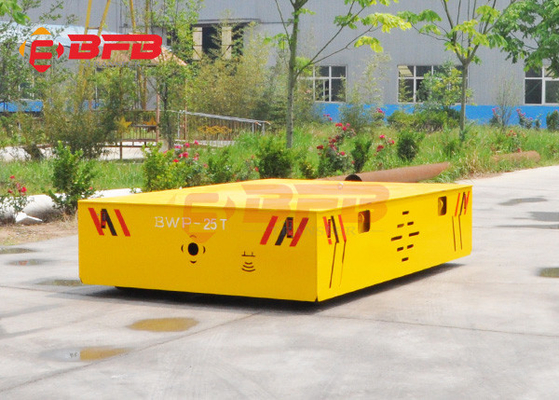

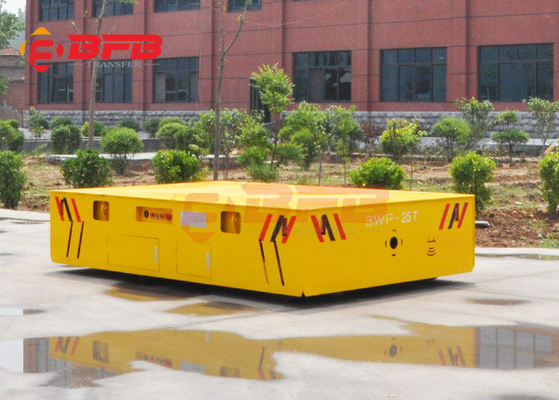

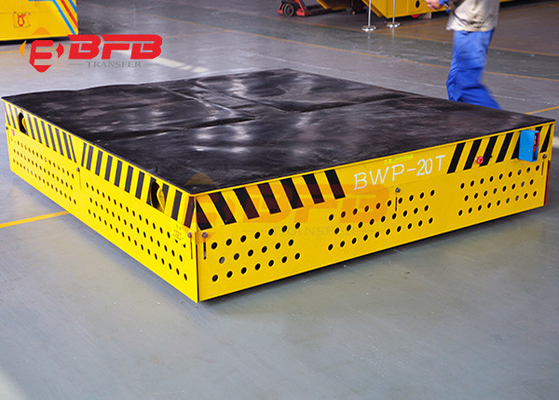

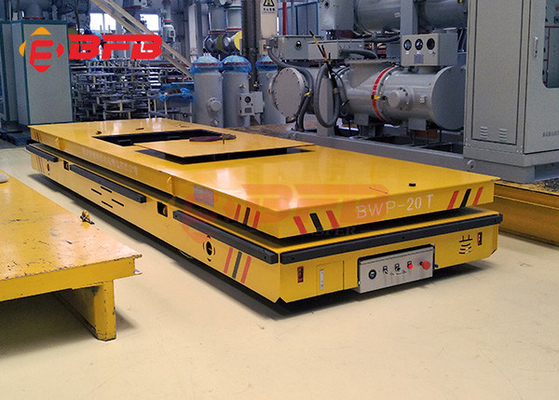

2. Product Details of BEFANBY new research non magnetic guided automated guided vehicles for plant
4. Advantage-BEFANBY new research non magnetic guided automated guided vehicles for plant
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. BEFANBY really care about the safety of everyone involved in the job.
---- Easy for operation These transfer cars are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 500 ton for each car.
Brief introduction----Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd
Our clients
1.Our clients visit our factory
2. Attend the trade fair every year
Brief introduction----BEFANBY'S Supply Scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
How to choose the suitable transfer car?
All of our transfer car, all customized as client's requirement, for choose the most suitable handling trolley,please kindly providing the following information:
· Transfer or handling what material/cargo?
· What capacity do you need?
· This transfer trolley is running on rails or ground(floor)?
· Your requirement for table size:length,width and height?
· How about the running distance?
. How many hours does the transfer car work one day?
