Rail Guided Die Transfer Cart Railway Track Inspection Repairment Maintenance Vehicle
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | $3000-$4000/per set |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 30-40 days as usual delivery,20-30days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rail Guided Motorized Railway Track Inspection Repairment Maintenance Rail Vehicle | Color | Customized |
|---|---|---|---|
| Application | Industrial Field | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Warranty | 12 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-500T |
| Operation Type | Hand Pendant + Remoete Control | Power Supply | Battery Powered |
| High Light | battery operated cart,rail transfer trolley |
||
Product Description

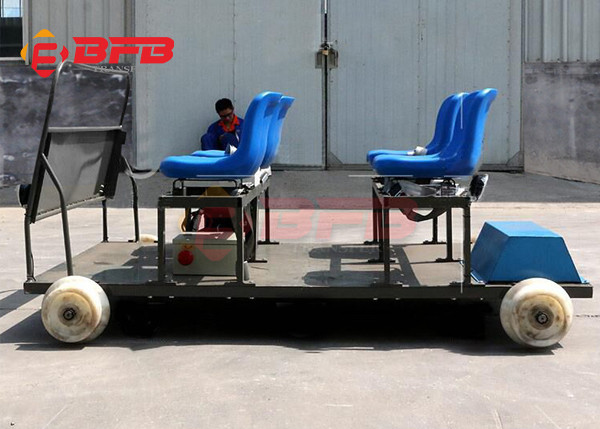

Rail guided motorized railway track inspection repairment maintenance rail vehicle
1. The Introduction of Custom rail guided motorized railway track inspection repairment maintenance rail vehicle
The kinds of maintenance rail vehicle, also known as the track detection flatbed, light rail track inspection vehicle, the subway high-speed rail inspection vehicle, the track electric trolley, the flaw detector is equipped with an electric platform truck. It is designed and manufactured by BEFANBY Company, which is mainly used for orbital inspection instrument carrying, communication cable inspection instrument carrying, railway bureau inspection, sight watching, etc. This car is made of aviation ultra-light aluminum alloy, which makes it easy to move the car up and down the track. This car uses insulated wheels, which are safe and wear-resistant. The two-way car can be flexibly turned on the road.
2. Features of Custom rail guided motorized railway track inspection repairment maintenance rail vehicle
BEFANBY rail maintenance vehicle is a perfect product carefully manufactured by BEFANBY. It adopts lightweight design, aluminum alloy material, and the drive system has passed various ramps such as large ramps, small radius curves, complex turnouts and bad weather conditions. There have been no problems such as derailment, down road, slope slipping, lack of power, etc. The overall design of the drive system is reasonable, which ensures the safety and reliability of the flaw detection work.
3. Details of rail guided motorized railway track inspection repairment maintenance rail vehicle
4. BEFANBY Other Product Application
BEFANBY manufactured the transfer cart not only can transport all kinds of coils, die mold in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
5. Technique Parameter of rail guided motorized railway track inspection repairment maintenance rail vehicle
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
6. BEFANBY Team
BEFANBY always insists that the quality is the first concern, and our products has got favorable comments from customers, and constantly received old customers return orders, whether it is the customer's own use or recommend a friend company, in short, thank you for your trust in our BEFANBY company and support for our products.
7. BEFANBY Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
