Steel Shop Die Handling Trailer 20t Material Moving Carts
| Place of Origin | Xinxiang, Henan |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-20T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Supply Ability | 60 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peoduct Name | Industrail Standards Steel Shop Electric Die Handling Trailer 20t Move On Rails | Capacity(t) | 20t |
|---|---|---|---|
| Table Size(mm) | 4000*2200*600m Customized | Running Speed(m/min) | 0-25 |
| Certificate | CE, SGS, ISO9001, SASO | Package | The Whole Cart Is Packed By High Quality Plastic Cloth |
| Color | Red, Yellow, Blue | Opration Type | Hand Pendant+ Remote Control |
| Warranty | 24 Months | Application | Die Handling, Industrial Standard |
| Rail Type | Customized | Turning | Can Realize |
| High Light | 20t Material Moving Carts,Die Handling Trailer Cart |
||
Product Description
Industrail Standards Steel Shop Electric Die Handling Trailer 20t Move On Rails
This kind of industrail standards steel shop electric die handling trailer 20t move on rails is running on steel rails or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store. The power supply of the rail transfer car can be customized, we can recommend client a suitable type according to their working site, It can be storage battery power, cable drum power, Busbar power, conductor rail power, towed cable power etc.
It is battery power,with advantages of flexiability, it can run on S shape rail, arc-shape rail and stright rails.
Structure of the industrail standards steel shop electric die handling trailer 20t move on rails

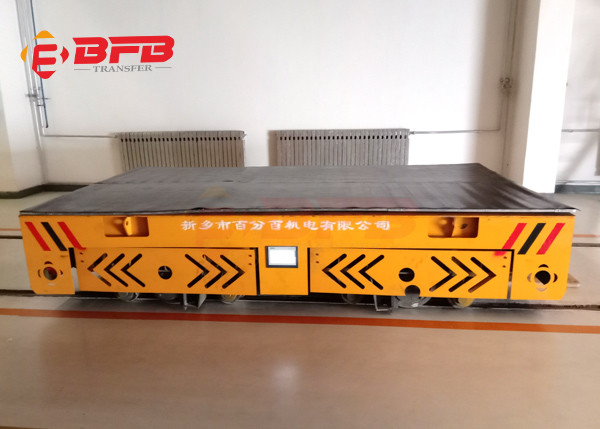

Photo show of industrail standards steel shop electric die handling trailer 20t move on rails

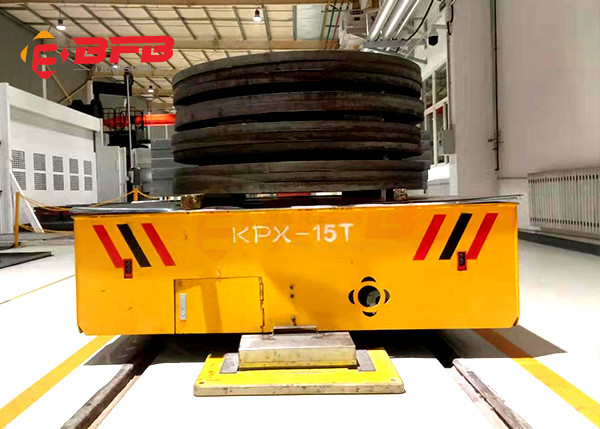

The industrail standards steel shop electric die handling trailer 20t move on rails is applied in metal industry factory to transfer large dimension steel plate, steel structure. The transport bogie is remote control, it is convenient to operate.

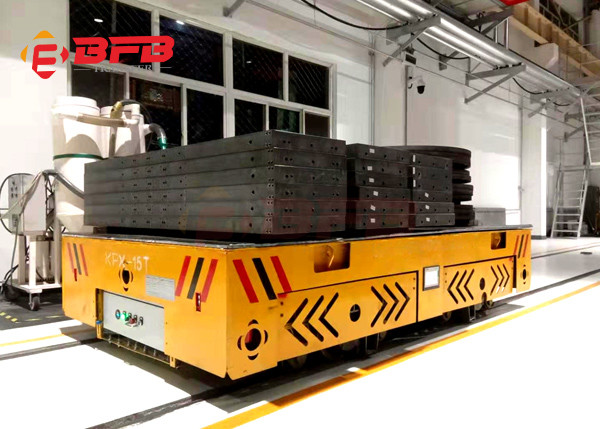

The industrail standards steel shop electric die handling trailer 20t move on rails is used to transfer steel structure from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.
These kind of industrail standards steel shop electric die handling trailer 20t move on rails . In order to inviod the steel coils falling down from the transfer cart, we designed a V-frame. It can protect the coils also the security. We can recommend you the direction of the V-frame according to the coils.
The parameter of industrail standards steel shop electric die handling trailer 20t move on rails
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
The Package of industrail standards steel shop electric die handling trailer 20t move on rails
The industrail standards steel shop electric die handling trailer 20t move on rails body is packed with tarp, the car wheel and parts will be packed with wooden case.
The industrail standards steel shop electric die handling trailer 20t move on rails length is less than 5.9m, the width is less than 2.2m. industrail standards steel shop electric die handling trailer 20t move on rails will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
