20m/Min Dc Motorized Handling Plc 8 Ton Steel Billets Handling Dc Motorized Trolley

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails Color Customized
Application Industrial Field,steel Billiets Handling, Light Industrial Running Speed 0-20m/min
Running Distance Unlimited Warranty 24 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000T
Operation Type Hand Pendant + Remote Control Power Supply Battery Powered
Special Funtion The Plc Control System Is Optional
High Light

Plc 8 Ton Steel Billets

,

Dc Motorized Steel Billets

Leave a Message
Product Description

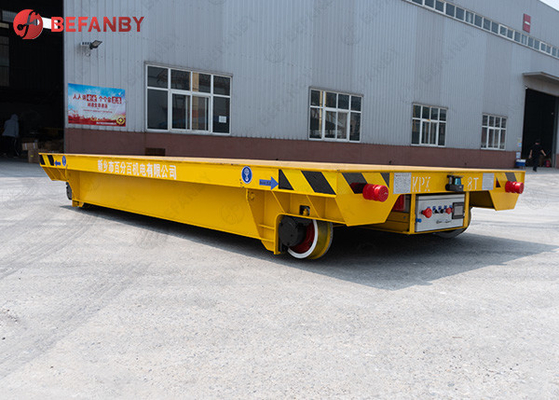

PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails

1. The Working Principle of PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails

This plc 8 ton steel billets handling dc motorized trolley mounted on rails is usually used at ship yard, plant and factory, certain production line. The plc 8 ton steel billets handling dc motorized trolley mounted on rails could get power from outside or from the battery. The plc 8 ton steel billets handling dc motorized trolley mounted on rails was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The plc 8 ton steel billets handling dc motorized trolley mounted on rails construction is based on our world renowned die power line trolleys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our rplc 8 ton steel billets handling dc motorized trolley mounted on rails is available in a number of configurations specifically designed to suit the needs of our customers. and the plc control system s optional as per the working demand.





PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails



2. Attentions of PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails



1) The main source powered of the electric motorized trolley is battery, so it has the limitation of time.

2) The maintenance-free battery is optional as your required;

3) If you want extend working hours, you can keep a stand-by battery;

PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails



PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails



PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails
3 Technical Parameter of PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails

Model KPX-2t KPX-20t KPX-50t KPX-100t KPX-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

NOTES:

  • Flat deck or fixtures for transporting special payload;
  • Custom deck configurations may include lift, tilt, or rotate function;
  • Payload from 1 ton to 300 tons;
  • Fixed speed or variable speed capabilities;
  • On board charging is available if battery drives;
  • With forward or backing driving;
  • Options for automatic control;
  • Available safety equipment includes horn, lights, emergency stop, bumpers and detector.





PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails




5. BEFANBY Company


PLC 8 Ton Steel Billets Handling Dc Motorized Trolley Mounted On Rails


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
