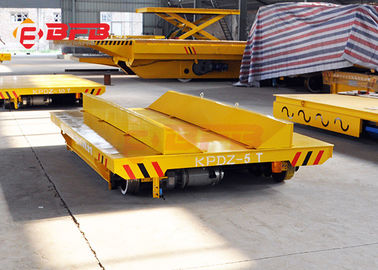

Workshop Light Alarm Q235 25T Rail Coil Transfer Cart

  • Workshop Light Alarm Q235 25T Rail Coil Transfer Cart
  • Workshop Light Alarm Q235 25T Rail Coil Transfer Cart
  • Workshop Light Alarm Q235 25T Rail Coil Transfer Cart
  • Workshop Light Alarm Q235 25T Rail Coil Transfer Cart
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number coil
Minimum Order Quantity 1 set/sets
Packaging Details The transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 800 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 2 Years
Application Steel Coil Transfer Workshop ,production Line, Paper Coil, Industrial Cable Drum Capacity 1-1000 Ton For Coil Transfer Car
Power Supply Battery Power/customized Product Name Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm
Material Q235 Operation Type Hand Pendant + Remote Control
Color Yellow, Gray, Red Or As Your Needs Port Qingdao, Tianjin, Shanghai
Safe Parts Sound And Light Alarm, Lamp, E-stop, Dead Man Stop... Custom Function Hydraulic Lifting Device
High Light

25T Rail Coil Transfer Cart

,

Q235 Coil Transfer Cart

,

Rail Coil Transfer Trolley
Leave a Message
Product Description
Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm



1. Product Profile



Custom 25 ton rail coil transfer trolley with sound and light alarm can be applied in transporting steel coils, aluminum coil, paper coil, roller, oil tank and pipes for plant. This battery operated coil transfer trolley can be designed to be an extremely cost effective, safe and flexible load moving alternative. The V shape/ U shaped supporting and roller can be mounted to avoiding the coil fall from the trolley.



The custom 25 ton rail coil transfer trolley with sound and light alarm is mainly adopted to transport metal coils, pipes, beam, or other round materials. We can design the cart’s capacity, table size, power supply style due to your working condition.









Advantage





1. The V shape supports are available to be equipped on the 25 ton rail coil transfer trolley according to customer’s application requirements.

2. The V shape support of Battery operated steel coil transfer trolley could be removed when not using so that it can be used for other materials.

3. The custom 25 ton coil transfer trolley can realize cargo transfer among crossing rails with two layers body, which also could be used separately.

4. The battery operated steel coil material handling transfer trolley is usually used at the factory, warehouse, plant, workshop, shipbuilding, and construction for high efficient transportation.








Technique Parameter

Model KPX-5t KPX-20t KPX-25t KPX-30t KPX-40t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 5 20 25 30 40 63 80 100 150
Table size Length(L) 3500 4000 4500 4500 5000 5600 6000 6500 10000
Width(W) 2000 2200 2200 2200 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 700 800 900 1200
Wheel Base 2500 2800 3200 3200 3800 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 18
Motor Power 1.2 3 3.5 4 5 8 10 15 15
Battery Capacity 180 180 250 250 300 400 400 440 600
Battery Voltage 36 48 48 48 48 48 72 72 72
Running Time When Full Load 5.4 4 4 3.5 3.6 3 3.6 3.2 2.9
Max Wheel Load 25.8 77.7 94.5 110.4 142.8 221.4 278.4 343.8 265.2
Reference Weight 3.6 5.9 6.5 6.8 7.6 10.8 12.8 14.6 26.8
Recommended Rail Model P18 P24 P38 P38 P43 P50 P50 QU100 QU100



Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm



Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm





2. Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm



Our team



Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm



Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm



You can copy the following options to select your specific requirement for the transfer car to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer car is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The voltage is ( ) V, ( ) HZ, 3 phase.



4. The running time is ( ) hours per day.



5. The running distance is ( ) m per time.



6. The transfer cart runs on the rails or common floor?



7. Whether exist turning?



8. Whether has other special requirement?



What's more if you'd like to learn more avbout BEFANBTY Company, also can click here to learn more.
