Q235 Battery Powered 6T Self Propel Rail Transfer Cart

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The tranfer carriage will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 800 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Application Industrial Field Running Speed 0-20m/min
Running Distance Unlimited Warranty 24 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000 Ton Payload
Operation Type Hand Pendant + Remote Control Power Supply Battery Powered
Advantage More Than 16 Years' Experience For Material Handling Equipment Reaserch
High Light

Self Propel Rail Transfer Cart

,

6T Rail Transfer Cart

,

Q235 Rail Transfer Cart

Leave a Message
Product Description
Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer



The self propel rail transfer cart 6 ton payload battery powered specific carriage manufacturer is a kind of trolley running on track, which can transport heavy workpieces and objects in workshops and factories.


The rail transfer cart is a flat car produced by Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. The rail carriage has a strong weighing capacity and can carry a weight ranging from 1 ton to 1,000 tons payload. The size can be customized according to the customer's working environment requirements custom made.


The self propel rail transfer cart 6 ton payload battery powered specific carriage generally use battery power supply. According to different working environments, there are also low-voltage rail power supply, trolley line power supply, cable power supply and other power supply methods, providing users with multiple options



All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.



Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage ManufacturerSelf Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer



Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer

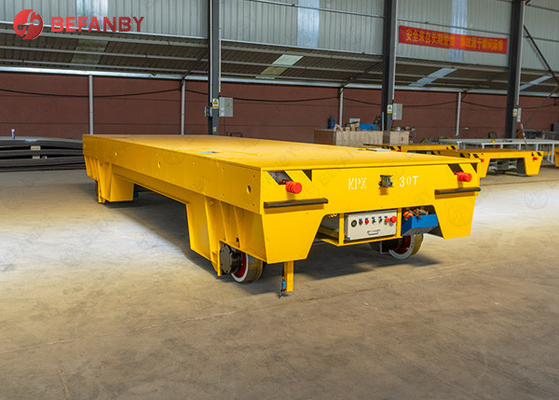

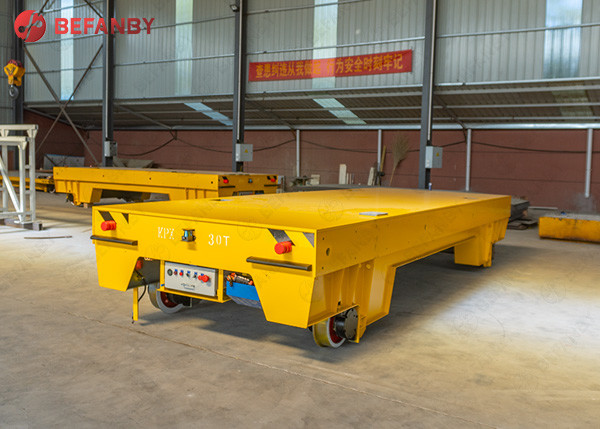

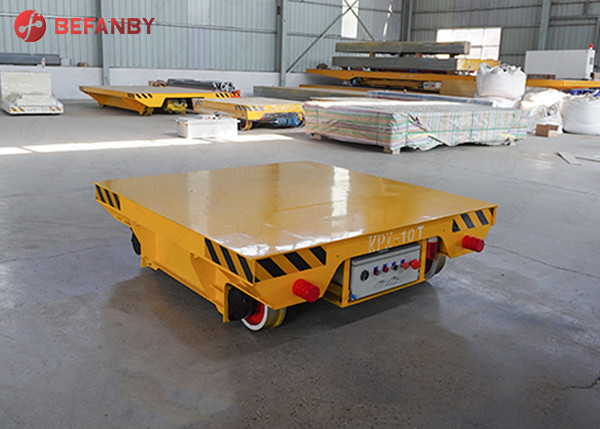

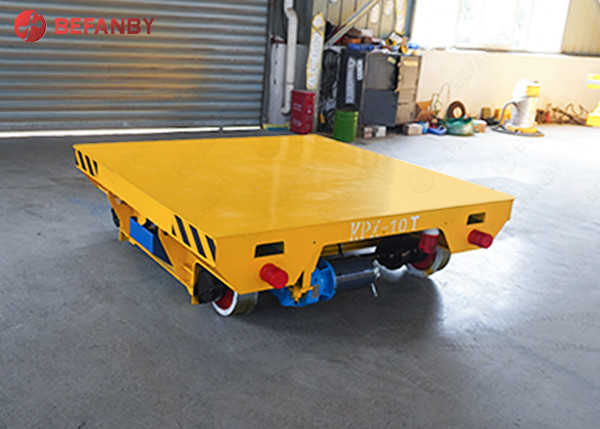

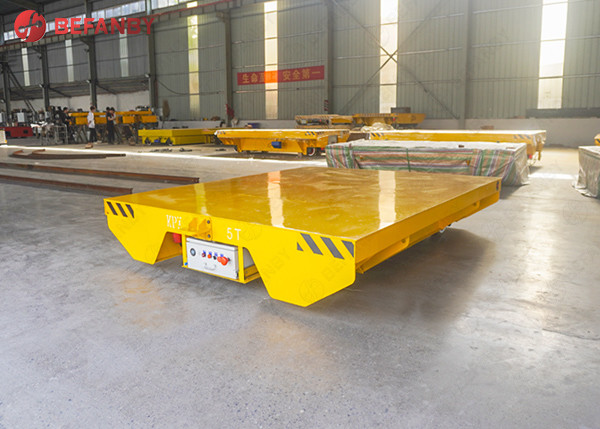

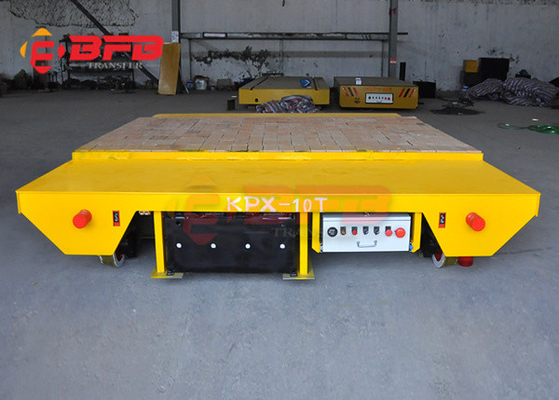

Detailed Images of Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer




Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer




Technique Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8





NOTES:



1. Flat deck or fixtures for handling special payload;


2. Custom platform configurations may include lift, tilt, or rotate function;


3. Payload from 1 ton to 1,000 tons;


4. Fixed speed or variable speed capabilities;


5. On board charging is available if battery powered;


6. With forward or backing driving, turning drive;


7.Options for automatic control;


8. Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage ManufacturerSelf Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage ManufacturerSelf Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer


Our Company


Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer


Self Propel Rail Transfer Cart 6 Ton Payload Battery Powered Specific Carriage Manufacturer


BEFANBY Service
  • The load bearing safety factor of the electric 25 ton transfer cart is no less than 125%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our electric 25 ton transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
