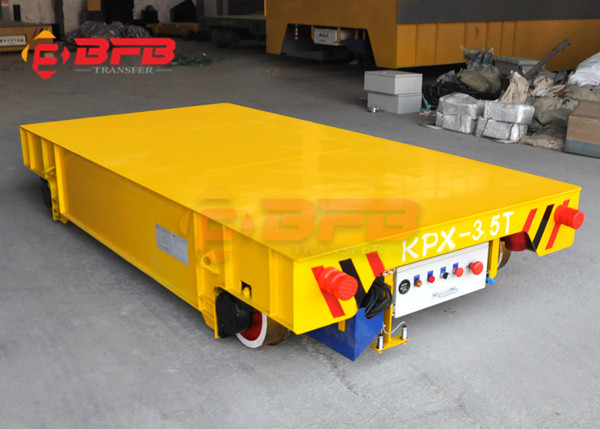

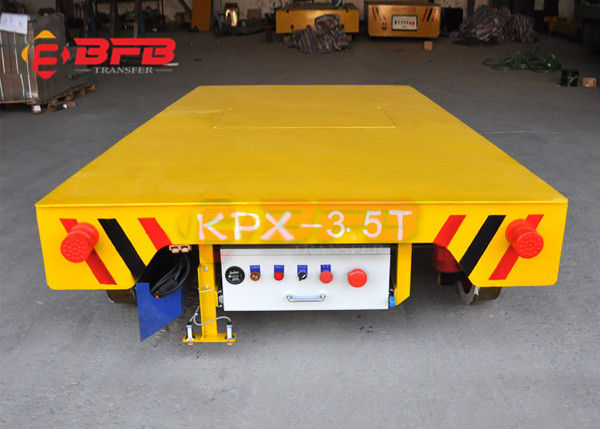

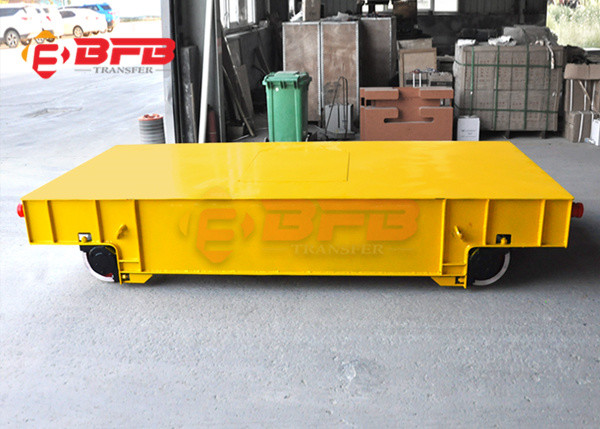

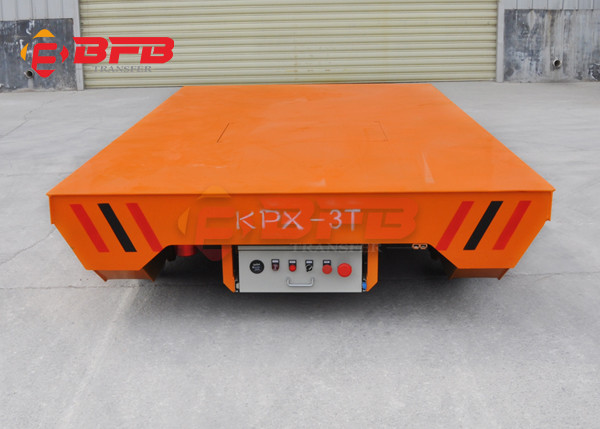

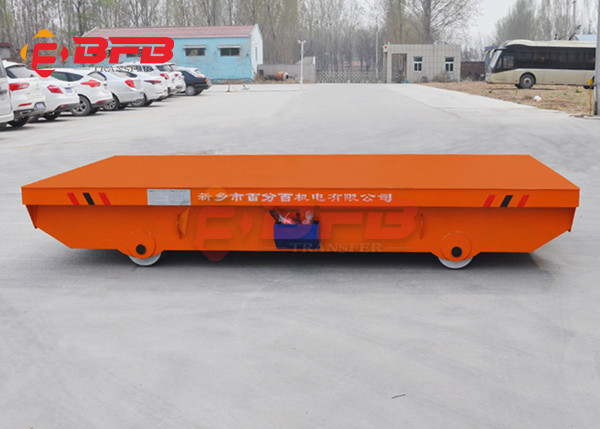

20m/Min Q235 Mould Flatbed Trailer Rail Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Q235 Mould Flatbed Trailer Rail Transfer Cart With Wireless Remote Controller | Color | Customized |
|---|---|---|---|
| Application | Industrial Field,steel Billiets Handling, Light Industrial | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000T |
| Operation Type | Hand Pendant + Remote Control | Power Supply | Battery Powered, Maintenance-free Battery |
| Special Funtion | The Plc Control System Is Optional | ||
| High Light | Flatbed Trailer Rail Transfer Cart,Q235 Rail Transfer Cart,20m/Min Rail Transfer Cart |
||
Product Description
Q235 Mould Flatbed Trailer Rail Transfer Cart With Wireless Remote Controller
1. The Working Principle of Q235 Mould Flatbed Trailer Rail Transfer Cart With Wireless Remote Controller
This q235 mould flatbed trailer rail transfer cart with wireless remote controller is usually used at ship yard, foundry industry, plant and factory, certain production line. The q235 mould flatbed trailer rail transfer cart with wireless remote controller could get power from outside or from the battery. The q235 mould flatbed trailer rail transfer cart with wireless remote controller was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The q235 mould flatbed trailer rail transfer cart with wireless remote controller is based on our world renowned die power line trolleys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our q235 mould flatbed trailer rail transfer cart with wireless remote controller is available in a number of configurations specifically designed to suit the needs of our customers. and the plc control system s optional as per the working demand.
maintenance-free battery fork trucks gauge mm ship yard plc control system maintenance-free battery fork trucks gauge mm ship yard plc control system
2.The Charging Method of Q235 Mould Flatbed Trailer Rail Transfer Cart With Wireless Remote Controller
maintenance-free battery fork trucks gauge mm ship yard plc control system
The automatic charging of battery electric flatbed trailers is divided into offline charging and online charging.
Offline charging is to charge the electric rail transfer cart when it is not working. The rail transfer cart can automatically run to the charging low point for charging, and the charging equipment can be automatically connected. Online charging is the opposite of offline charging. Online charging is automatic charging when the transfer cart is working. When the power of the transfer vehicle is less than 20% of the total amount during normal operation, the transfer vehicle will run to the charging place to charge itself. However, online automatic charging methods are limited to RGV and AGV methods, and manual control of flat cars is not available, so it is also called smart charging.
maintenance-free battery fork trucks gauge mm ship yard plc control system
3 Technical Parameter of Q235 Mould Flatbed Trailer Rail Transfer Cart With Wireless Remote Controller
| Model | KPX-2t | KPX-20t | KPX-50t | KPX-100t | KPX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
|
NOTES:
|
maintenance-free battery fork trucks gauge mm ship yard plc control system
5. BEFANBY Company
maintenance-free battery fork trucks gauge mm ship yard plc control system
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc. maintenance-free battery fork trucks gauge mm ship yard plc control system
