Electric Rail Traverser Battery Transfer Cart For Structural Parts Handling

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS, ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 20-30 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 18 Months
Application Material Handling, Industry Transfer Capacity 1-500 Ton For Transfer Cart
Power Supply Battery Powered Product Name Befanby Electric Rail Traverser Transfer Cart For Structural Parts Handling
Material Q235 Operation Type Hand Pendant+remote Control
Safety Features Warning Alarm,Buffer And End Stop Running Speed 0-20m/min Or As Your Needs
Color Yellow, Gray, Red Or As Your Needs
High Light

Rail Traverser Battery Transfer Cart

,

Q235 Handling Battery Transfer Cart

,

20m/Min Structural Parts Battery Transfer Cart

Leave a Message
Product Description

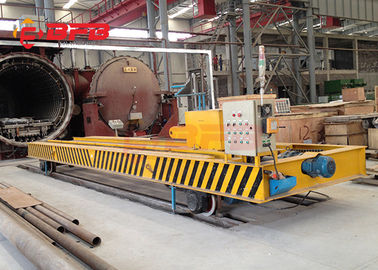

Befanby Electric Rail Traverser Transfer Cart For Structural Parts Handling



The electric rail traverser is divided into two parts, the upper body is the main car, and the lower body is the sub car.the lower main car is generally used for ferry, and it runs on the track with low horizontal position. the main car body platform is equipped with track, which is used for docking with each track on the horizontal ground, so that the goods on the upper sub car can be transported to each track on the horizontal ground.the lower main car can choose to run horizontally or vertically according to the actual situation, and can also be designed as three or more layers according to the situation.

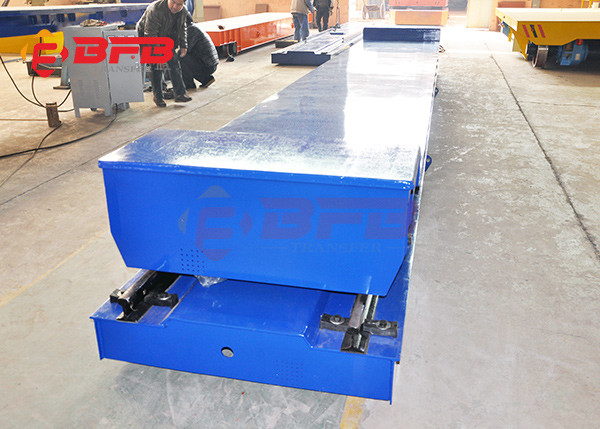

Befanby Electric Rail Traverser Transfer Cart For Structural Parts Handling



The battery powered rail traverser is a good choice if meeting the following features:


1.The running distance is not limited for the battery powered rail transfer cart
2.Low using frequency(The spare battery can be provided if higher using frequency)
3.Despite of turning or going straight, the rail transfer cart can realize
4.Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer cart can realize. Heavy duty transfer electric battery power railroad carts
5.Dimensions,capacity, loading platform superstructure, speed and many others special funcition can be customized as per client request Heavy



Befanby Electric Rail Traverser Transfer Cart For Structural Parts Handling









Befanby Electric Rail Traverser Transfer Cart For Structural Parts Handling





rail transfer cartrailway traverserrail traverser






Character Showing of battery powered rail traverser



1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500 ton
3. Safe parts are installed in the railroad cart(warning light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment



rail traverser transfer cart


Working Principle of battery powered rail traverser

The kinds of electric rail traverser is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.

electric rail traversers

Technique Parameter of Befanby Electric Rail Traverser Transfer Cart For Structural Parts Handling



Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing of electric battery operated motorized transfer cart China factory





Packing& Delivery of electric Industrial Usage Motorized Transfer Cart china factory

rail transfer cartelectric traverser




Our Company----BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.





You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer cart is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The voltage is ( ) V, ( ) HZ, 3 phase.



4. The running time is ( ) hours per day.



5. The running distance is ( ) m per time.



6. The transfer cart runs on the rails or common floor?



7. Whether exist turning?



8. Whether has other special requirement?
