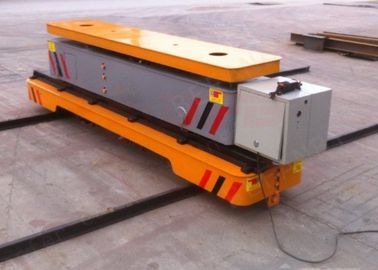

Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform
 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

Large Image :  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Get Best Price

Product Details:

Place of Origin: Xinxiang
Brand Name: BEFANBY
Certification: CE,SGS,ISO9001
Model Number: KPX-10T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time: 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms: 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability: 600 sets one year
Minimum Order Quantity: 1 SET
Shipment Port: Qingdao/Tianjin/Shanghai
Detailed Product Description
Application: Production Line Or Metal Industry Rated Load: 20t
Max. Capacity: Up To 300ton Car Size: 8000*3000*500mm
Electrical Equipment: Siemens, Schneider, Nord Exported Countries: Mexico, Australia, Singapore
Material: Q235 Steel Wheel Quantity: 4 Pcs
Package: The Whole Aluminum Rail Vehicle Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time: 45-60 Days After Received Advamced Payment
Payment Terms: T/T, L/C Port: Qingdao/Tianjin/Shanghai/Ningbo
High Light:

hydraulic scissor lift trolley

,

warehouse carts material handling equipment



gearmotor driven track transfer vehicle with dumping platform hydraulic lifting

Working principle of track transfer vehicle


The track transfer vehicle is powered by electric busbar (electric sliding line). It gets power from sliding line during the cart running. The electric control system of the cart  realize it start, stop, go forward and backward.



 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 0  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 1

 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 2  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 3





Features of track transfer vehicle
  • Simple structure, low cost;
  • Has no strict on rail construction;
  • Suitable to working area with short running distance;
  • Suitable to working area with high using frequency;
  • Has no limit on running distance;
  • Can be applied in high-temperature environment;
  • Box girder structure;
  • Reasonable design, reliable operation;
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Detailed description of track transfer vehicle



This kind of track transfer vehicle is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.



Production flow of track transfer vehicle


 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 4





Main parts of track transfer vihicle



The main parts of  track transfer vehicle includes frame, cast wheel, motor and reducer, electric control box, and other safety device.



 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 5 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 6 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 7

                Steel frame                                    Casting wheel                            Light & sound alarm

 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 8 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 9 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 10

           Driving mechanism                                      Reducer                                        Bumper


Technical parameters of track transfer vehicle


Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of  track transfer vehicle


This kind of track transfer vehicle is applied in metal industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.



 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 11  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 11





In order to protect security, a V-frame is added on the platform.



 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 11  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 14


Delivery of crane tracks trailer


 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 15  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 16


Generally the track transfer vehicle is delivery through container, but if the platform is too large, it can be delivery through frame rack.

Customer visit in our factory


ladle car ladle car




Customer feedback

  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 19

Quality control of rail transfer table


 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 20



Other rail handling car in BEFANBY company


 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 21  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 22  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 23  Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 24




Our company

 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 25

Our certificate
 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 26 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 27 Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform 28

FAQ

  1. Q: What is the capacity of track transfer vehicle?                                                                       A: The capacity can be customized, the max. Load capacity can reach to 300 tons.
  2. Q: What is the using candition                                                                                                  A: The environment temperature should be in level. such as production line
  3. Q: What is the working speed of the ladle car?                                                                       A: The standard running speed is 0-20m/min.
