Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer

China Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer supplier
Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer supplier Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer supplier Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer supplier

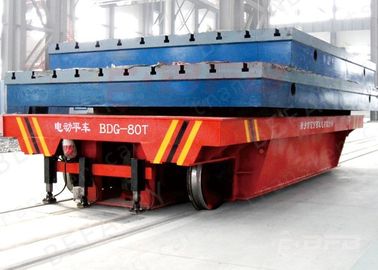

Large Image :  Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer

Product Details:

Place of Origin: Henan, China
Brand Name: BEFANBY
Certification: CE,SGS,ISO9001
Model Number: KPD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/sets
Price: Negotiation
Packaging Details: Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time: 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600 set/sets per year
Contact Now
Detailed Product Description
Material: Q235 Running Speed: 0-20m/min
Running Distance: According To Customers'demand Warranty: 12 Months
Load Capacity: 1-300T Application: Industrial Field
Port: Qingdao/Tianjin/Shanghai Color: Customized


Large Load Bearing Machine Towing Carriage Rail Flat Cart


KPD series' rail transfer cart is powered by low voltage electricity from railways, the kind of rail cart is one of the most convenient and it often can be widely used in the industry field an so on. Of course,compaired other flat cart,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the flat cart have, why we disign is that its convenient (only rails needed) and its simple operation. About us, Our company have professional team and utilize more advanced technique to make it , and it has been a long year to manufacture it attentively.Simutaneously,it will be more easy and flexible.



Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer


Working Principle


KPDZ rail transfer cart, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.





Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer


Feature



  • Anti-high temperature
  • Safe devices are installed(alarm light)
  • Customization can be supported
  • If large capacity, dual drive can be installed, and the largest capacity can reach to 300T
  • China manufacturing
  • It can be used in Towing no power cart
  • Apply to various occasions
  • safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
  • Low voltage, long lifetime
  • The running distance is not limited.
  • when the running distance is more than 70m, it is better to increase the transformers to make up for the voltage which as been lowed.



Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer


Technique Parameter

Model KPDZ-2t KPDZ-5t KPDZ-10t KPDZ-16t KPDZ-20t KPDZ-25t KPDZ-30t KPDZ-40t KPDZ-50t KPDZ-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

Brief Introduction----BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer



Why Choose Us


Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer


Processing Line

Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer

Transportation Showing


Large Load Bearing Rail Transfer Cart Q235 Motorized Rail Flat Trailer



Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

How to choose suitable transfer trolley?

All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley,please kindly providing the following information:
  • Transfer or handling what material/cargo?
  • What capacity do you need?
  • This trasnfer trolley is running on rails or ground(floor)?
  • Your requirment for table size:length,width and height?
  • How about the running distance?
  • How many working hours in per day?
Our After Service
  • Our commitment:
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
