Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie

Certification
Good quality Trackless Transfer Cart for sales
Good quality Trackless Transfer Cart for sales
You really are a 5 stars company. hope i can be a five stars client!

—— Ceyhan

It is Raihan from BD. 10 sets transfer cart has been debugged well. Thanks for careful and professional technique guidance in our factory. Hope everything can goes well and expect to next wonderful cooperation with you!

—— Raihan

Hi, it is my first time to come to China and visit the factory twice in one year, the excellent service moved me again and again and share many interesting things with me. And the item has started worked in our factory, glad to make cooperation with you.

—— Mohammed

Super-wide transfer cart has worked in our factory about 2 years, the quality is good, they gave us professional and warm-hearted guidance whenever we meet some troubles. Good sale service.and the transfer cart promote the working efficiency and save the labor power.

—— Francois

I'm Online Chat Now

Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie

China Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier
Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie supplier

Large Image :  Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie

Product Details:

Place of Origin: Henan, China
Brand Name: BEFANBY
Certification: CE, SGS , ISO9001
Model Number: KPC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/sets
Price: Negotiation
Packaging Details: Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time: 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600set/sets, per year
Contact Now
Detailed Product Description
Material: Q235 Power Supply: Sliding Line
Color: Customized Running Speed: 0-20m/min
Running Distance: According To Customers' Demand Load Capacity: 1-300T
Warranty: 12 Months Port: Qingdao/Tianjin/Shanghai

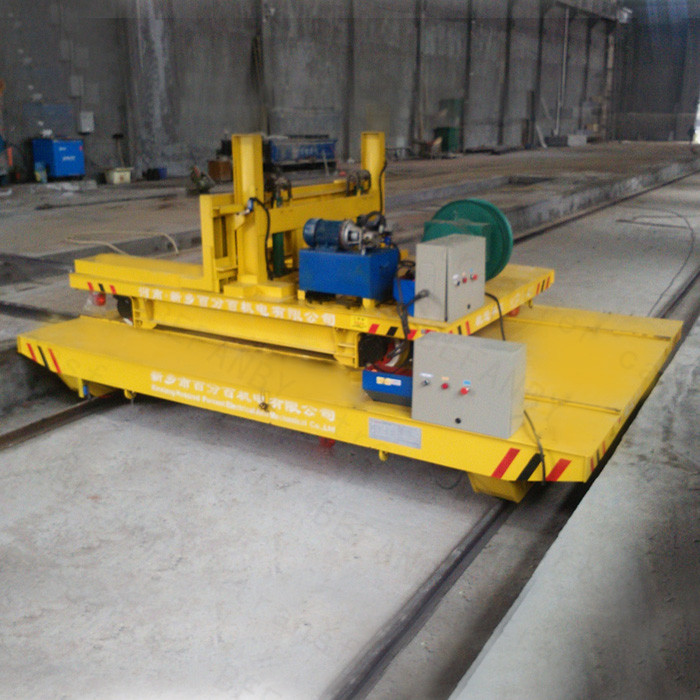

Anti-high Temperature Busbar Powered Heavy Duty Cross Bay Ferry Bogie

Brief Introduction

KPC series' busbar powered  cross bay ferry bogie, the kind of  transfer cart  is powered by sliding wire,the cart above the ferry cart is a common rail cart customized as per customers' demand. you can put the sliding line in the hole, if your cart approachs to the wall ,the sliding wire also can be fixed on the wall ,what we do not only can save the space but could reduce the impair for the ground.Of cource ,it can be custimized according to your demand. due to its power supply,it is not hard to explain that it is only suitable to transportation of short distance.

Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie





Character Showing



  • Heat-resist
  • Safe devices are installed
  • Customization can be supported
  • Proximity switch can be installed to make the cart stop in a programmed stop
  • It can be used in storage warehouse with short distance and low cost
  • Easy operation
  • Low price
  • Convenient Operation
  • Simple structure
  • High frequency
  • No strict requirement of rails
  • The sliding wire is limited by the position,it can be installed between the two rails ,The hole should be digged or it can also be placed in the channel outside the track.
  • In order to the safety and convennience, the border should be added on the channel.
  • ...



Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie

Working Principle----  KPC Powered Transfer Bogie

KPC Series' busbar powered transfer bogie----its conducts AC380v slinding line directly into the AC electrical control system of the electric vehicle to let it start, stop, go forward backforward and so on. The trailer gets power from the slider of the safe sliding line which is moved by the carts running.The operation system is low voltage 36V power.


Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie


Technique Parameter

Model KPC-2t KPC-5t KPC-10t KPC-16t KPC-20t KPC-25t KPC-30t KPC-40t KPC-50t KPC-63t KPC-80t KPC-100t KPC-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing Line


Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie


Packing & Delivery


Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie



Brief Introduction

About Us----BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie


Our Customer


Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie


Why Choose Us?


Anti High Temperature Busbar Powered Transfer Cart Heavy Duty Cross Bay Ferry Bogie


Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

Our After service
  • Our commitment:
  • 1> The load bearing safety factor of the trolley is no less than 120%.
  • 2> Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 3> 16 hours engineering service and 24 hours internet service for our customers
  • 4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • 5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
