Metal Factory 25t Electric Steel Coil Transfer Trolley
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPJ |
| Minimum Order Quantity | 1 set/sets |
| Price | $3000-$6000/per set |
| Packaging Details | The steerable coil cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | 1-1500T | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Power Supply | Cable Reel Power |
| High Light | Electric Coil Transfer Trolley,25t Coil Transfer Trolley,Metal Factory Electric Transfer Cart 20m/Min |
||
Product Description
Metal Factory 25t Electric Steel Coil Transfer Trolley
Product Description

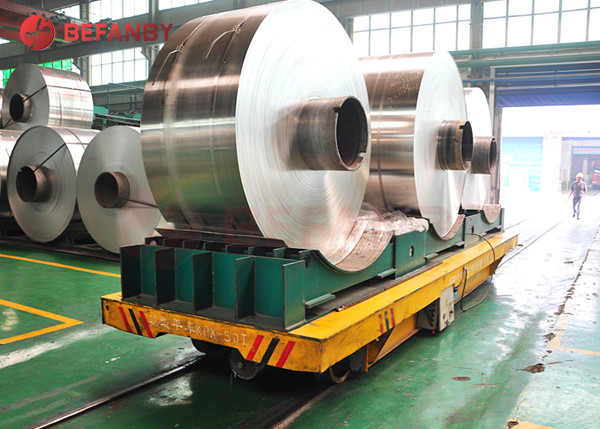

Coil transfer cart are often used in many factories to transport steel coils, copper coils, aluminum coils and other coils that are easy to fall. The structure of the flat cart is the same as the general electric transfer carts, but the V-shaped or U-shaped bracket is installed on the table of the flat cart, which can be stably placed on the electric cart to avoid falling goods.
According to the size of the workpiece to be moved and the number of single transportation, we will determine the distance and number of V-brackets. The V/U bracket of the coil cart can choose adjustable distance V frame and fixed V frame. The user informs us of the dimensions of the workpiece, and our technicians can design a solution to meet the user's requirements.
Product Details
Product Parameter
| Model | KPJ-2T | KPJ-5T | KPJ-10T | KPJ-16T | KPJ-20T | KPJ-25T | KPJ-30T | KPJ-40T | KPJ-50T | KPJ-63T | KPJ-80T | KPJ-100T | KPX-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application
Product Feature
Delivery
Company Profile
What's more, if you'd like to learn more about BEFANBY, please click here or inquired us
Tag: Steerable transfer car, Heavy load transfer car
