Motorized Electric Rail Transfer Coil Moving Trolley
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPJ |
| Minimum Order Quantity | 1 set/sets |
| Price | $3000-$6000/per set |
| Packaging Details | The coil moving trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | 1-1500T | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Power Supply | Cable Reel Power |
| High Light | Electric Rail Transfer Coil Moving Trolley,Motorized Rail Coil Transfer Cart,20m/min Transfer Coil Moving Trolley |
||
Product Description

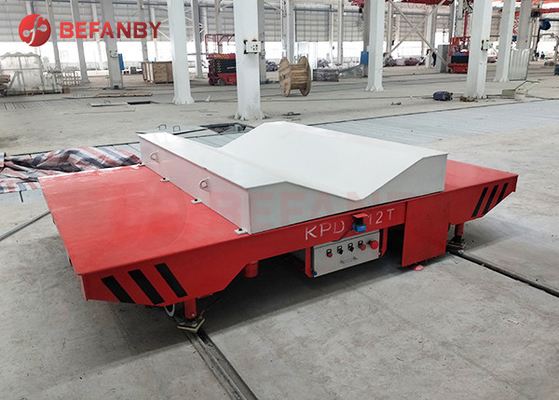

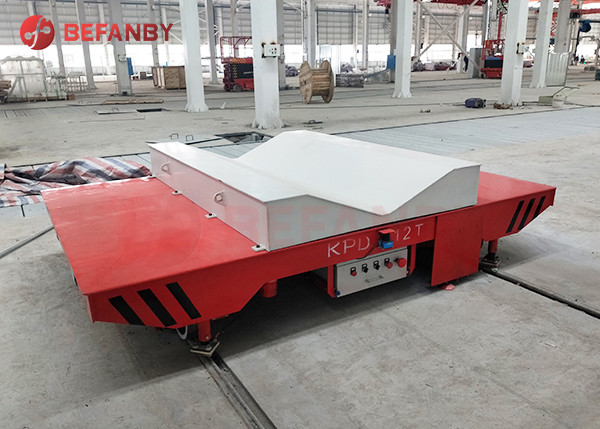

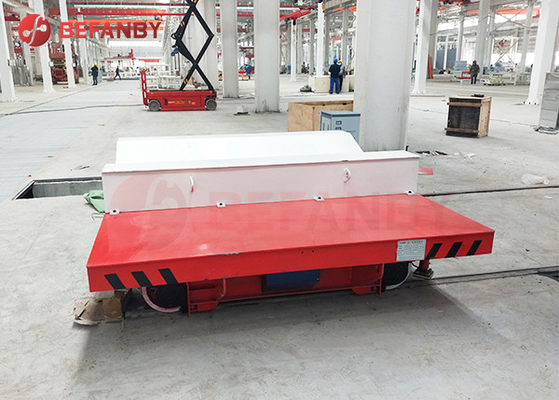

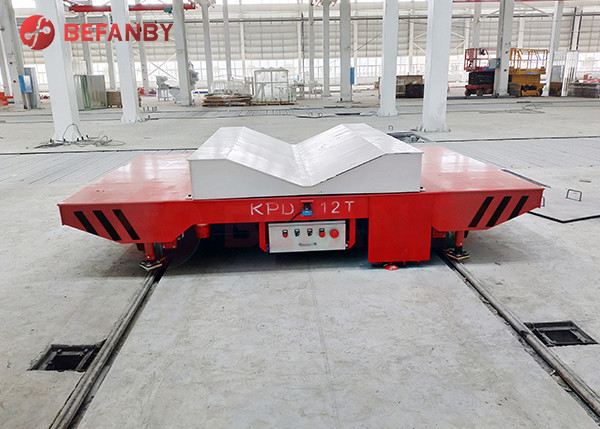

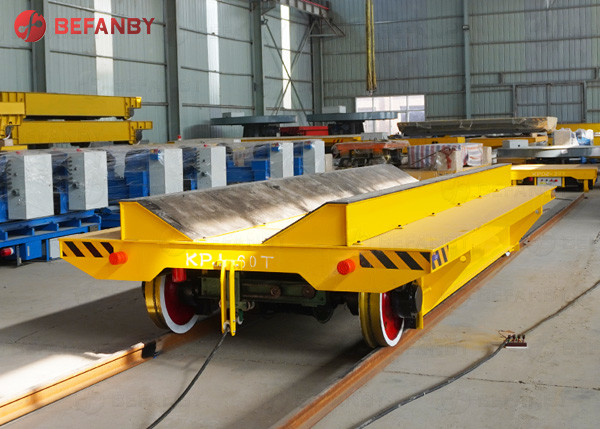

Motorized Electric Rail Transfer Coil Moving Trolley
Product Description Of Motorized Electric Rail Transfer Coil Moving Trolley
Coil moving trolley is a device specially designed for the transport of goods. They are commonly used to transport heavy coils from one workstation to another. In order to effectively manage and optimize the internal logistics of the plant, the rail transportation system is widely used.
In the factory production process, coil is a common kind of goods. Because it is easy to roll and heavy, it is usually necessary to use mechanical equipment for handling. A coil moving trolley is a device that is well suited to this task, running along tracks within the plant to enable the rapid movement of coils.
Compared with the traditional manual handling, the coil transport trolley has obvious advantages. First of all, they are able to bear a large load, can handle heavy coil and maintain stability. Secondly, they reduce the possibility of human error and improve the safety and efficiency of transportation by precisely locating rail transportation. In addition, coil carriers are often equipped with advanced sensors and control systems that enable optimization of the transportation process.
In the factory, the transport path of the coil is usually planned and designed in advance. According to the actual needs, different types of track systems can be designed, including straight track, curve, fork and so on. The layout of the track system needs to take into account factors such as the distance between workstations, the size and weight of the coils to ensure smooth and safe transportation. Through reasonable planning of the track system, the transportation time of coil can be greatly shortened, which brings great benefits to the whole production process.
In addition to the track system, the coil moving trolley can also be equipped with other ancillary equipment to enhance its functionality. For example, some coil transporters can be fitted with lifts to transfer coils from one layer in the track system to another. There are also some transport vehicles with automatic curve adjustment function, can adjust the direction of travel according to the actual road conditions, to ensure that the coil can smoothly through the narrow channel.
Coil moving trolley improve the efficiency of logistics management, reduce labor costs and transportation time. Through the rational planning and design of the track system, the transport process of the coil is safer, more stable and more efficient. The use of coil transport vehicles in factories can bring considerable economic and production benefits.
Product Details Of Motorized Electric Rail Transfer Coil Moving Trolley
Product Parameter Of Motorized Electric Rail Transfer Coil Moving Trolley
| Model | KPJ-2T | KPJ-5T | KPJ-10T | KPJ-16T | KPJ-20T | KPJ-25T | KPJ-30T | KPJ-40T | KPJ-50T | KPJ-63T | KPJ-80T | KPJ-100T | KPX-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application
Product Feature
After-Sales Service
Delivery
Company Profile
What's more, if you'd like to learn more about BEFANBY, please click here or inquired us
Tag: Steerable transfer car, Heavy load transfer car
