Heavy Load 100t With Weighting Device Electrical Road-rail Tractor
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Aerial Working,factory,workshop,construction Site |
| Materials | Steel | ||

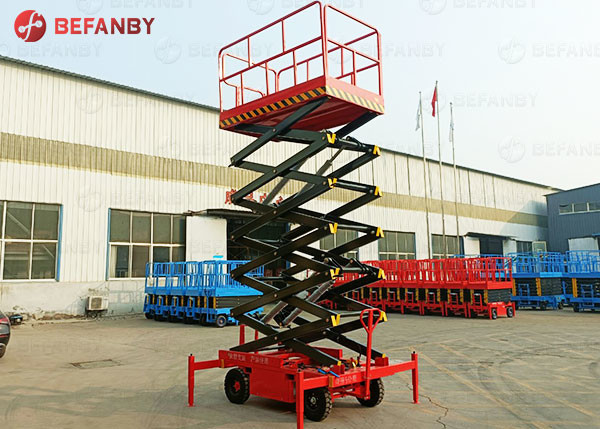

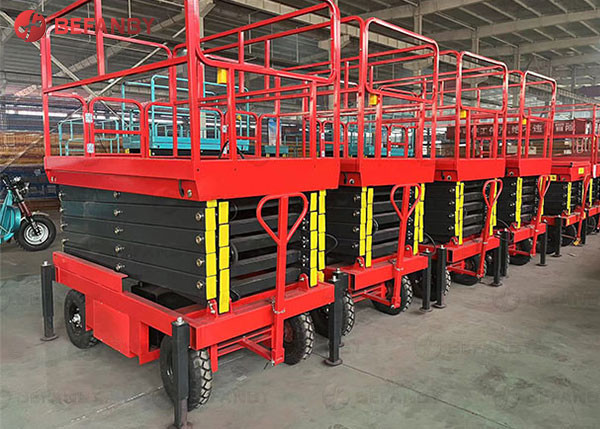

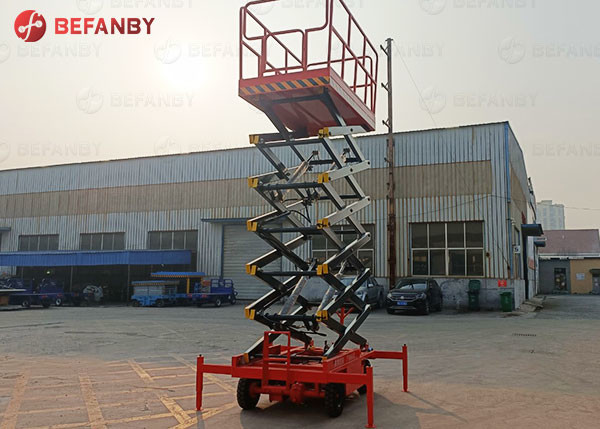

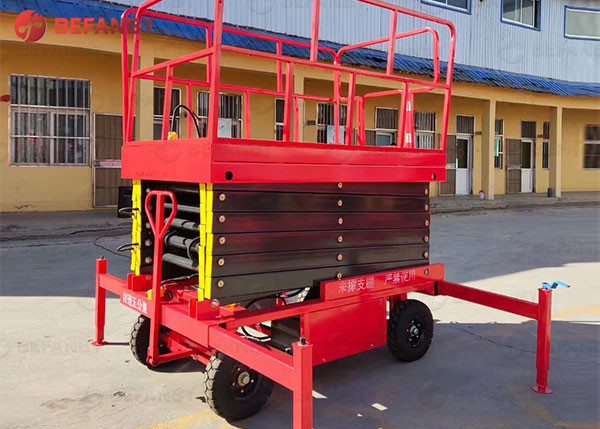

| Highlight | Aerial Working Movable Lift Platform,Towed Scissor Movable Lift Platform,18m Scissor Lifting Platform |
||
Product Description

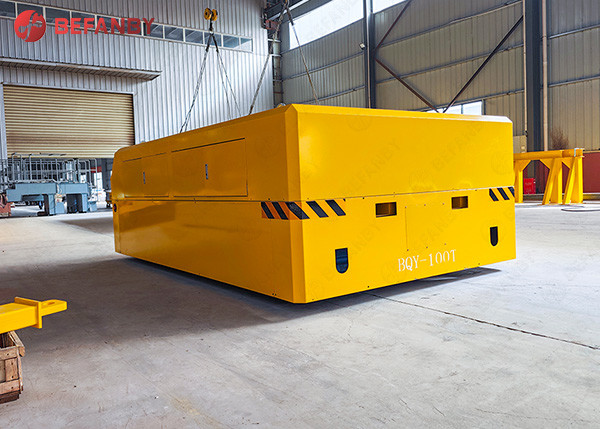

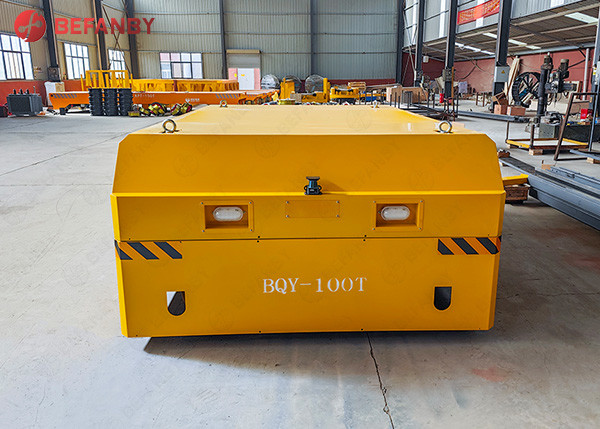

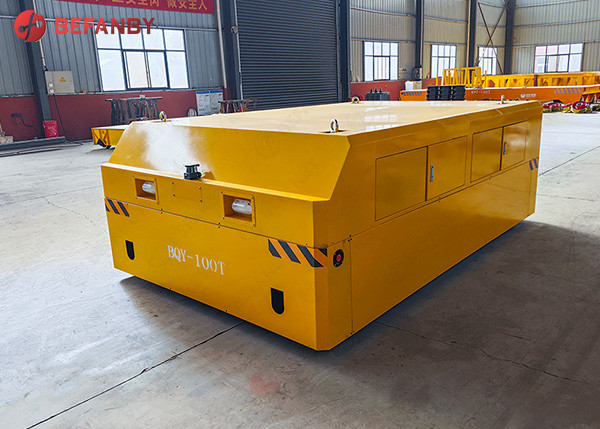

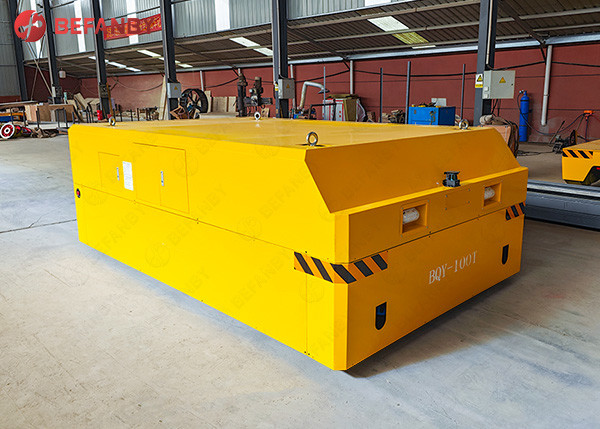

Heavy Load 100t With Weighting Device Electrical Road-rail Tractor
Product Description
The dual-purpose rail tractor is a heavy-duty traction vehicle capable of operating both indoors and outdoors in factories and on rails. It can flexibly operate on ordinary factory roads and smoothly enter rails, enabling seamless transportation within and outside the factory.
Equipped with a high-power drive system and a dedicated traction mechanism, the vehicle boasts robust traction performance, capable of reliably towing material transport trucks or flatbed trucks carrying approximately 100 tons. The vehicle's welded structure is constructed of high-strength steel, offering excellent durability and impact resistance, ensuring smooth and reliable operation even under heavy loads.
The dual-purpose rail tractor uses a switching mechanism to switch between road and rail wheels, offering easy operation and strong adaptability. Whether in steel mills, ports, mining areas, or other locations, this equipment efficiently handles heavy-load material hauling.
Shipping
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Product Feature
Support Customized
The dual-purpose rail tractor can be customized to meet the user's specific operating conditions. Load capacity, vehicle dimensions, and drive type (electric or hybrid) are all flexibly selectable. Furthermore, it can be equipped with wireless remote control systems, video surveillance, explosion-proof protection, and intelligent dispatching interfaces to meet the safety standards and intelligent production needs of different companies. This customized design ensures efficient and safe operation in a variety of challenging environments, providing customers with transportation solutions that best suit their production processes.
