Professional Flexible Rotation Docking Turntable Transfer Carts
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BZP |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Aerial Working,factory,workshop,construction Site |
| Materials | Steel | ||
| Highlight | Folded Drive Mode Lift Tables,Movable Electric Lift Tables |
||
Product Description

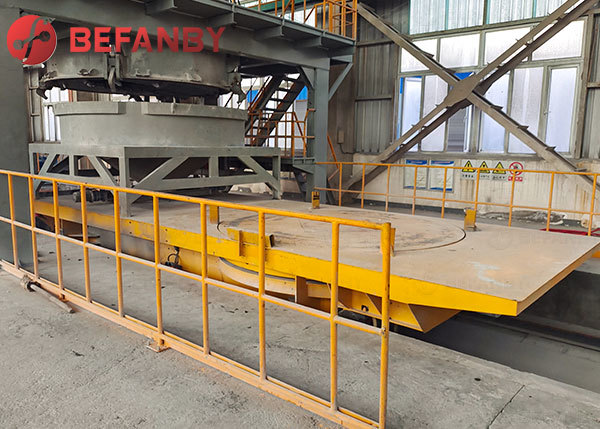

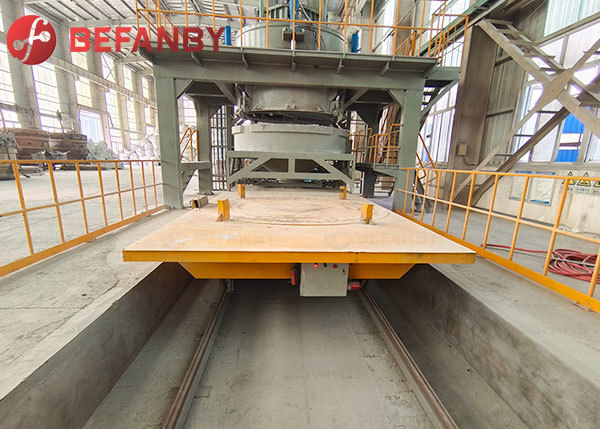

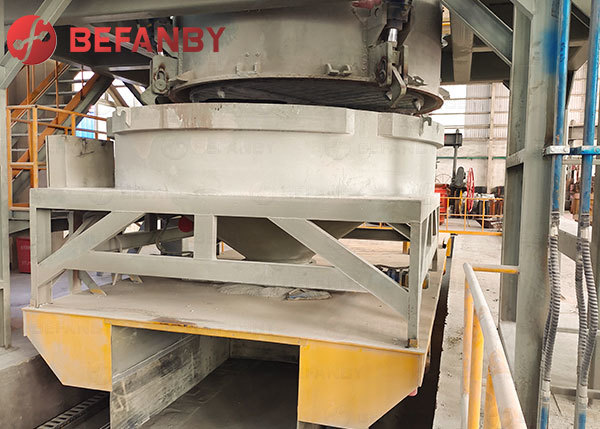

Professional Flexible Rotation Docking Turntable Transfer Carts
Product Description
In modern factories and intelligent logistics centers, achieving precise positioning, efficient flow, and multi-directional transport of heavy-loaded materials along fixed routes has become a major challenge in modern logistics.
BEFANBY has launched a newly designed rail transfer cart with a turntable, a specialized intelligent device designed to address this challenge. It's more than just a transporter; it's a valuable companion during your production and transportation process!
Key Highlight: Turntable Function, Versatile Docking
The key difference between our rail transporter and traditional rail flatbed carts lies in the integrated turntable system on the top, which allows for 360° docking rotation. Precise direction changes allow for direct adjustment to the optimal angle for docking, assembly, or unloading without the need for additional equipment, significantly reducing adjustment time and the risk of collisions.
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Support Customized
Product Features
Product Advantages: Reliable, Efficient, and Powerful
Excellent Load Capacity: Utilizing high-strength steel structures and premium drive components, the machine offers a wide range of tonnages, from a few tons to hundreds of tons, easily handling the challenges of transporting a wide range of heavy materials, molds, and steel coils.
Smooth and Precise Operation: Equipped with a powerful powertrain and variable frequency control system, it ensures smooth and seamless starting, driving, docking, and rotation, effectively protecting the integrity of transported materials.
Adaptable: Customizable features such as explosion-proof, high-temperature, and corrosion-resistant are available, making it widely applicable in harsh industrial environments such as metallurgy, automotive manufacturing, chemicals, building materials, and ports.
Factory direct sales
