40 Ton Battery Opertaed For Pouring Molten Aluminum Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel | ||
| Highlight | Self-Propelled Mobile Electric Scissor Lift,Logistics Mobile Electric Scissor Lift,Electric Scissor Lifting Platform |
||
Product Description
40 Ton Battery Opertaed For Pouring Molten Aluminum Transfer Cart
Product Description
A trackless transfer cart is a heavy-load transport device that operates flexibly without fixed tracks. It utilizes battery power and a DC motor, coupled with multiple sets of driving wheels and universal steerable wheels. This allows the vehicle to move freely, both straight and sideways, and turn, both indoors and outdoors within the factory, adapting to complex and changing working conditions. Furthermore, the transfer cart can be operated with a remote control or handle for precise and safe operation.
Our Company
Customized Support

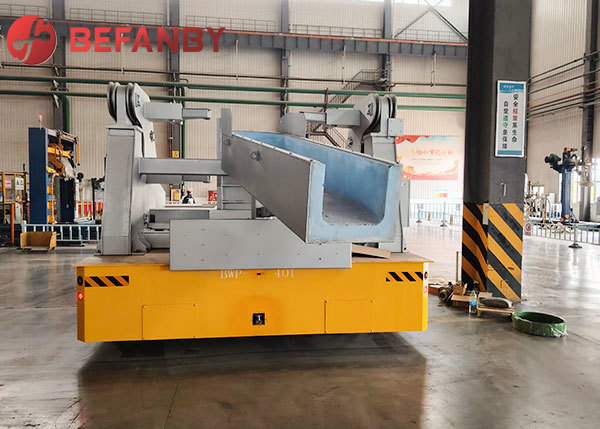

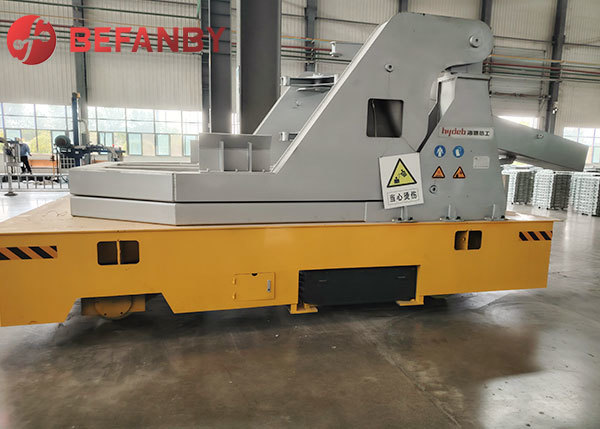

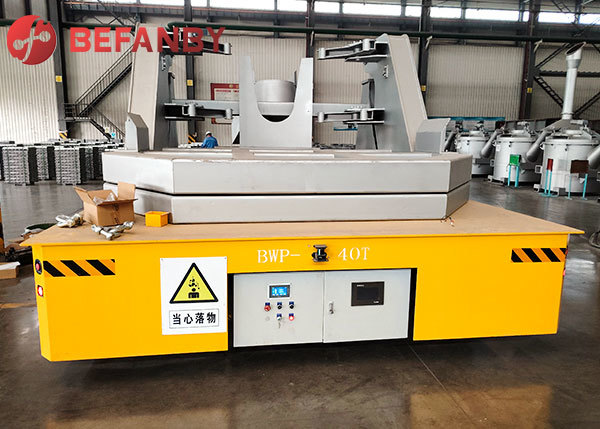

This trackless transfer cart utilizes a high-strength welded steel frame, ensuring strong load-bearing capacity and impact resistance. The platform features a hydraulic tilting mechanism for precise tipping of molten aluminum ladles. Considering the unique operating conditions of high-temperature molten aluminum, the platform is clad in high-temperature, fire-resistant materials, effectively extending the equipment's service life and safety.
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Product Feature
Production Process
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
Product Tap: Material Handling Cart , Rail Transfer Cart
