12T Chain Conveyor Trackless Transfer Cart With Mold Factory
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Product Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel | ||
| Highlight | 30T battery rail transfer cart,heavy-duty battery transfer cart,factory material handling cart |
||
Product Description

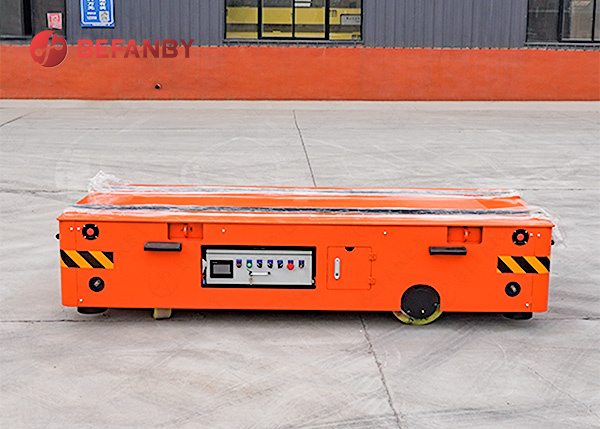

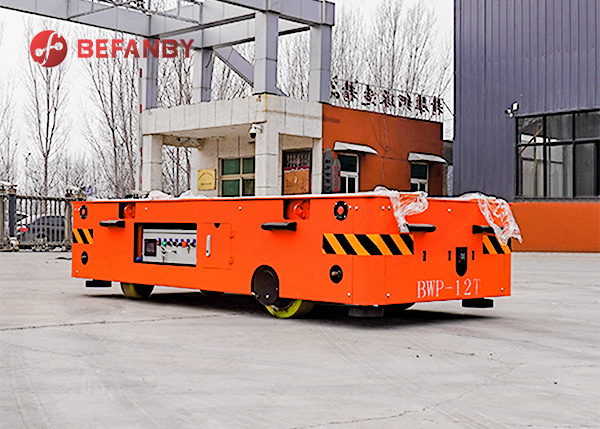

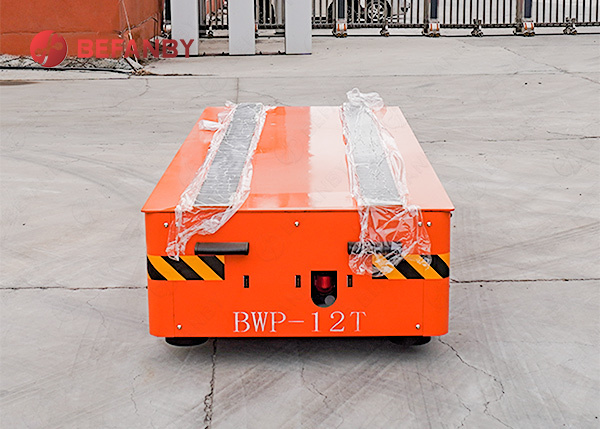

12T Chain Conveyor Trackless Transfer Cart With Mold Factory
This trackless transfer cart with a chain conveyor system is an integrated intelligent handling device combining "flexible transportation" and "automatic conveying." It is widely used in workshop production and indoor/outdoor warehousing logistics for material transfer and automated docking operations. Compared to rail-mounted transfer carts, this equipment requires no tracks and can move freely within the factory area. Simultaneously, it achieves automated loading and unloading and efficient material flow through the chain conveyor system on the platform.
Products Details
Customized Support
Product Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Key Features
Production Process
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
How to ensure your product quality?
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Whether you can offer customized transfer car?
Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Whether there is professional technician assist our installation?
Yes. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance so that we can arrange technicians.
