Customized Battery Operated Railway Transfer Cart With V Frame
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | lift platform |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Factory,workshop,construction Site |
| Materials | Steel | ||
| Highlight | 6m Hydraulic Scissor Lift Platform,Customized Hydraulic Scissor Lift Platform,Traction Hydraulic Scissor Lift Platform |
||
Product Description
Customized Battery Operated Railway Transfer Cart With V Frame
Product Description

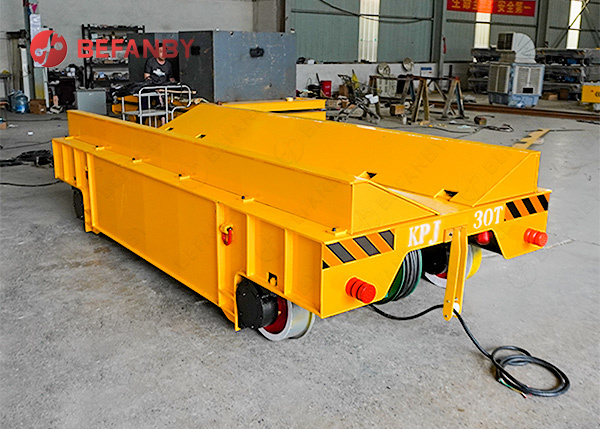

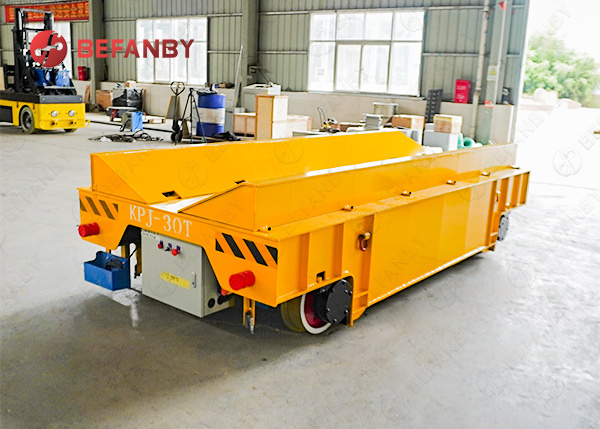

This transfer cart is exported to Mexico. It is a rail transporter with a V-frame coil structure device customized according to customer requirements. It is designed for the transportation of cylindrical coils such as steel coils, aluminum coils, and copper coils. A special V-frame structure is installed on the vehicle body to effectively prevent the coils from rolling or shifting during transportation, ensuring safety and stability during transportation. The design of this structure can be disassembled at will to increase the size of the table. The V-frame can be adjusted or customized according to different coil sizes to meet the needs of handling coils of various specifications.
Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
QU100 |
|
Product Details

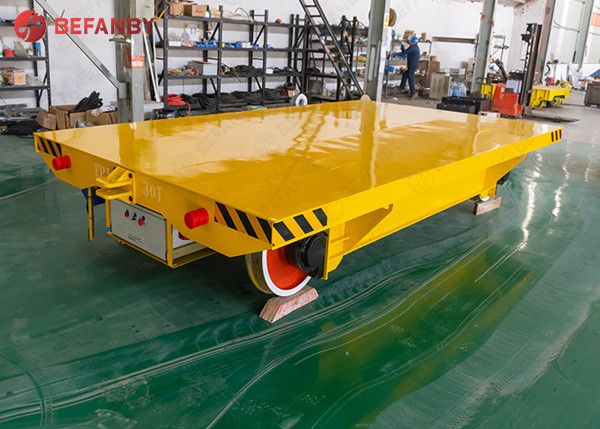

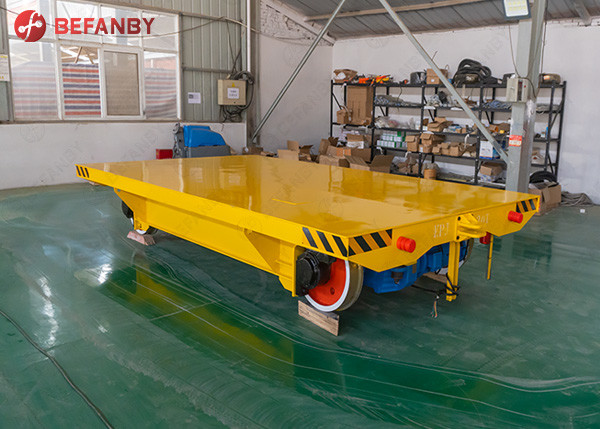

The transfer cart runs on rails, has strong bearing capacity and stable operation, and is suitable for metallurgy, machining, warehousing and other occasions where coils need to be frequently transported. The overall structure is made of high-strength steel structure, which is durable and battery-powered. It can also be equipped with a control or handle to further improve transportation efficiency and operational convenience. Whether it is short-distance transportation between production lines or cross-regional centralized transportation, it is an ideal choice for improving the level of factory automation.
