Production Line Apply Battery Powered Delivery Electric Flat Car On Rail

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-electric flat car
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Production Line Apply Battery Powered Delivery Electric Flat Car On Rail Car Size Custom Length And Custom Width
Load Capacity Up To 1000 Ton Electrical Equipment Simens, Schneider, Nord
Safety Devices Warning Lamp, Siren, Bumper Rail Gauge(mm) 1435
Material Cast Steel, Q235 Power Supply Storage Battery
Power Source 380V/50hz Rail Type P24
Color Red, Yellow, Blue Exported Countries Europe, Asia, Africa, Middle-east
Certificates CE,SGS,ISO9001,SASO
High Light

battery powered cart

,

battery operated cart

Leave a Message
Product Description

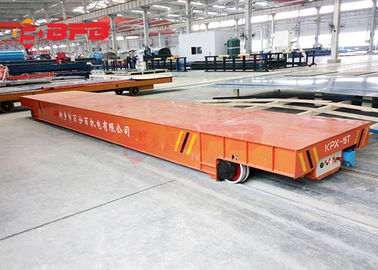

Production line apply battery powered delivery electric flat car on rail



BEFANBY designed and manufactured the battery powered flat car and provide innovative handling solution with more than 16 years'experience.the railroad cart can be used in industry plant, port, workshop, production line and so on to transport ladle, coil, mold, steel products, workpiece and so on.All the solution are designed as per customers true demand.



Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 0



The battery powered flat car is a good choice if meeting the following features:


1.The running distance is not limited for the battery powered flat car
2.Low using frequency(The spare battery can be provided if higher using frequency)
3.Despite of turning or going straight, the rail transfer car can realize
4.Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer car can realize.
5.Dimensions,capacity,loading platform superstructure, speed and many others special funcition can be customized as per client request.



Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 1

Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 2





Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 3






Character Showing of Production line apply battery powered delivery electric flat car on rail



1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500t
3. Safe parts are installed in the flat car(warning light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment



Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 4


Working Principle of production line apply battery powered delivery electric flat car on rail

KPX series' electric flat car is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.

Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 5

Technique Parameter of Production line apply battery powered delivery electric flat car on rail



Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing of Production line apply battery powered delivery electric flat car on rail


Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 6


Packing& Delivery of Production line apply battery powered delivery electric flat car on rail


Production Line Apply Battery Powered Delivery Electric Flat Car On Rail 7


Our Company----BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.





You can copy the following options and click here to select your specific requirement for the transfer car to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer car is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The voltage is ( ) V, ( ) HZ, 3 phase.



4. The running time is ( ) hours per day.



5. The running distance is ( ) m per time.



6. The transfer cart runs on the rails or common floor?



7. Whether exist turning?



8. Whether has other special requirement?
