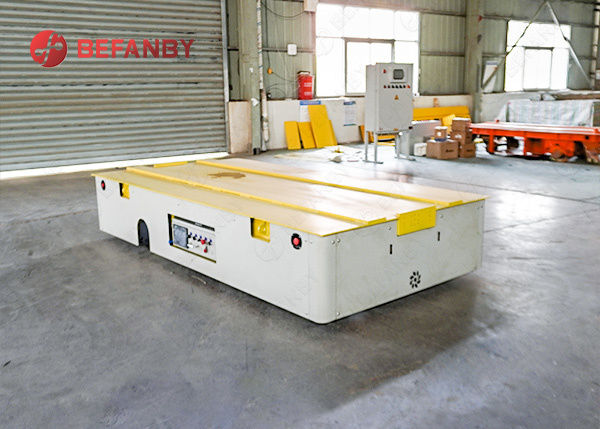

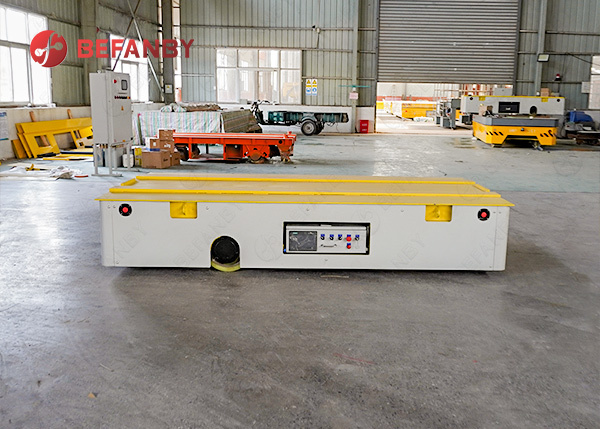

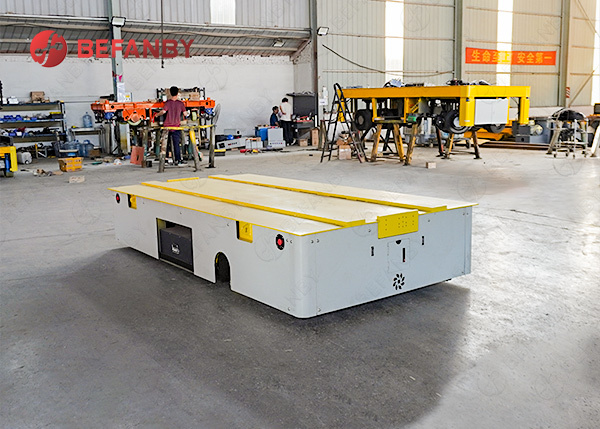

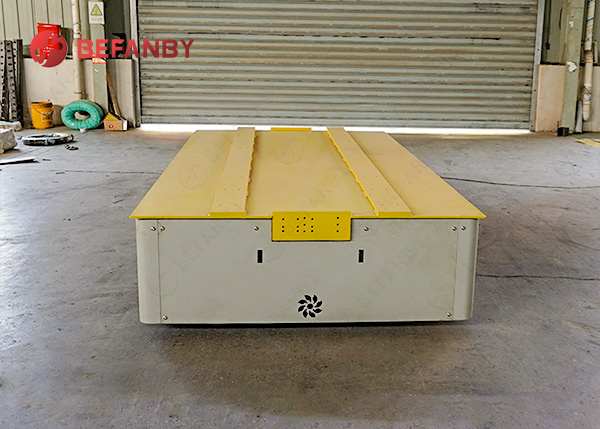

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle

  • High Quality 5T Full Automatic Electeical Railway Transfer Vehicle
  • High Quality 5T Full Automatic Electeical Railway Transfer Vehicle
  • High Quality 5T Full Automatic Electeical Railway Transfer Vehicle
  • High Quality 5T Full Automatic Electeical Railway Transfer Vehicle
  • High Quality 5T Full Automatic Electeical Railway Transfer Vehicle
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number lift platform
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Warranty 24 Months
Load Capacity Customized Power Supply Battery Operated
Port Qingdao/Tianjin/Shanghai Application Heavy Industry,outdoor,construction
Materials Steel
Highlight

Full Automatic Construction Hydraulic Table Lift

,

building high quality hydraulic table lift

,

Construction full automatic hydraulic table lift
Leave a Message
Product Description

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle

Product Description

  • In modern intelligent production and logistics handling scenarios, trackless transfer carts have become important transportation tools in workshops, warehouses, ports and other places due to their flexible and efficient characteristics. They do not require rails to be laid on the ground and can move freely through advanced navigation systems, significantly improving operational efficiency and space utilization. Whether it is the relocation of heavy equipment, the transfer of materials on production lines, or transportation at construction sites, trackless transfer carts can easily handle complex environments and meet diverse handling needs.
  • The core advantage of trackless transfer carts lies in their flexible running paths. They are equipped with polyurethane rubber-coated wheels that are anti-slip and wear-resistant. They can be remotely controlled to operate in the desired direction, ensuring precise driving in complex environments and avoiding collisions and deviations.

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100

Company Profile

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 1

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 2

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 3

Product Details

Equipped with a DC motor, the powerful drive system combined with a large-capacity battery provides long-lasting power, easily carrying goods ranging from 1 to 100 tons. Meanwhile, it supports automatic obstacle avoidance, path planning and remote control operation, further ensuring the safety and efficiency of operations. The vehicle body structure is sturdy and durable with low maintenance costs. From heavy machinery manufacturing to modern e-commerce warehousing and logistics, the trackless transporter is gradually replacing traditional transportation methods and becoming a key device for intelligent upgrades.

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 4

Product Feature

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 5

Shipping

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 6


Related Products

High Quality 5T Full Automatic Electeical Railway Transfer Vehicle 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.

Product Tap: Material Handling Cart , Rail Transfer Cart
