Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts

  • Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts
  • Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts
  • Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts
  • Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts
  • Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts
  • Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts
Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-30 Ton
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms 30% deposit by T/T in advance,70%balance by T/T before dispatch
Supply Ability 1000 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Application Heavy Industry, Steel Mills, Molten Steel Ladle Handling
Car Size Can Be Customised Load Capacity Up To 1000 Ton, 30 Ton
Electrical Parts Siemens, Schneider, Nord Saftey Devices Warning Lamp, Siren, Bumper
Exported Countries South Africa, Australia, Syria, Thailand, Platform Heat Insulating Material
Parts Gear Reducer, Heavy Duty Battery, Electrical Appliance, Dc Motor, Operation Ways Operation Handle + Remote Control
Power Heavy Duty Battery Power
Highlight

Motorized Railway Ladle Transfer Cart

,

Heat Proof Ladle Transfer Cart

,

30 Ton Ladle Transfer Cart
Leave a Message
Product Description

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts



The motorized trailway transporter ladle carriers are used to carry hot metal ladles to be fed into a pig or ingot casting machine, or for transfer within a plant.
Depending upon the occasions, the ladle carrier can be driven by battery, cable winch drives, hydraulic motors, electric motors, or hydraulic cylinders. Economy Industrial's ladle transfer carriers offer heavy-duty design to handle the impact loads from ladle placement by crane. A variety of custom designs are available for ladles supported by their base or for trunnion supports on the car frames.

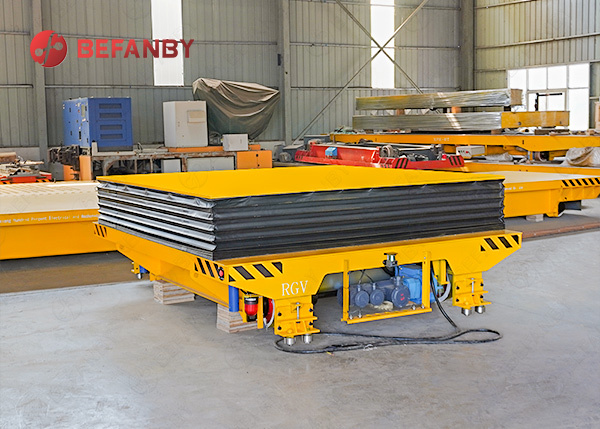

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 0

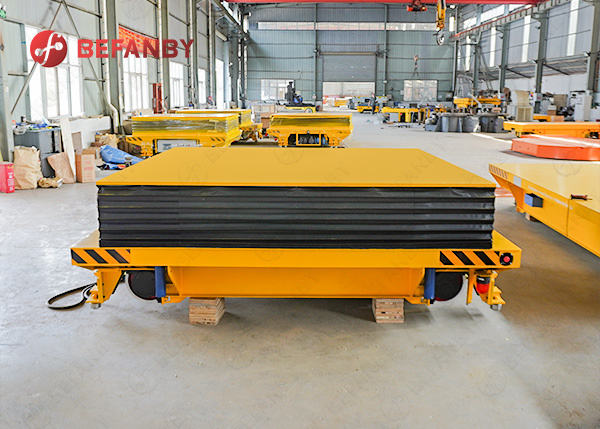

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 1

Products Paramater

P

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100



Advantages


The ladle transfer carrier is can be customized, the customs can be choosen a track or trackless, battery power or cable power. The ladle carrier heavy duty transport cart, which can transport molten metal runs on railways or smooth with v frame in case of splashing in a steel mill. It adopted stainless steel, because of the hot metal roller has Corrosive

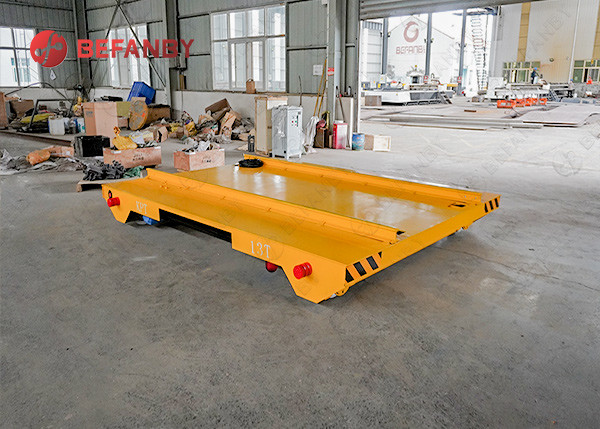

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 2

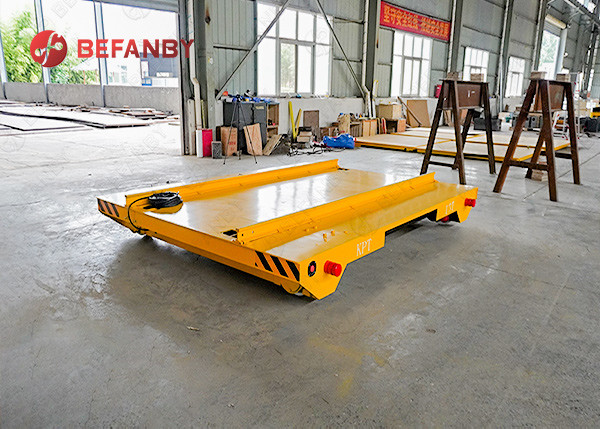

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 3


Applications


The Battery Powered Motorized Railway Transporter Ladle Carrier With Heat Proof is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).

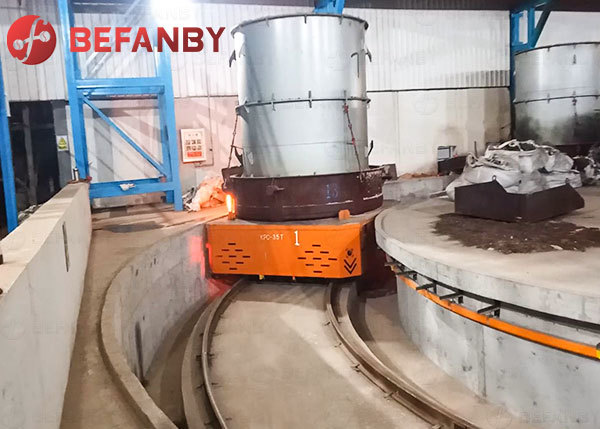

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 4

Our Company

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 5

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 6

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 7

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 8

After Sale

ladle car

Motorized Railway Boiler Factory Ladle With Heat Proof Transfer Carts 9

torpedo ladle car heat insulation material heavy duty battery tilt table
