Large Capacity Ladle Transfer Cart Bay To Bay Metal Slag Pot Trailer On Turning Rail
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-50T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Production Line Or Crossing Rails Workshop | Rated Load | 50t |
|---|---|---|---|
| Max. Capacity | Up To 300ton | Car Size | 8000*3000*500mm |
| Electrical Equipment | Siemens, Schneider, Nord | Exported Countries | Mexico, Australia, Singapore |
| Material | Q235 Steel | Wheel Quantity | 4 Pcs |
| Package | The Whole Cart Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate | Delivery Time | 45-60 Days After Received Advamced Payment |
| Payment Terms | T/T, L/C | Port | Qingdao/Tianjin/Shanghai/Ningbo |
| Highlight | material handling trolley,battery powered cart |
||
Product Description

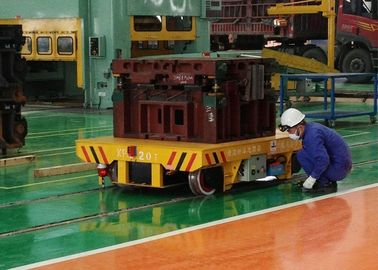

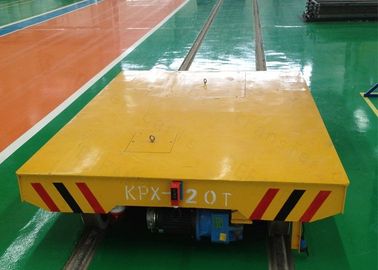

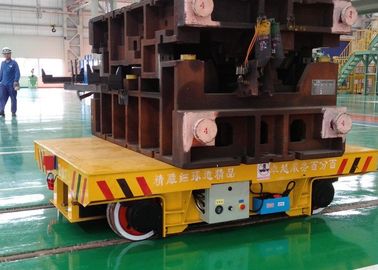

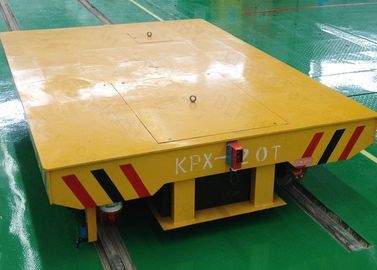

Large capacity bay to bay matel slag pot trailer on turning rail
Description of bay to bay matel slag pot trailer
The frame of self-driven transfer cart on crane rail is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.
The bay to bay matel slag pot trailer is applied in steel plant or shipyard to transfer heavy load large dimension workpieces.
The bay to bay matel slag pot trailer is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.
Frame Driving system Steel wheel
Reducer Light & sound alarm Bumper
Functions of bay to bay matel slag pot trailer
- Go forward and backward,
- Turn left and right,
- Adjust speed button,
- Indicator light,
- Electric indicator light and other control buttons.
Working principle of bay to bay matel slag pot trailer
KPX tmatel slag pot trailer is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.
With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Advantages of matel slag pot trailer
- Has no lit on using time and high working frequency;
- Can be used in high-temperature environment;
- Can be used in explosion-proof environment;
- Safety and flexibility;
- Large toad capacity, can reach to 50 tons;
Detailed description of matel slag pot trailer
The matel slag pot trailer is suitable for working environment with not so long running distance, such as steel factory, machinery manufacturing plant, etc.
The matel slag pot trailer is applied in workshop to transfer heavy materials bay to bay. The rails should be insulated.
This kind of matel slag pot trailer can also be applied on turning rails, arc-shaped rails.
Technical parameters of matel slag pot trailer
| Model | KPX-2t | KPX-20t | KPX-50t | KPX-100t | KPX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Delivery of matel slag pot trailer
Generally the matel slag pot trailer is delivery through container, but if the platform is too large, it can be delivery through frame rack
Customer visit in our factory
Quality control of self-driven transfer cart
Other product of BEFANBY company
Our company
Our certificate
Our service
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
