Sale Service Provided DC Motor Railway Coil Factory Transfer Vehicel
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Application | Industrial Field,motorized Slab Transfer | Running Speed | 0-20m/min |
| Running Distance | 60m, Customized On Demand | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-100 Ton Payload |
| Power Supply | Battery Powered | Operation Type | Hand Pendant + Remote Control |
| Advantage | More Than 19 Years' Experience For Motorized Slab Transfer | Option Power | Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc. |
Product Description
Sale Service Provided DC Motor Railway Coil Factory Transfer Vehicel
The coil rack rail transfer cart is a special rail transport equipment designed for transporting coil materials (such as steel coils, copper coils, aluminum coils, paper coils, etc.). The cart deck is equipped with a customized coil support, which can be customized and optimized according to the material diameter and weight to ensure the stability of the coil during transportation. The support can be designed as a fixed, adjustable or detachable structure to meet the transportation needs of coils of different specifications.
The transfer cart runs on pre-laid tracks and is often powered by batteries, low-voltage rails or busbars. It can adapt to high-frequency transportation tasks over medium and long distances within the workshop. The cart has a solid structure, strong carrying capacity, and stable operation. It can be controlled by a remote control or handle to achieve precise docking and efficient material flow.
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer
cart rail power supply trolley line motorized rail cart cable power supply

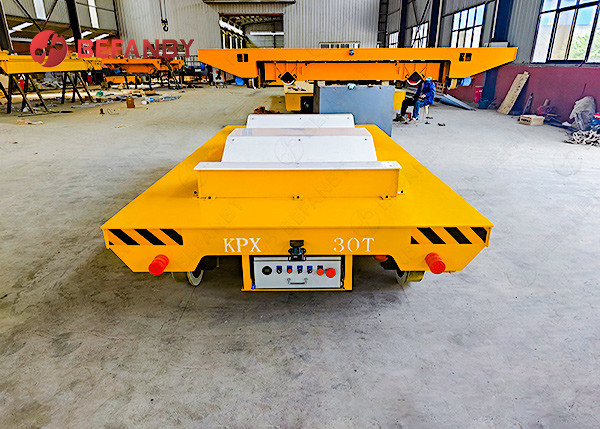

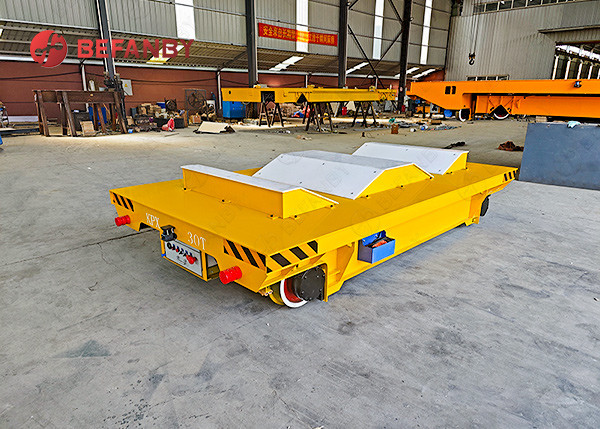

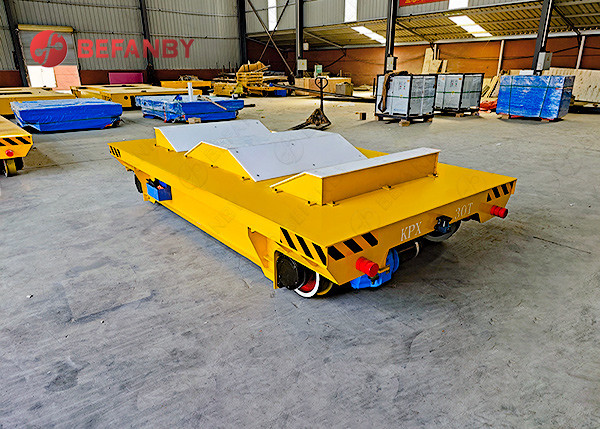

Detailed Images
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company
Advantages
✔ Higher load capacity – Depending on the design, it can carry from 1 ton to more than 100 tons.
✔ Precise movement – Fixed tracks prevent deviation and ensure accurate positioning.
✔ Low maintenance costs – Simple structure and optional custom accessories.
✔ Customizable – Can be installed with turntable, lifting structure or V-frame device.
