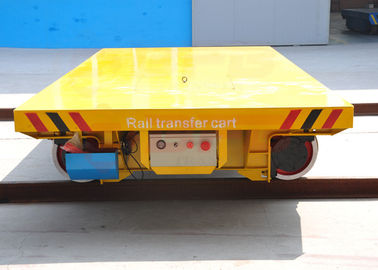

Steel Factory Apply Metallurgy Transport Bed Trolley On Railway
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-30T |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 40-50 days as usual delivery30-40days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 60 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Steady, Security, Anti-high Temperature | Rated Load | 30t |
|---|---|---|---|
| Capacity | Form 1 Ton To 300ton | Car Size | Custom Car Length And Width |
| Electrical Equipment | Siemens, Schneider, Nord | Exported Countries | Mexico, Australia, Singapore |
| Rail Gauge(mm) | 1435 | Wheel Material | Forged Wheel Or Casting Wheel |
| Wheel Quantity | 4 Pcs | Rail Type | P38 |
| High Light | battery powered cart,battery operated cart |
||
Product Description
Steel factory apply metallurgy transport bed on railway
Working principle of metallurgy transport bed
The metallurgy transport bed is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive rail ladle car working.
Features of metallurgy transport bed
- Box girder structure;
- Anti-high temperature and explosion-proof;
- PLC automatic control;
- Can be add hydraulic lifting device;
- Can be add dumping device;
- Electric weighing scale and LED display can be installed;
- Can run on straight rails or arc-rail, turning rails;
- Low failure rate, working steady;
- High efficiency, low energy consumption;
- Reasonable design, reliable operation;
Application of metallurgy transport bed
The metallurgy transport bed is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.
In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design. This kind of ladle car can run on both straight rails and S-shaped rails.
The applying site in one of our client’s factory, they use the metallurgy transport bed to transfer steel scraps ladle from production line to warehouse. In order to improve the working efficiency, the use two sets ladle cars for alternative using.

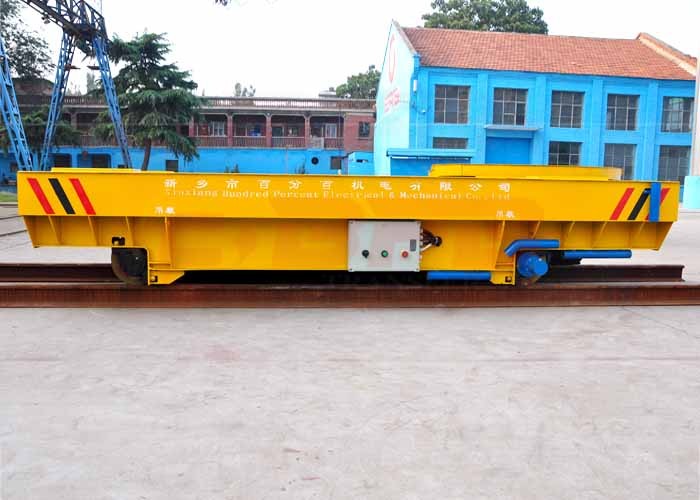

Several kinds of of metallurgy transport bed
Technical parameters of metallurgy transport bed
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Delivery of metallurgy transport bed
Customer visit in our factory
Customer feedback
Quality control of steel ladle car
Other rail handling car in BEFANBY company
Our service
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
