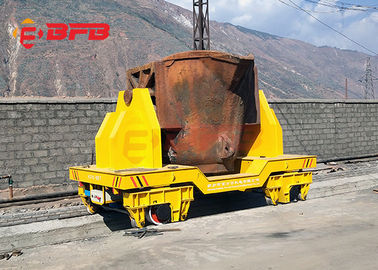

Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
  • Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The tranfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 800 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Anti-high Temperature Large Capaicty Boiler Factory Bay Handling Trailer Color Customized
Application Industrial Field Running Speed 0-20m/min
Running Distance Unlimited Warranty 24 Moniths
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000T
Operation Type Hand Pendant + Remote Control Safe Device E-stop. Sound And Light Alarm, Dead Man Stop...
High Light

battery operated cart

,

rail transfer trolley
Leave a Message
Product Description

Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

Brief Introduction for Electric Material Transfer Cart

This kind of Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry is powered by the lead-acid battery which conducts DC current directly into the electrical control system of the railway platform to let it start, stop, go forward and backward, speed up and slow down and so on.This electric railway platform can be used both on the "s"and arc-shaped railways and suitable for long distance tracelling.

roll plant electrical control system handle box sand blasting room transfer materials

Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry
Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

Structure of Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

roll plant electrical control system handle box sand blasting room transfer materials

This kind of series Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry is composed by electric railway frame, the electric motor, gear reducer, wheel, electrical appliance box, lead-acid battery, shaft and connecting shaft, handle box, alarm light, buffer device, pendant control or wireless remote control and some other accessories and so on. roll plant electrical control system handle box sand blasting room transfer materials

Application of Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

roll plant electrical control system handle box sand blasting room transfer materials

The Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry is suitable for various industries;

roll plant electrical control system handle box sand blasting room transfer materials

Steel mill: transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc
Chemical plant: Transfer materials and large machine parts;
Building Sites: Load cement concrete and building machinery;
Port: used for the container and cargoes shuttle;

roll plant electrical control system handle box sand blasting room transfer materials

Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

roll plant electrical control system handle box sand blasting room transfer materials



Technique Parameter of Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Our Company


Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc. roll plant electrical control system handle box sand blasting room transfer materials
Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry

Our Advantage


Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry


Our Customer


Anti High Temperature Material Moving Carts , High Speed Material Transfer Carts metal ladle for foundry


Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-500ton, can be customized per client demand Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery
Motorized Transfer Trolley KPJ Cable Drum
Busbar Powered Handling Cart KPC Busbar
Towed Rail Trailer KP Tractor 1-500t
Steerable Towed Car BWT Tractor Load range 1-500t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.
Trackless Handling Machine BWP Battery



These points we need to learn:





1.The load capacity of the transfer cart is ( ) ton.



2.The table size is ( ) mm (L) *( ) mm (W)*( ) mm (H).



3.The voltage is ( ) V,( ) HZ, 3 phase.



4.The running time is ( ) hours per day.



5.The running distance is ( ) m per time.



6.The transfer cart runs on the rails or common floor?



7.Whether exist turning?



8.Whether has other special requirement?
