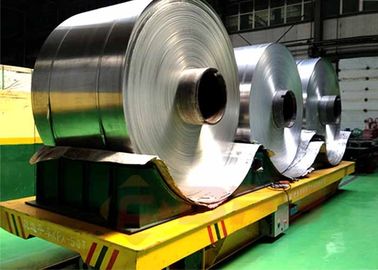

Aluminum Coil Transfer Car , Heavy Handling On Rail Transfer Cart KPC - 30T Model
|Place of Origin||Xinxiang|
|Minimum Order Quantity||1 set|
|Packaging Details||Electrical parts will add shields. As required by the customer, we can add a fixed packing.|
|Delivery Time||50-60 days as usual delivery,40-50days for urgent delivery|
|Payment Terms||30% deposit by T/T in advance, 70%balance by T/T before dispatch|
|Supply Ability||600 sets one year|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Application||Production Line Or Paper Industry||Rated Load||30t|
|Max. Capacity||Up To 300ton||Car Size||8000*3000*500mm|
|Electrical Equipment||Siemens, Schneider, Nord||Exported Countries||Mexico, Australia, Singapore|
|Material||Q235 Steel||Wheel Quantity||4 Pcs|
|Package||The Whole Aluminum Rail Vehicle Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate||Delivery Time||45-60 Days After Received Advamced Payment|
|Payment Terms||T/T, L/C||Port||Qingdao/Tianjin/Shanghai/Ningbo|
coil transfer car,
die transfer cart
The aluminum coils handling aluminum is powered by electric busbar (electric sliding line). It gets power from sliding line during the cart running. The electric control system of the cart realize it start, stop, go forward and backward.
Features of aluminum rail vehicle
- Simple structure, low cost;
- Has no strict on rail construction;
- Suitable to working area with short running distance;
- Suitable to working area with high using frequency;
- Has no limit on running distance;
- Can be applied in high-temperature environment;
- Box girder structure;
- Reasonable design, reliable operation;
- Can be add hydraulic lifting device;
- Can be add dumping device;
- High efficiency, low energy consumption;
Detailed description of aluminum rail vehicle
This kind of aluminum factory aluminum coils rail vehivle is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.
Production flow of aluminum rail vehicle
Main parts of aluminum rail vehicle
The main parts of the aluminum rail vehicle includes frame, cast wheel, motor and reducer, electric control box, and other safety device.
Steel frame Casting wheel Light & sound alarm
Driving mechanism Reducer Bumper
Technical parameters of aluminum rail vehicle
|Rated load (T)||2||10||20||30||50||63||150|
|Wheel Base (mm)||1200||2600||2800||3200||4200||4300||7000|
|Rail Inner Gauge (mm)||1200||1435||1435||1435||1435||1435||2000|
|Ground Clearance (mm)||50||50||50||50||50||75||75|
|Running speed (min)||0-25||0-25||0-20||0-20||0-20||0-20||0-18|
|Motor Power (Kw)||1||1.6||2.2||3.5||5||6.3||15|
|Running Time When Full Load||4.32||4.8||4||3.5||3.3||3||2.9|
|Running Distance for one Charge(Km)||6.5||7.2||4.8||4.2||4||3.6||3.2|
|Max Wheel Load (KN)||14.4||42.6||77.7||110.4||174||221.4||265.2|
|Reference Weight (t)||2.8||4.2||5.9||6.8||8||10.8||26.8|
|Recommended Rail Model||P15||P18||P24||P38||P43||P50||QU100|
This kind of coil aluminum rail vehicle is applied in paper industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.
In order to protect security, a V-frame is added on the platform.
- Q: What is the capacity of aluminum rail vehicle? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.
2. Q: What is the using candition?
A: The environment temperature should be in level. such as production line
3. Q: What is the working speed of the ladle car?
A: The standard running speed is 0-20m/min.
