Crossing rail ransfer car on turnplate for aotumobile production line
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BZP-20T |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply Mode | Battery | Diameter | Custom Length And Custom Width |
|---|---|---|---|
| Load Capacity | Up To 50 Ton | Electrical Equipment | Simens, Schneider, Nord |
| Safety Devices | Warning Lamp, Siren, Bumper | Exported Countries | Holland, Syria, Germany, Mexico |
| Feature | Running On Turnplate | Contact | Marketing@bfbhandling.com |
| High Light | heavy duty material handling carts,automated material handling system |
||
Product Description
Crossing rail ransfer car on turnplate for aotumobile production line
Working principle
When the rail transfer car runs on the turnplate, turn the turnplate automatically or with manpower to connect the railways on the turnplate with 90 degree turning railway. The turnplate can turn 0-360 degree freely.
Advantages of rail turnplate
- Flexiability and environmental;
- Can turn 0-360 degree;
- Has no limit on working frequency
- Has no strict requirement on rail construction;
- Commonly work together with rail transfer cart;
- Suitable for limit space working condition;

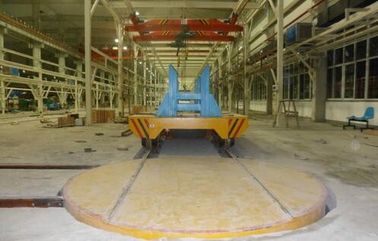

Photo show of rail turnplate
Application of the rail turnplate
This turnplate rail transfer car is suitable to be used on the annular railway and crossing railways for the equipment's producing line. the turnplate system has the features of stable driving, high accuracy of rail connection and can be totally automatically operated.
The large diameter rail turnplate is applied in the new steel plate. We can customized the diameter and size of the turnplate according to clients' requirement.
The parameter of rail turnplate
|
Model
|
BZP-2T | BZP-10T | BZP-20T | BZP-30T | BZP-50T | BZP-63T | BZP-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Diameter (mm) | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Rotary speed (R/min) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
BEFANBY Company
ManufacturingXinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand
Cutomer from worldwide
Parts of BEFANBY Certificates
Delivery of rail turnplate
Generally the rail turnplate is delivery through container. If the dimension of the transport is too large,
it can be break up or delivery through flat rack.
BEFANBY advantages
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
