Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 60 set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Warranty 12 Months Application Industrial Field
Power Supply Cable Load Capacity 1-300T
Port Qingdao/Tianjin/Shanghai Size Customized
Highlight

industrial material handling equipment

,

heavy duty material handling carts

Leave a Message
Product Description



Low Price Automatic Dragged Cable Powered Self Driven Trailer With Short Distance

Brief Introduction

KPT series' railroad trailer  is powered by mobile cable, the kind of railroad trailer , its main character is that its power supply----dragged cable.From it you can see that it is suitable short distance due to the limitation of the cable. so if you would like to a short distance transportation, it is a good option for you. Up to now, the largest capacity can reach to 300T. About us, we utilize advanced technique and superior team to isist on improving it.Our enterprise always keeps the quaility concept---- Attentily manucfacturing, keep on improving and elabrately serving to make our customers satisfied.

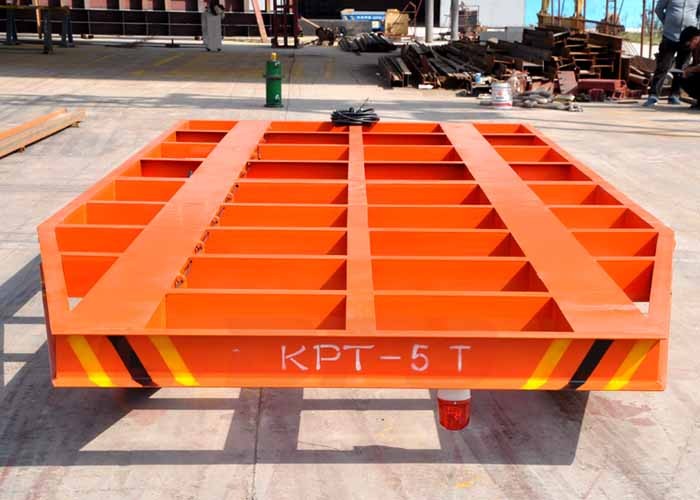

Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 0


Working Principle

KPT series' dragged cable trailer----it conducts AC380v directly into the electrical control system of the transfer cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.


Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 1


Character Showing



  • Anti-explosion
  • Heat-resist
  • Safe devices are installed
  • Customization can be supported
  • Self Driven
  • Low cost
  • No limitation of time
  • Simple structure
  • High frequency
  • No strict requirement of rails
  • Easy abrasion for cable
  • Need dig trench,impair the ground
  • The cart is suitable to use in short distance(<=20m), low cart's height



Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 2


Technique Parameter

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Processing Line


Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 3


Packing & Delivery


Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 4


Brief Introduction

BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.


Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 5


Our Customer


Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 6


Why Choose Us?


Self Driven Material Handling Solutions Automatic Dragged Cable Powered Short Distance 7


Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

Our After service



  • Our commitment:
  • 1> The load bearing safety factor of the trolley is no less than 120%.
  • 2> Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 3> 16 hours engineering service and 24 hours internet service for our customers
  • 4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • 5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
