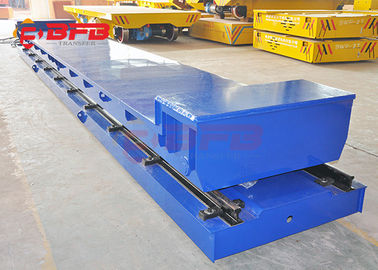

Railroad Workshop 40t Busbar Powered Transfer Cart

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPC-25T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Crossing Rails Workshop Rated Load 40t
Max. Capacity Up To 1000ton Car Size Customized Table Size
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Cart Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
Highlight

40t Busbar Powered Transfer Cart

,

Workshop Busbar Powered Transfer Cart

,

Railroad Busbar Powered Transfer Cart

Leave a Message
Product Description
power distribution transformer three phase power transformer electrical power transformer 10 mva power transformer electric control system
Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T

Working principle of sliding line powered rail transfer traverser


The rail traverser is power by busbar(electric sliding line). It gets power from sliding during the cart running. The electric control system of the cart  realize it start, stop, go forward and backward.

power distribution transformer three phase power transformer electrical power transformer 10 mva power transformer electric control system

The Position Of Sliding Wire

The position of the rail car sliding line is adapted to local conditions and determined according to the specific conditions of each user. It can be installed in the middle of the track, on one side of the track, in a trench, or on a wall, or under the flatbed, or above the flatbed, or it can be flush with the flatbed. Based on the principle of convenient, safe and reliable electricity, for example, install the sliding contact line in the trench, install the cover plate on the trench (the cover plate is not a through plate, but one by one), and install a cover plate on the flatbed truck. The board mechanism, when the car is walking, the board is opened and automatically closed, which is safe and beautiful.
 power distribution transformer three phase power transformer electrical power transformer 10 mva power transformer electric control system
Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 TCustomized Workshop Railroad Transfer Traverses For Rail Car Facility 40 TCustomized Workshop Railroad Transfer Traverses For Rail Car Facility 40 TCustomized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T

Detailed description of the rail traverser

This kind of large gauge rail traverser is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.


Technical parameters of rail traverser


Model
KPC-2T KPC-10T KPC-20T KPC-30T KPC-50T KPC-63T KPC-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of crossing rail traverser


This kind of large gauge rail traverser is running on steel tracks or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.

It is the best choice for production line  with large rail gauge.



rail traverserCustomized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T



Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 TCustomized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T



This kinf of rail traverser has wide rail gauge.When the traverser is applied to transfer coils, a V-frame is added.



Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T

The rail traverser is applying in customer's workshop to transfer steel coils on crossing rails. The large platform can handling the rail cart to the crossing rails freely.
 power distribution transformer three phase power transformer electrical power transformer 10 mva power transformer electric control system

Other type rail transfer car BEFANY Can Supply

power distribution transformer three phase power transformer electrical power transformer 10 mva power transformer electric control system

Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 TCustomized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T




Customer visit in our factory


Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T






Our company

Customized Workshop Railroad Transfer Traverses For Rail Car Facility 40 T


FAQ

  1.  Q: What is the capacity of the rail traverser?                                                                         A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

      2. Q: What is the using candition?
         A: The environment temperature should be in level. such as production line

      3. Q: What is the working speed of the ladle car?
          A: The standard running speed is 0-20m/min.
