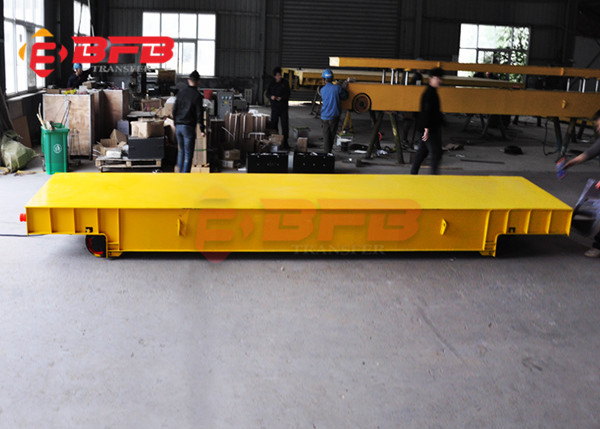

Steel Explosion Proof 20t Motorized Mold Transfer Cart

Place of Origin Xinxiang City, Henan Province
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ-1-500t
Minimum Order Quantity 1 set/sets
Packaging Details The mold car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 800 sets one year
Product Details
Material Steel Load Capacity 1-500T
Car Size Customized Exported Countries Singapore, Australia, South Africa, Mexico
Color Yellow, Red, Blue, Gray, Customized Application Industrial Field, Mold Handling, Product Manufacturing
Power Supply Spring Cable Drum Power Operation Type Hand Pendant+Radio Control
Warranty 18months Port Qingdao/Tianjin/Shanghai
Running Speed 0-20m/min Motor AC Motor
Safe Device Emergency Stop, Dead Man Stop,buffer
High Light

Motorized Mold Transfer Cart

,

20t Mold Transfer Cart

,

Steel Mold Transfer Cart

Leave a Message
Product Description

Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply





1. About BEFANBY Product





The free walking motorized mold car transfer 20 ton mould on rails cable power supply produced by BEFANY not only can withstand 1-1500T of workpieces, but also can realize fully automatic handling, which frees up manpower and hands. This kind of free walking motorized mold car transfer 20 ton mould on rails cable power supply has the advantages of coming and going, 360 degrees in place and so on. Not only that, because of the heavy products, the free walking motorized mold car transfer 20 ton mould on rails cable power supply has locking and unlocking functions when the car body is stopped. The free walking motorized mold car transfer 20 ton mould on rails cable power supply can only run after unlocking to prevent accidents and hidden dangers. BEFANBY's rmotorized mold car can also be equipped with magnetic stripe navigation, which can be explosion-proof and high-temperature resistant according to the working conditions.



Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power SupplyFree Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power SupplyFree Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply



Working principle:The free walking motorized mold car transfer 20 ton mould on rails cable power supply are powered by spring cable drums which installed at the bottom of the cart or one side of the cart. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.



Main parts: cart frame, rail cart wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light



Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply





Product Manufacturing Processing--Welding Quality



BEFANBY promise that quality is always the first concern, and BEFANBY specially set up a quality inspection department. Every time we manufactured a set of rail transport cart, we must carry out strict quality control, including the appearance of rail transport cart, the operation of electric transfer trolley, etc.



According to the symmetrical electric welding of two or four persons, the electric current size and electric welding speed are effectively adopted to reduce the electric welding deformation of the window frame of the rail-type industrial rail flat car. , Turning electric flat car angular rolling bearing box adjustment plate planing adjustment, each bearing surface with seat is selected for cutting production processing, car verification, electric welding welding is carried out on the service platform, welding fixtures are selected to ensure accurate specifications and control electric welding deformation .

Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply







Technical parameter



  Model KPJ 6T KPJ-50T KPJ-150T
  Rated Load(t) 6T 50T 150T
  Table Size(mm) 3500*2000*550 5500*2500*700 10000*3000*1200
  Wheel Base(mm) 2600 4200 7000
  Rail Gauge(mm) 1435 1435 2000
  Wheel Diameter(mm) 300 500 600
  Wheel Quantity 4 4 8
  Ground Clearance(mm) 50 50 75
  Running Speed(m/min) 20 20 20
  Motor Power 1.5 5.5 15
  Max Wheel Load(KN) 25.8 174 265.2
  Reference Weight(t) 3.5 7.8 26.2
  Recommended Rail Model P18 P43 QU100



If you are interrested in our product, pls contact us.

Thank you very much, and have a good time!

Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply

Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply

Free Walking Motorized Mold Car Transfer 20 Ton Mould On Rails Cable Power Supply

















Tag: Railway Transport Trolley, Cable Drum Power Transport Cart
