Steel Ladle Towable Material Transfer Carts 15T Load

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number KP/BWT
Minimum Order Quantity 1 set/sets
Packaging Details The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 15-20 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 sets per year
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 2 Years
Application Material Transfer, Workshop ,Modern Logistic Transportation Capacity 1-500t For Material Transfer Cart
Power Supply No Powered/munual/no Motivation Product Name 1-200 Ton Material Transfer Cart No Motivation For Modern Logistic Transportation
Material Q235 Operation Type Winch, Forklift, Manual Towing
Color Yellow, Gray, Red Or As Your Needs Company Type Manufacturer For Material Transfer Cart
High Light

Towable Material Transfer Carts

,

Steel Ladle Material Transfer Carts

,

15T Load Material Transfer Carts

Leave a Message
Product Description

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail



1. Product Description



The utility model relates to an unpowered material storage and transportation vehicle, which comprises a towable industrial trailer composed of a frame, left and right wheels arranged at the lower part of the rear side of the frame. the frame is an integral frame, the middle part of the front end of the frame is provided with a connecting seat, and under the connecting seat is a traction frame which is welded and fixed by five steel plates, namely, the left and right plates, the front and rear plates and the top plate, the front side of the frame is provided with a long connecting rod which is obliquely installed and connected with the handlebar, the lower side of the front side of the frame is provided with left and right outriggers, and the two channel steel longitudinal beams of the frame are symmetrically provided with a plurality of sleeve rods arranged at intervals.

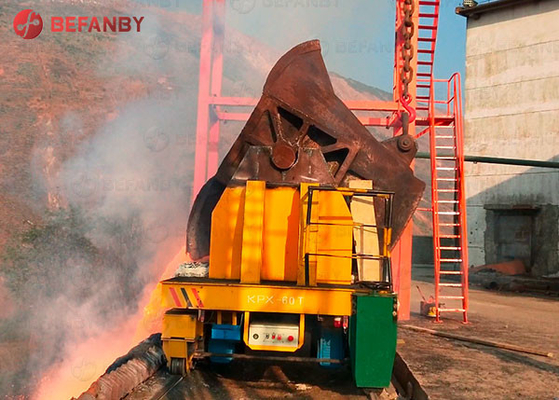

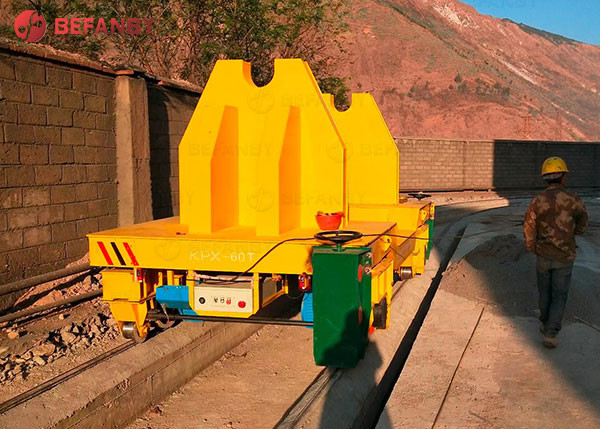

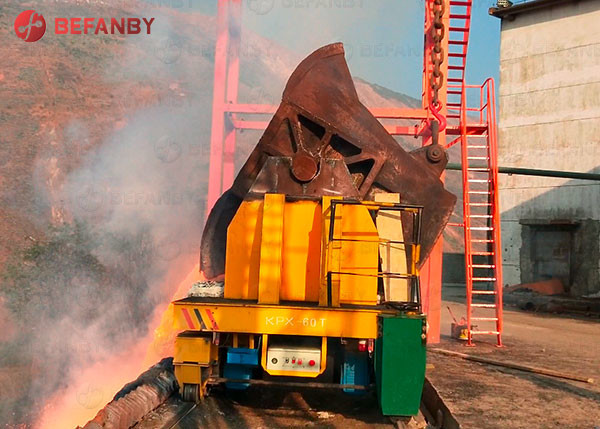

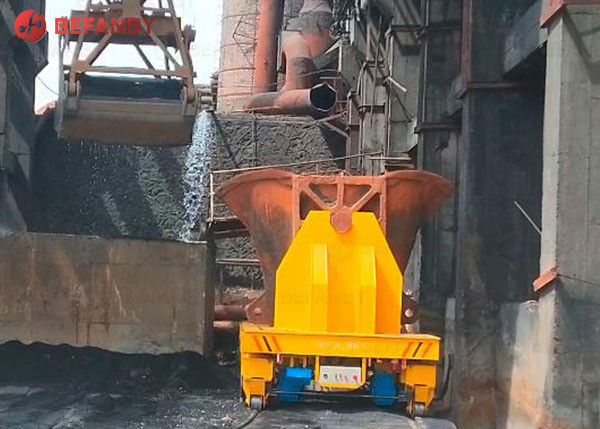

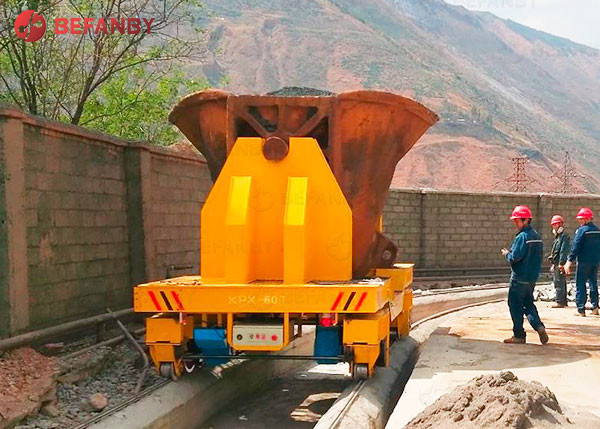

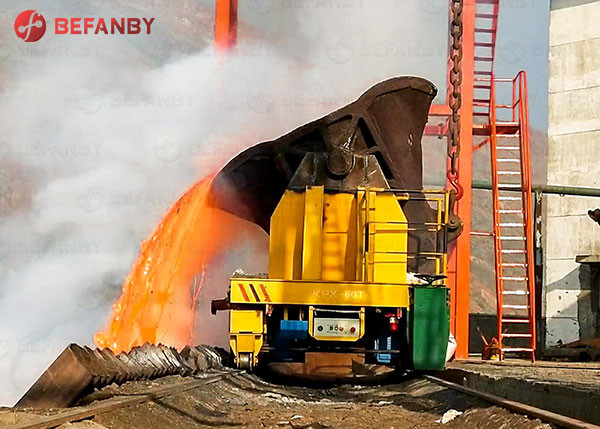

For the ladle handling, Befanby has customzied many successful cases for the site including powered or no powered, please contact us if you'd like to learn more details.

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail15T Steel Ladle Car Towable Industrial Trailers On Steel Rail

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail



The box-beam-type towable industrial traier has been recognized by customers with reasonable price and structural advantages. The series of rail-type flatbed transfer trailers adopts a crane-type beam-type box structure, which can be placed on any part of the table in the process of loading workpieces. , The table top will not have any deformation. In the case of relatively small tonnage, it can be manually pushed (generally no more than 20 tons). In the case of large tonnage, a traction device can be installed at both ends of the trailer, and forklift can be used for traction. Or the rail-powered transfer cart is towed and pushed. This car is not restricted by environmental conditions and temperature conditions. It is a rail car product selected in a high-temperature environment or a harsh environment.



2. Main  Information of Towable Industrial Trailer

A. The main parts of the no motivation transfer cart includes cart frame, towed hook, cast wheel, control box, etc.



a. The Parts of the rail type transfer trailer

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail



b. The Parts of the no motivation transfer cart

material handling equipment manufacturers material handling dollies material handling equipment supplier material handling manufacturers material handling equipment in warehouse material handling companies material carts heavy duty custom material handling carts warehousing and material handling electric power cart

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail



3.The parameter of 1-500t customized manual transfer cart

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100





4. Company Introduce



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail
15T Steel Ladle Car Towable Industrial Trailers On Steel Rail

15T Steel Ladle Car Towable Industrial Trailers On Steel Rail


5. Design Requirement Of transfer trailer

The load capacity, table size, color of the roller bed trailers all can be customized.

1. The rated load capacity: BEFANBY will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trolley plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.



15T Steel Ladle Car Towable Industrial Trailers On Steel Rail
