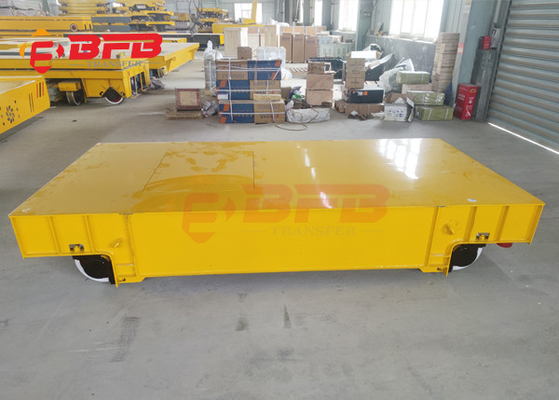

Q235 45t Battery Powered Rail Transfer Car For Mold Plant

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The track flat transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 800 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Application Industrial Field, Steel Plant,mold Plant, Die Transfer Car Running Speed 0-20m/min
Running Distance Unlimited Warranty 24 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000 Ton Payload
Operation Type Hand Pendant + Remote Control Power Supply Battery Powered
Advantage More Than 17 Years' Experience For Transporting Sections Of Vessel Between Buildings Of Shipyard Option Power Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc.
High Light

45t Battery Powered Rail Transfer Car

,

Mold Plant Rail Transfer Car

,

Q235 Rail Transfer Car

Leave a Message
Product Description
45t Battery Power Supply Rail Track Flat Transfer Car For Mold Plant



The rail track flat transfer car uses the lead-acid battery or maintenance free battery as the energy source, the control module as the control core, and the operation handle and remote control as the input means to provide power for the flat car. the battery is installed in the center of the rail track flat transfer car, and can also be installed in the front and rear of the car according to the demand. the battery provides power for the dc traction motor, and sends the start, stop, forward, and stop signals through the remote control back, left turn, right turn, speed regulation and other commands, the electrical control system gives commands to the dc motor to drive the electric flat car to run a variety of commands. it can be used in various large workshops, such as 5s workshop, automobile mold, material transfer, aerospace equipment workshop, air conditioning workshop, casting mold workshop, etc. the car has good load performance. the way of loading is to guide the direction of the steering wheel and the fixed wheel to carry the weight together. the reducer amplifies the torque and provides power to the fixed wheel. the led sound and light alarm is used as the working and warning sign, and the intelligent charger is used as the external power input. with the above functions, the car can complete the task well.

45t Battery Power Supply Rail Track Flat Transfer Car For Mold Plant45t Battery Power Supply Rail Track Flat Transfer Car For Mold Plant45t Battery Power Supply Rail Track Flat Transfer Car For Mold Plant45t Battery Power Supply Rail Track Flat Transfer Car For Mold Plant



Technique Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8



Application



Transporting Goods: the track flat transfer car is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc.



From one location to another; paper roll plant: transfer paper coil painting shops: transfer work piece into the painting room sand blasting room other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc



All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
