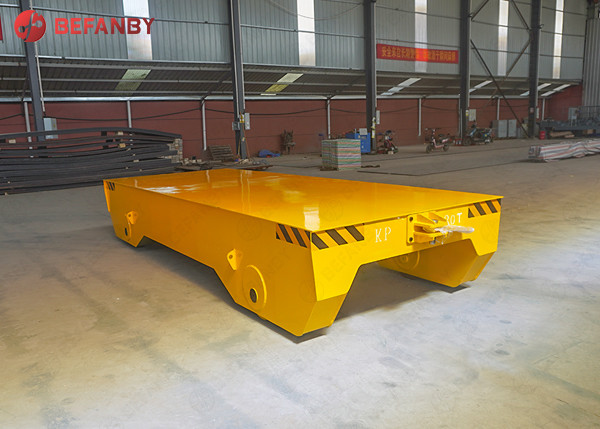

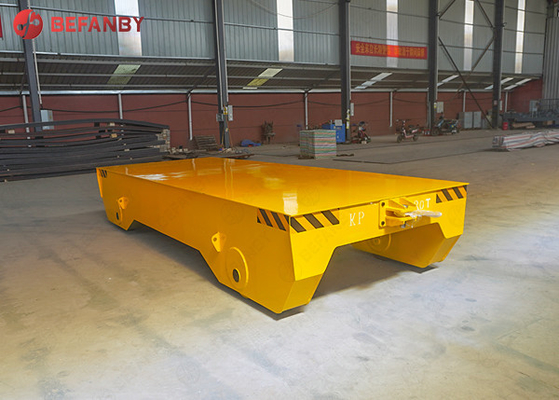

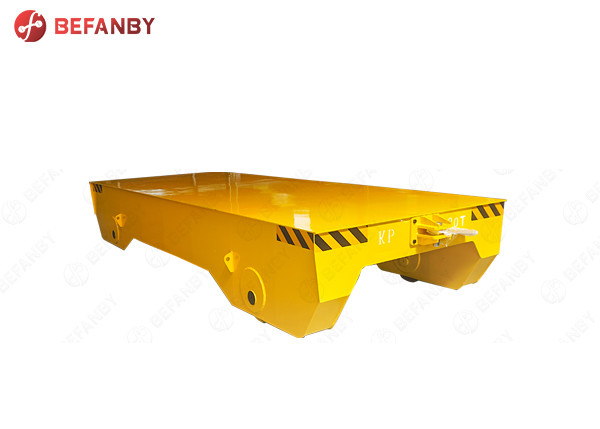

Easy Operation No Powered Transfer Trolley

  • Easy Operation No Powered Transfer Trolley
  • Easy Operation No Powered Transfer Trolley
  • Easy Operation No Powered Transfer Trolley
  • Easy Operation No Powered Transfer Trolley
  • Easy Operation No Powered Transfer Trolley
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number BWT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The unpowered transfer vehicle will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 15-20 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 1 Year
Application Material Transfer, Workshop ,production Line Capacity 1-500 Ton For Steel Coil Trailer
Power Supply No Powered/munual Product Name Solid Wheel 15t Unpowered Transfer Vehicle With Forklift Towing
Material Q235 Operation Type Winch, Forklift Towing
Color Yellow, Gray, Red Or As Your Needs
Highlight

15t Material Transfer Carts

,

Unpowered Rail Transfer Trolley

,

Forklift Towed Transfer Cart
Leave a Message
Product Description

Easy Operation No Powered Transfer Trolley

The no powered rail transfer cart is a kind of handling equipment that runs on the track by external traction or human push. It has a simple structure and stable operation. It is widely used in the medium and short distance transportation of workpieces and materials. The rail trailer body has no drive system, so the maintenance cost is low. It is suitable for material turnover workshops or scenes that require multi-vehicle collaborative transportation.



The equipment has the advantages of strong bearing capacity, stable operation, and solid structure. It is suitable for a variety of handling occasions, such as: machinery manufacturing, metallurgical casting, mold transfer and other industries. According to the shape of the transported material and the working conditions, the car table can be customized with V-frames, guardrails, roller devices and other structures to meet the needs of various material handling.



Advantages of unpowered transfer vehicle

  • Box girder structure, not easy to deform
  • Low cost with high frequency
  • Anti-explosion and anti- high temperature
  • Cab be towed or push by worker
  • Durable and environmental

​Easy Operation No Powered Transfer Trolley 0



Main of no power transfer vehicle


The main parts of the forklift transfer cart includes cart frame, towed hook, cast wheel, control box, etc.


Easy Operation No Powered Transfer Trolley 1


The parameter of non power steel coil trailer

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100



Easy Operation No Powered Transfer Trolley 2



Company Introduce



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.



Easy Operation No Powered Transfer Trolley 3Easy Operation No Powered Transfer Trolley 4Easy Operation No Powered Transfer Trolley 5

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer cart is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The transfer cart runs on the rails or common floor?



4. Whether exist turning?



5. Whether has other special requirement?
