10 M Cleaning Window Movable Table Lift
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | lift platform |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 20-30 days as usual delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Warranty | 24 Months |
---|---|---|---|
Load Capacity | Customized | Power Supply | Battery Operated |
Port | Qingdao/Tianjin/Shanghai | Application | Aerial Working,factory,workshop,construction Site |
Materials | Steel | ||
High Light | Cleaning Window Movable Table Lift,10m Movable Table Lift |

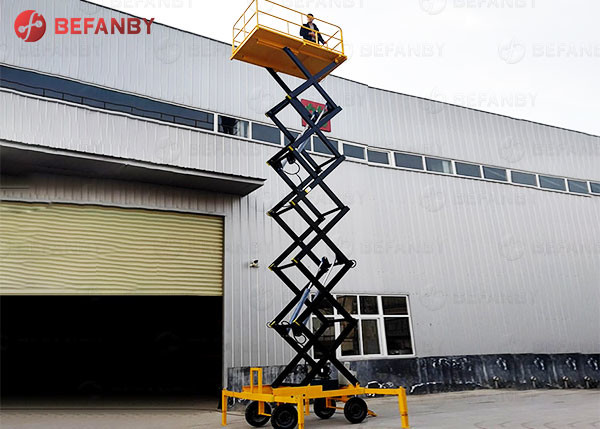

10 M Cleaning Window Movable Table Lift
Product Description
Application: widely used in logistics, manufacturing, warehousing and other industries, playing a key role. Whether in cargo loading and unloading, material handling or production line height adjustment, traction lifting platforms can play a key role in improving work efficiency and reducing labor costs.
Structure: Using high-strength manganese steel structure, four wheels for easy movement, large work surface, high load-bearing capacity, and can be operated by multiple people at the same time
Product specifications: There are a variety of lifting heights to choose from, mainly 4 meters, 6 meters, 8 meters, etc., and the weight can reach 300-500 kilograms.
Product Details
Product Parameter
Load Capacity | 500kg |
Capacity-Extension Deck | 110kg |
Max Number of Workers | 4 |
Max Working Height | 8m |
Max Platform Height | 6m |
Extension Deck Size | 0.9m |
Min Ground Clearance(Stowed) | 0.1m |
Min Ground Clearance(Elevated) | 0.015m |
Wheelbase | 1.87m |
Min Turning Radius(Inside) | 0m |
Min Turning Radius(Outside) | 2.4m |
Lifting Motor/Driving Motor | 24v/4.5kw |
Battery | 4×6V/200Ah |
Charger | 24v/30A |
Max Grade Ability | 25% |
Self Weight | 2250kg |
Product Feature
