Auto Electric Hydraulic Scissor Lift Platform
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | lift platform |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 20-30 days as usual delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Warranty | 24 Months |
---|---|---|---|
Load Capacity | Customized | Power Supply | Battery Operated |
Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
Materials | Steel | ||
High Light | Hydraulic Scissor Lift Platform,Auto Scissor Lift Platform,Electric Scissor Lift Platform |

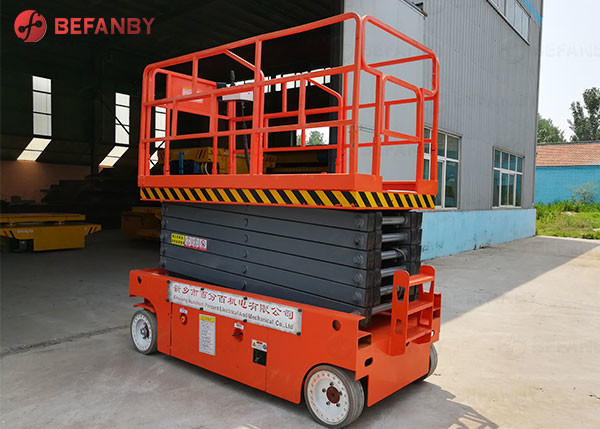

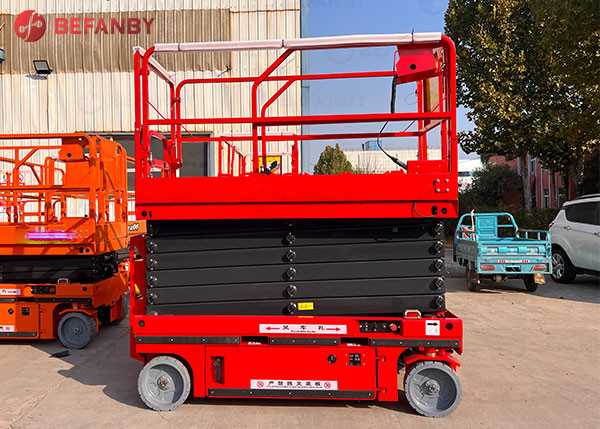

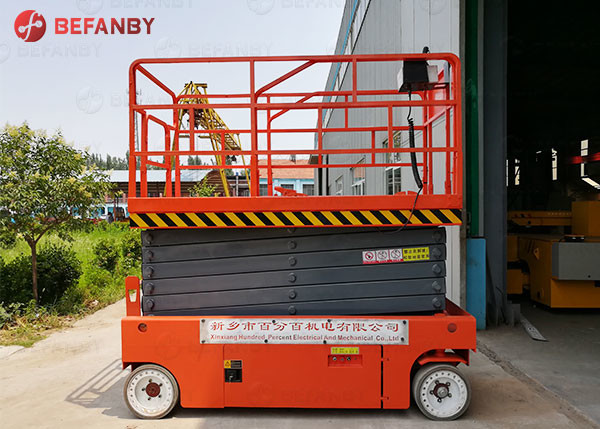

Auto Electric Hydraulic Scissor Lift Platform
Product Description

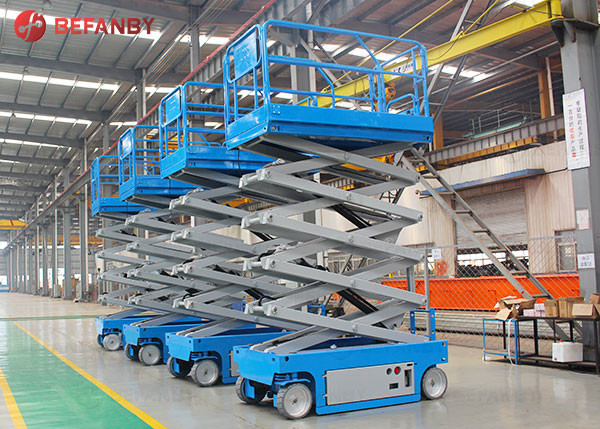

1. Scissor structure
The mechanical principle of the scissor lift work platform mainly relies on its unique scissor structure. The structure is made up of two sets of staggered telescopic arms. When the upper arm unfolds, the lower arm also unfolds, causing the entire platform to rise, and vice versa.
2. Hydraulic system
Scissor lift work platforms use a hydraulic system to control their lifting and lowering. Hydraulic pumps generate high pressure by transporting liquid, and hydraulic cylinders convert high pressure into mechanical power. The control valve can control the hydraulic flow delivered by the hydraulic pump, while the cylinder converts hydraulic energy into lifting power for the platform. This hydraulic system is not only more stable, but also has better lift control performance.
Product Details
Product Parameter
Load Capacity | 500kg |
Capacity-Extension Deck | 110kg |
Max Number of Workers | 4 |
Max Working Height | 8m |
Max Platform Height | 6m |
Extension Deck Size | 0.9m |
Min Ground Clearance(Stowed) | 0.1m |
Min Ground Clearance(Elevated) | 0.015m |
Wheelbase | 1.87m |
Min Turning Radius(Inside) | 0m |
Min Turning Radius(Outside) | 2.4m |
Lifting Motor/Driving Motor | 24v/4.5kw |
Battery | 4×6V/200Ah |
Charger | 24v/30A |
Max Grade Ability | 25% |
Self Weight | 2250kg |
Product Feature
