Battery Powered Full Automatic Electric Table Lift
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | lift platform |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 20-30 days as usual delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Warranty | 24 Months |
---|---|---|---|
Load Capacity | Customized | Power Supply | Battery Operated |
Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
Materials | Steel | ||
High Light | Battery Powered Electric Table Lift,Full Automatic Electric Table Lift,Automatic Electric Lifting Platform |

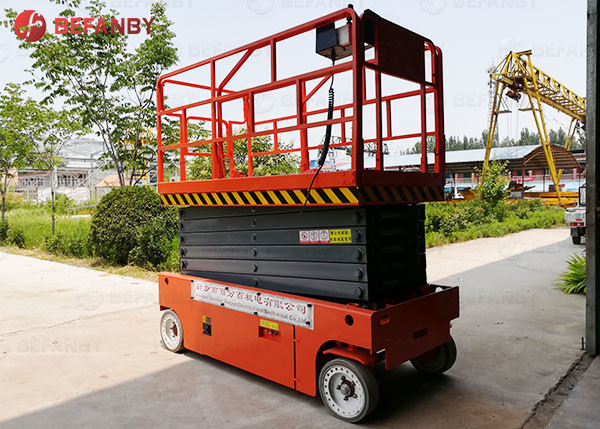

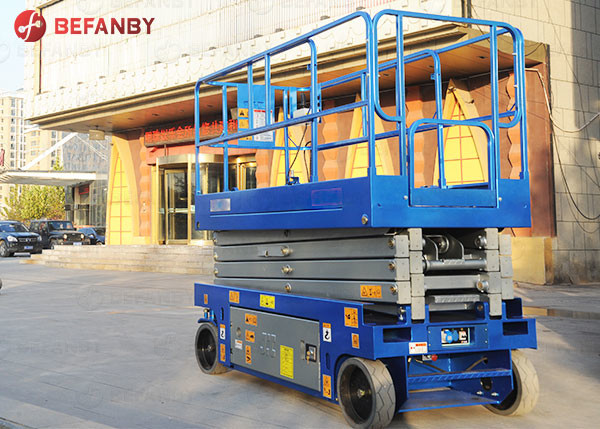

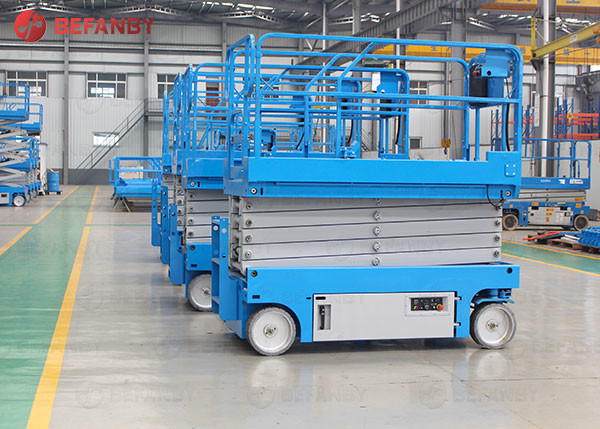

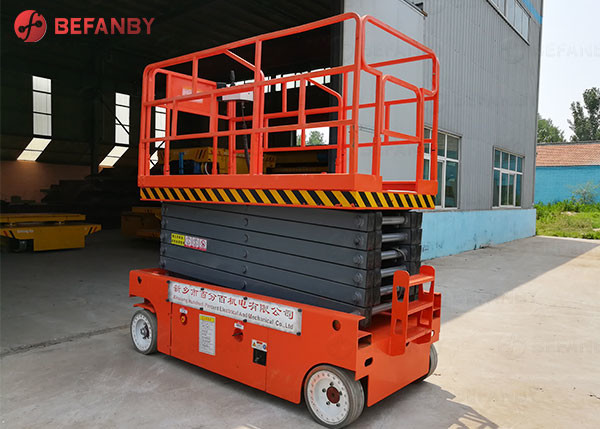

Battery Powered Full Automatic Electric Table Lift
Product Description
The self-propelled lifting platform is a kind of lifting equipment with self-propelled function. It not only has the functions of traditional lifting platforms, but can also move independently to adapt to the needs of different working scenes.
There is no need to manually move the lifting platform to the work site. With simple control, the lifting platform can move autonomously to the desired location, which greatly improves work efficiency and operational convenience.
The lifting height of the self-propelled lifting platform can be adjusted arbitrarily. Whether loading and unloading goods or performing maintenance and other work, the lifting height can be easily adjusted to meet different work needs through simple control.
In addition to self-propelled and adjustable lifting height functions, the self-propelled lifting platform also has a scissor lifting function. Scissor lifting is a common lifting method. The lifting platform is raised and lowered through the up and down movement of the scissors. The scissor lift platform has a simple structure, is easy to use, has high stability, and has the characteristics of strong load-bearing capacity.
Product Details
Product Parameter
Load Capacity | 500kg |
Capacity-Extension Deck | 110kg |
Max Number of Workers | 4 |
Max Working Height | 8m |
Max Platform Height | 6m |
Extension Deck Size | 0.9m |
Min Ground Clearance(Stowed) | 0.1m |
Min Ground Clearance(Elevated) | 0.015m |
Wheelbase | 1.87m |
Min Turning Radius(Inside) | 0m |
Min Turning Radius(Outside) | 2.4m |
Lifting Motor/Driving Motor | 24v/4.5kw |
Battery | 4×6V/200Ah |
Charger | 24v/30A |
Max Grade Ability | 25% |
Self Weight | 2250kg |
