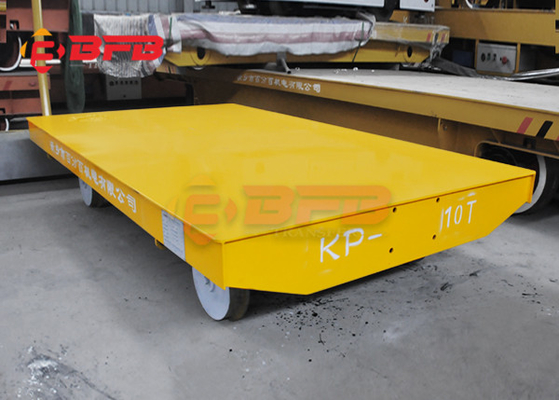

Manual Workshop Cast Wheel Q235 Towed Transfer Cart

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number KP/BWT
Minimum Order Quantity 1 set/sets
Packaging Details The heavy duty no power trailer will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 15-20 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 sets per year
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 2 Year
Application Material Transfer, Workshop ,production Line Capacity 1-1000t For Heavy Duty Tow Dolly
Power Supply No Powered/munual Product Name Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer
Operation Type Winch, Forklift, Manual Towing Material Q235
Color Yellow, Gray, Red Or As Your Needs Company Type Manufacturer For Material Handling Equipment Since 2003
High Light

Q235 Towed Transfer Cart

,

Cast Wheel Towed Transfer Cart

,

Manual Material Transfer Carts

Leave a Message
Product Description

Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer



1. Product Description

material handling dollies warehousing and material handling steel material handling equipment electric power cart

BEFANBY towed transfer no power trailers are four-wheel steering trailers commonly called tracking trailer or freight vehicles. The no powered trailer can be designed into a flat, box and V-shaped, U-shaped body. Our no powered trailers can be designed as electric powered towing trailers and non-electric powered (manual) towing trailers on rails or ground. We have designed different type wheels so that the trailer can run directly on the track or on the ground. It can drag or pull other engines connected with a tow bar or hook, such as tractors, winches, forklifts, railcars, etc. It can also be designed and added to handrails.

Heavy Duty Industrial No Powered Trailer On Rails Or Ground MnufacturerHeavy Duty Industrial No Powered Trailer On Rails Or Ground MnufacturerHeavy Duty Industrial No Powered Trailer On Rails Or Ground MnufacturerHeavy Duty Industrial No Powered Trailer On Rails Or Ground MnufacturerHeavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer

material handling dollies warehousing and material handling steel material handling equipment electric power cart

2. Main of Customized Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer



A. The main parts of the heavy duty tow dolly includes cart frame, towed hook, cast wheel, control box, etc.

material handling dollies warehousing and material handling steel material handling equipment electric power cart

a. The Parts of the rail type towing dolly


Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer



b. The Parts of the no rail type heavy duty no power trailer



Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer





3.The parameter of Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

material handling dollies warehousing and material handling steel material handling equipment electric power cart



4. Other product BEFANBY Company can customize



Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional company that produces handling equipment and transshipment vehicles. BEFANBY deals with the complicated loading and unloading of bulk materials, fixed-point transportation, repeated transfers, and off-site transfers, as well as steering flexibility, loading and unloading, and transportation. Special electric rail flat cars, flatbed trailers, and unpowered tractors are designed to improve the transport efficiency, labor intensity, and performance. It is currently a product with a high cost performance among transport vehicles.



Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer

5. Company Introduce

material handling dollies warehousing and material handling steel material handling equipment electric power cart

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer
Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer



5. Design Requirement Of Heavy duty tow dolly

The load capacity, table size, color of the roller bed trailers all can be customized.

1. The rated load capacity: BEFANBY will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trolley plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

Heavy Duty Industrial No Powered Trailer On Rails Or Ground Mnufacturer
