Full Automatic Electrical Mobile Scissor Lift Table
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | lift platform |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 20-30 days as usual delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Warranty | 24 Months |
---|---|---|---|
Load Capacity | Customized | Power Supply | Battery Operated |
Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
Materials | Steel | ||
High Light | Mobile Scissor Lift Table,Electrical Scissor Lift Table,Full Automatic Scissor Lift Table |

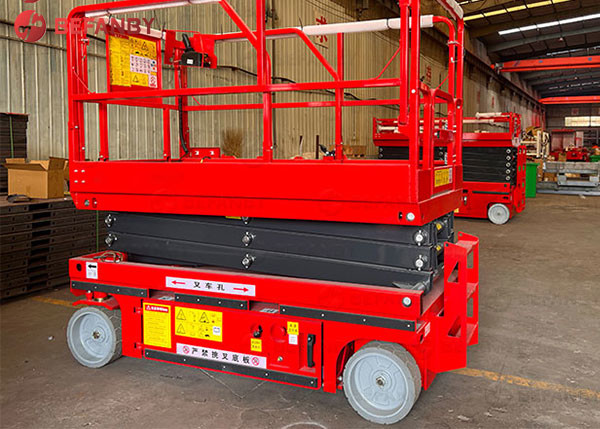

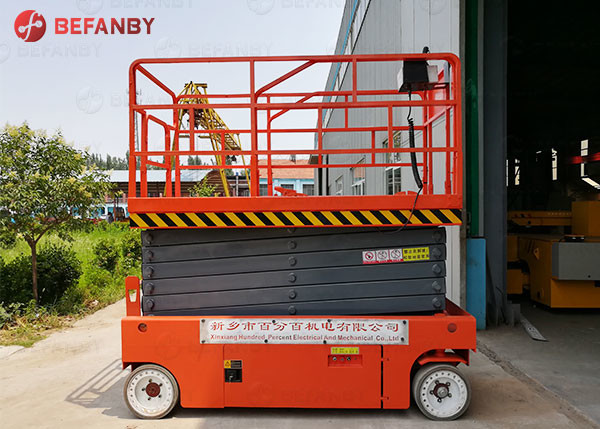

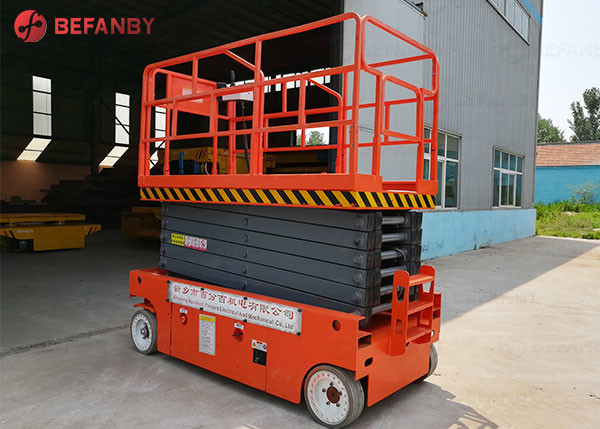

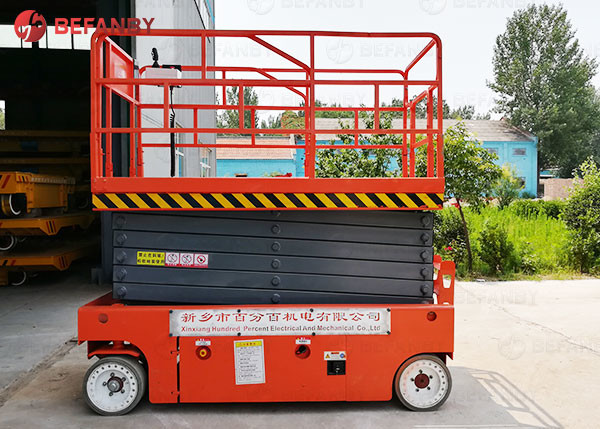

Full Automatic Electrical Mobile Scissor Lift Table
Product Description
Lifting platform is a special kind of machine equipment, which usually consists of workbench, lifting mechanism, hydraulic drive device, electrical control device, metal structure, safety device and other components.
The electrical control device consists of two parts: an electrical cabinet and a manipulator. The electrical cabinet is responsible for controlling the electrical signals of the oil pump and actuator, and the manipulator is responsible for executing instructions and controlling the up and down movement of the entire equipment.
Generally speaking, the electrical control system of the lifting platform is divided into two types: manual control and automatic control. Manual control methods usually use buttons, switches and other buttons to realize the lifting and lowering operations of the lifting platform. The automatic control method realizes more precise operation of the lifting platform through the control of encoders such as PLC.
Product Details
Product Parameter
Load Capacity | 500kg |
Capacity-Extension Deck | 110kg |
Max Number of Workers | 4 |
Max Working Height | 8m |
Max Platform Height | 6m |
Extension Deck Size | 0.9m |
Min Ground Clearance(Stowed) | 0.1m |
Min Ground Clearance(Elevated) | 0.015m |
Wheelbase | 1.87m |
Min Turning Radius(Inside) | 0m |
Min Turning Radius(Outside) | 2.4m |
Lifting Motor/Driving Motor | 24v/4.5kw |
Battery | 4×6V/200Ah |
Charger | 24v/30A |
Max Grade Ability | 25% |
Self Weight | 2250kg |
Product Feature
