20 Ton Handing Metal Plate Electrical PU Wheel Trackless Transfer Carts
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 20 Ton Handing Metal Plate Electrical PU Wheel Trackless Transfer Carts | Color | Customized |
|---|---|---|---|
| Warranty | 12 Months | Load Capacity | 1-500T |
| Running Speed | 0-20m/min | Running Distance | Unlimited |
| Power Supply | Battery | Port | Qingdao/Tianjin/Shanghai |
| Application | Industial Field | Advantage | Flexible,turnning Free |
| Operation Type | Hand Pendant + Remote Control |
Product Description

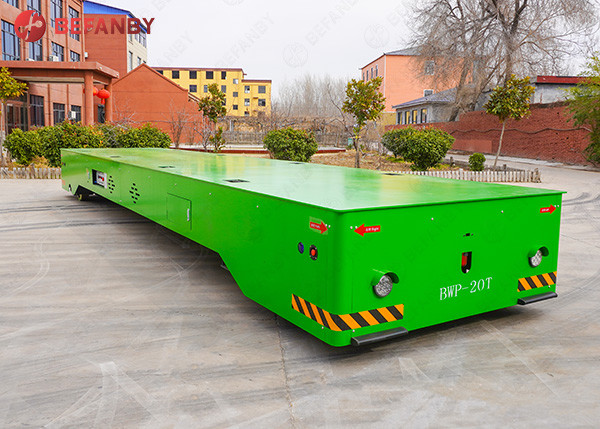

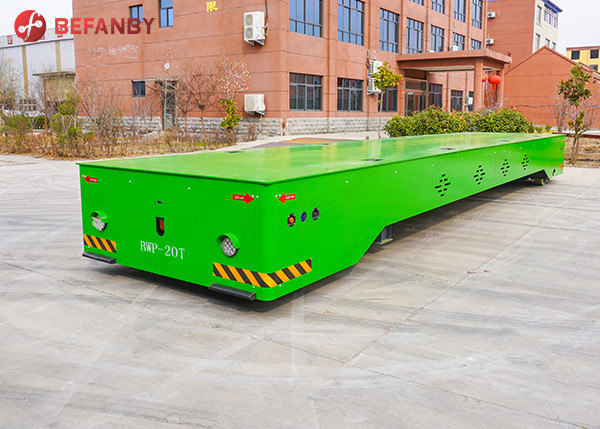

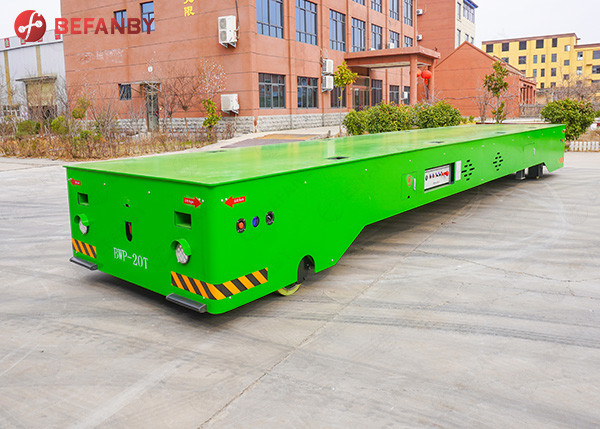

20 Ton Handing Metal Plate Electrical PU Wheel Trackless Transfer Carts
This trackless transfer cart uses high-performance polyurethane rubber-coated wheels with excellent anti-slip and wear-resistant properties, and can run flexibly on hard ground. The whole vehicle does not need to lay tracks for operation, the running distance is not limited, and it supports free planning of transportation routes, which can easily cope with complex or dynamically changing working environments.
The table size can be customized. According to the customer's material size and handling requirements, a widened, lengthened or specially structured working platform can be customized to meet the transportation of large-volume heavy-loaded items. According to the different materials being transported. The table can also be equipped with a protective frame or lifting function. The operation mode is flexible, and control systems such as remote control and laser guidance are optional. It is suitable for handling multiple types of materials such as molds, steel billets, and coils.
The intelligent operating system is one of the highlights of the trackless transfer cart, integrating multiple functions such as fixed-point berthing, path planning, and obstacle avoidance perception. By equipping with PLC program control, wireless remote control, laser navigation or QR code recognition system, the vehicle can achieve precise automatic operation and fixed-point parking, effectively reducing manual intervention and improving handling efficiency and safety.
Application
The 20 Ton Handing Metal Plate Electrical PU Wheel Trackless Transfer Carts is mainly applied in working line(ring production line, loop production line, assembly line), metallurgy industry (steel ladle, molten ladle, hot steel slag), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel tube, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).
Parts Showing
About the cart frame, the box girder structure is our special design that it is not easy to deform compared with other factory' design.
About the wheels, the material is PU wheel, inside material is cast steel, outside material is encapsulation. the wheel can avoid the damage from the ground.
About the battery, The maintenance free battery is usually chosen to export , this kinds are convenient and long lifetime, we needn't remove. so battery type transfer cart, this kinds is popular among foreign customers.
Advantage
As experts in custom motorized cart solutions, we can design and produce transfer carts to handle materials such as industrial pipe, dies, metal coils, heavy equipment, structural steel, components and assemblies. Our advanced-technology transfer carts can help you:
1. Minimize lost time waiting for parts and material delivery.
2. Reduce potential damage of material during transport.
3. Improve plant safety using controlled movement without overhead loads.
4. Improve visibility of load and surrounding area during transport.
5. Simplify control during load movement with easy-to-operate user interface systems
.
6. Increase maneuverability compared to towing options.
Processing
If you'd like to learn more about Flexible Motorised Trolleys Carts, Steerable Trackless Battery Transfer Cart On Cement Floor, Welcome to inquiry us.
Brief introduction----Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of rail transfer cart ,steerable transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our customers
Brief introduction----BEFANBY'S Supply Scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
Our After Service
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
