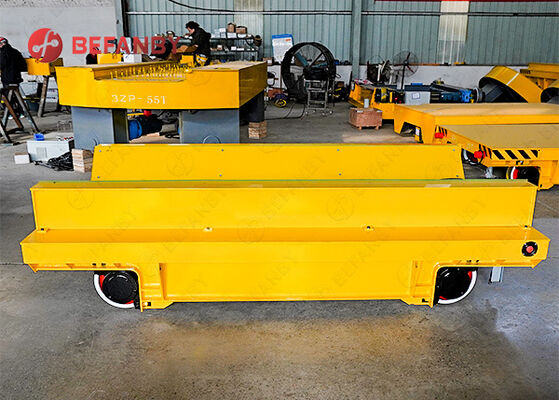

Steel Box Beam Structure Mobile Reel Rail Transfer Cart For Machinery Factory
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | RGV |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel |
Product Description
Steel Box Beam Structure Mobile Reel Rail Transfer Cart For Machinery Factory

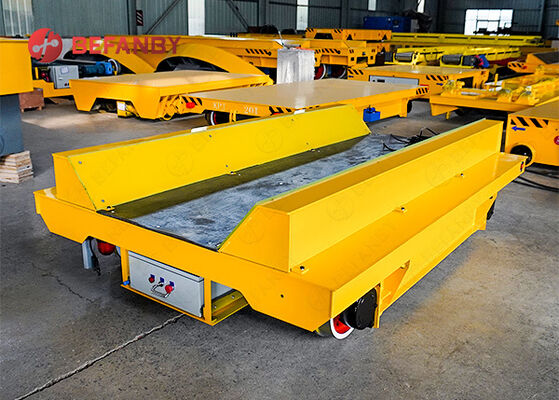

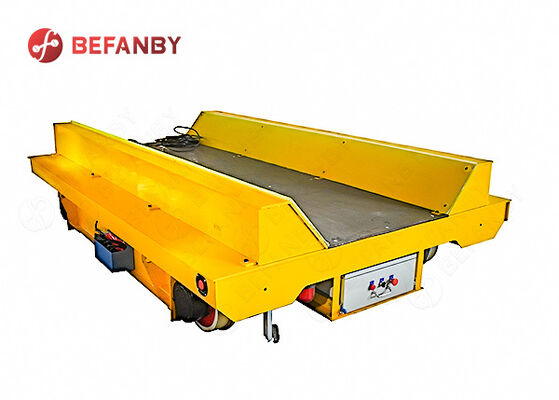

The coil material handling railcar is a specialized intelligent handling device designed for transporting coiled materials (such as steel coils, aluminum coils, and copper coils). It is widely used in industries such as metallurgy, steel, machinery manufacturing, and ports. The entire cart is designed with stability, safety, and efficiency as its core principles. Through a customized cart body structure and a dedicated coil material structure, it achieves smooth transfer and precise docking of heavy-duty coils.
Our Company
Customized Support
Product Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Key Features
Coil Device
The roll material handling unit can be designed as a fixed or adjustable type to accommodate different roll material sizes. Depending on the materials being transported, the roll material racks on the worktable can be disassembled to expand the worktable size, achieving multi-purpose functionality.
In terms of control, the roll material handling unit's rail-guided transport vehicle can be equipped with button operation, remote control operation, or an automated control system, and can be integrated with the production line to improve overall logistics efficiency.
Production Process
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
How to ensure your product quality?
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Whether you can offer customized transfer car?
Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Whether there is professional technician assist our installation?
Yes. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance so that we can arrange technicians.
