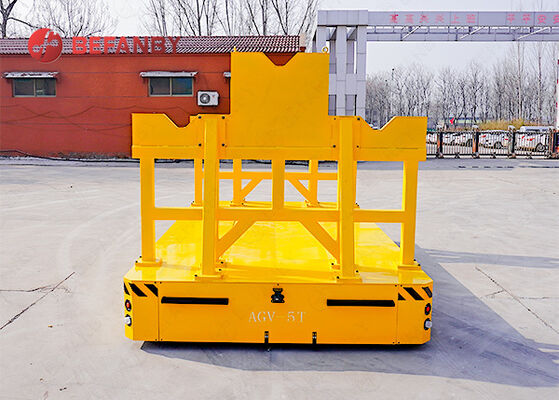

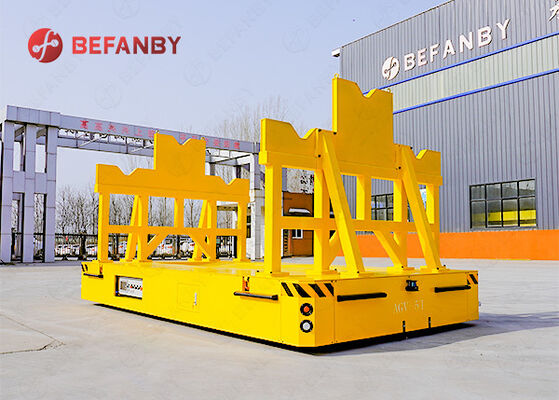

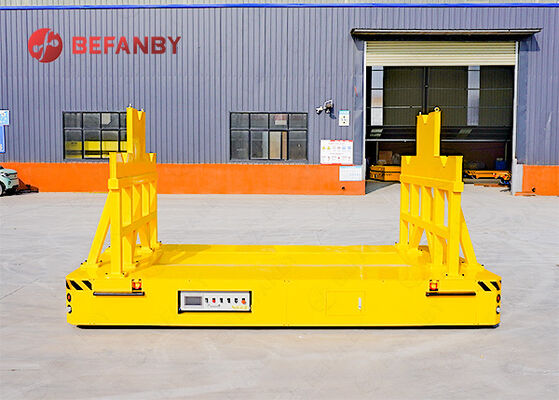

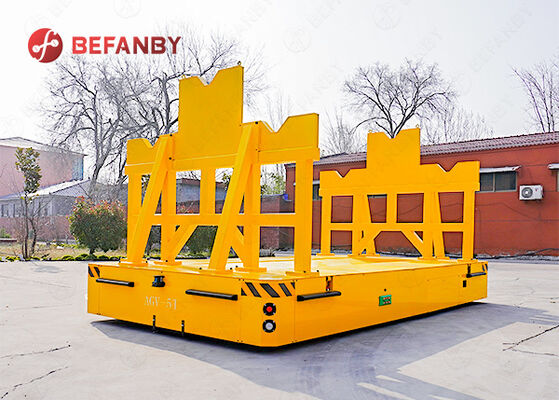

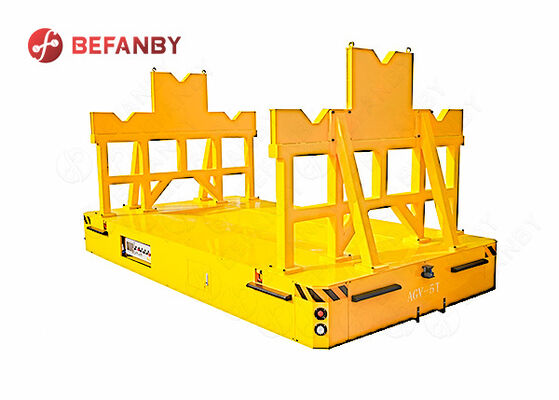

Customized Load Capacity Trackless AGV Transfer Cart with Intelligent Navigation System and High-Strength Steel Frame
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | AGV |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Product Details
| Load Capacity | Customized | Power Supply | Battery Operated |
|---|---|---|---|
| Materials | Steel | Running Speed | 18-25 M/min |
| Motor Power | 2-15 KW | Battery Voltage | 48-72 V |
Product Description
Customized Protive Trackless Frame AGV Transfer Cart
Product Description
The Intelligent Trackless AGV Transfer cart is a material handling system that seamlessly integrates automation, flexibility, and customization. It is exclusively designed to meet specific client requirements—taking into account on-site operating conditions, transport needs, and material dimensions—thereby satisfying the diverse handling demands of various industries and environments. Requiring no fixed tracks, the cart relies on an intelligent navigation system to navigate freely between workshops, warehouses, and production lines, significantly boosting transport efficiency.
Product Details
Navigation method
The cart features a high-strength steel frame structure, offering robust load-bearing capacity and smooth operation. It can be customized according to specific requirements regarding load capacity, platform dimensions, travel speed, and drive mechanism. It supports various navigation modes—including magnetic strip, laser, and QR code navigation—and is capable of automatic obstacle avoidance, precise docking, remote dispatching, and multi-cart collaborative operation.
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Company Profile
Product Feature
The cart platform features an integrated protective frame designed to effectively prevent materials from sliding, tipping, or colliding during transport. This design is particularly well-suited for the safe transfer of large box-shaped workpieces, coiled materials, equipment components, and irregularly shaped loads. The dimensions, height, and structural configuration of the protective frame can be fully customized to suit the specific cargo requirements, balancing both operational stability and ease of loading and unloading.
