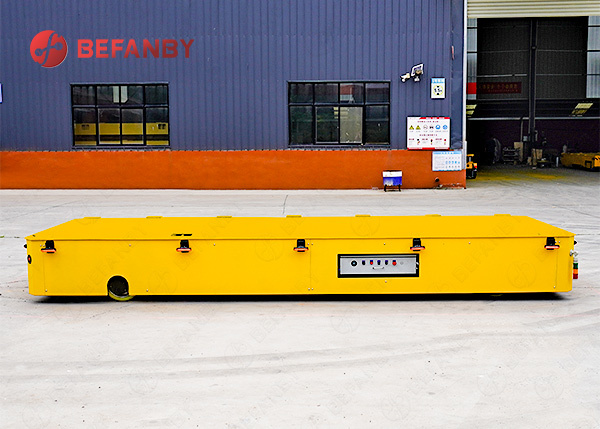

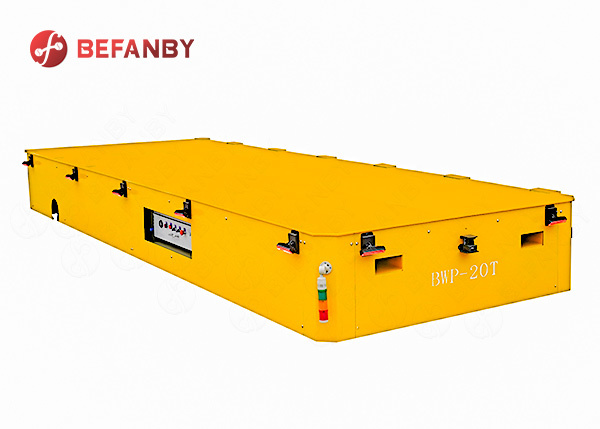

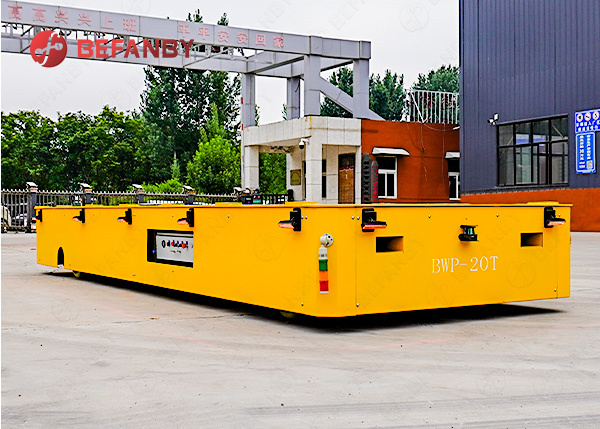

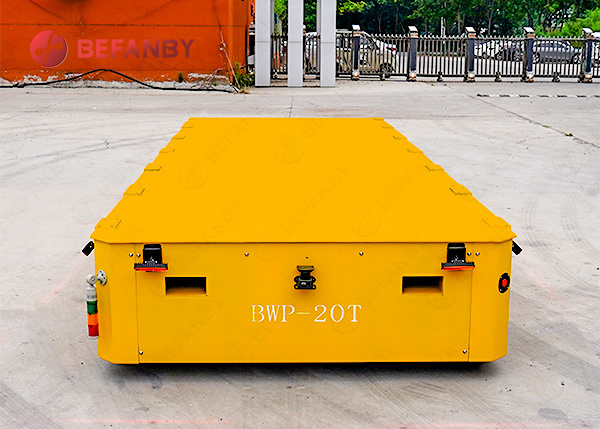

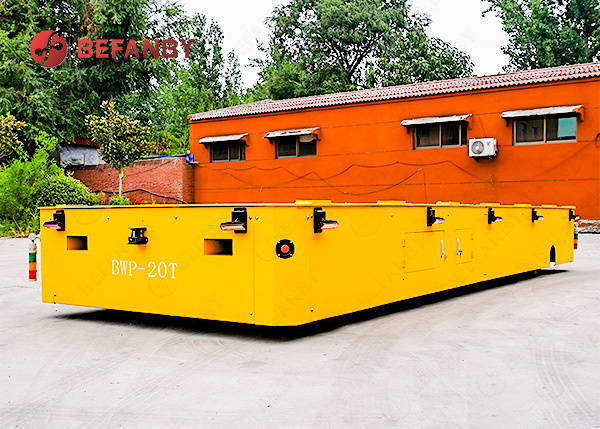

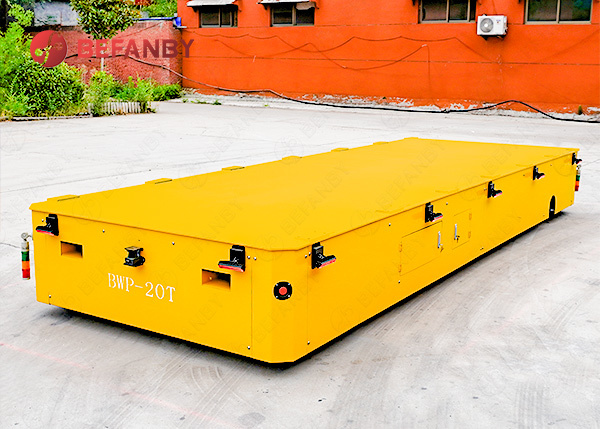

20 Ton Capacity Steerable Transfer Carts For Forging Factory
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Document | BWP.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 20T | Power Supply | Battery Powered |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description
6 Ton Steerable Trackless Transfer Cart For Material Handling
1. Product Introduce
As modern industrial production increasingly demands automation, intelligence, and high efficiency, traditional material handling methods struggle to meet the requirements of complex, smart production environments. As a new type of intelligent handling equipment, trackless transfer carts are being widely adopted across various industrial settings, thanks to their flexibility, operational efficiency, and reliability.
2. Technique Parameter
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Customization Based on Requirements
Utilizing advanced drive and control technology, the trackless transfer cart enables autonomous navigation, precise positioning, and intelligent scheduling. It eliminates the need for fixed tracks—indoors or outdoors—allowing for flexible route planning based on the production layout; this effectively reduces installation costs and maximizes the utilization of production space. Furthermore, its load-bearing capacity can be customized to meet specific material handling requirements, accommodating a wide range of weights and dimensions.
4.Product Features
- Intelligent Control
Equipped with an intelligent control system, the trackless transport vehicle enables automatic navigation, path planning, precision stopping, and remote monitoring. This reduces the need for manual operation while enhancing production efficiency and handling safety.
- High Load Capacity
The equipment features a high-strength structural design and premium core components, ensuring excellent load-bearing performance, operational stability, and long-lasting endurance to meet the demands of heavy-duty operations.
- Safety Protection
It is equipped with multiple safety features—such as automatic stops upon detecting personnel, emergency stops, and collision avoidance—effectively minimizing operational risks and ensuring the safety of both personnel and equipment.
- Energy Efficiency and Environmental Friendliness
Powered by electricity, the vehicle operates with low noise and minimal pollution. It also reduces the reliance on manual handling, helping enterprises cut costs, boost efficiency, and achieve greener production.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
