40T Battery transport cart for Mold Factory
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPJ |
| Document | KPDZ.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 30T | Power Supply | Cable Reel |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description

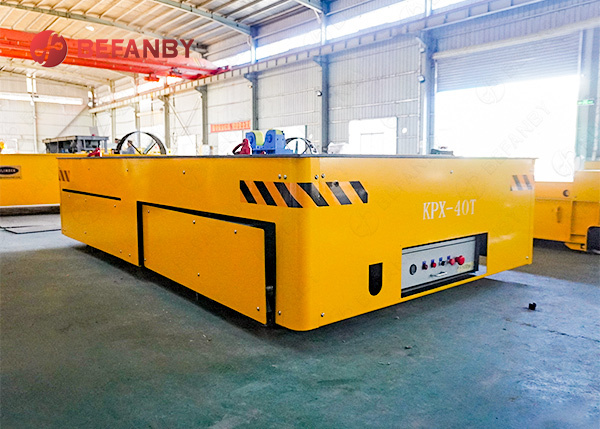

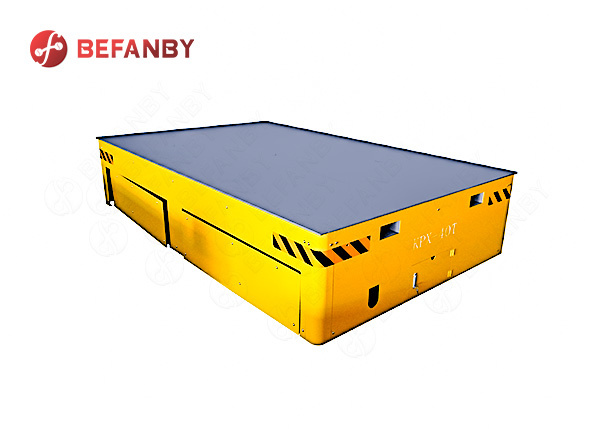

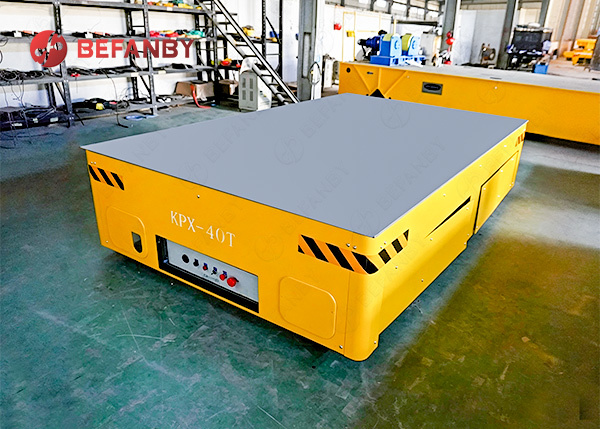

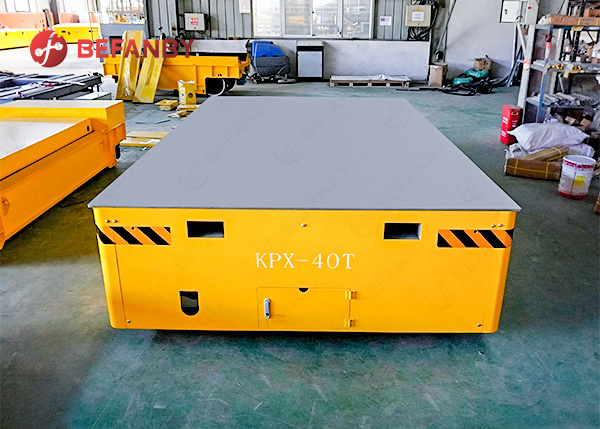

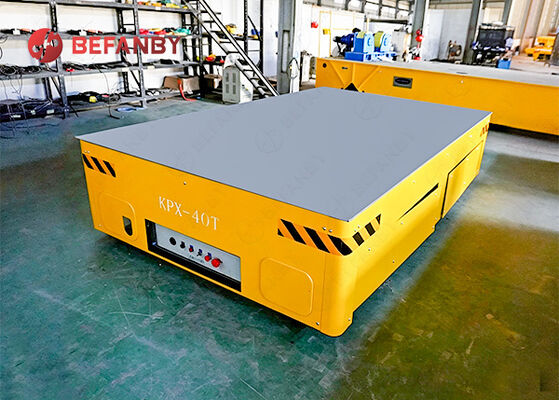

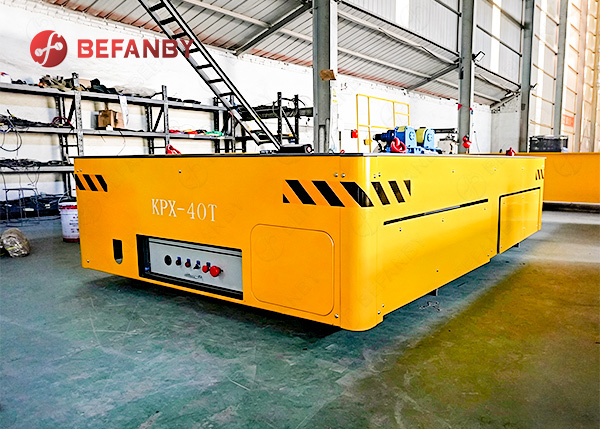

40T Battery transport cart for Mold Factory
1. Product Introduce
Designed specifically for heavy-duty material transport, this unit boasts a 40-ton load capacity and is suitable for use in factory workshops, heavy manufacturing lines, and large-scale industrial equipment processing areas.
Operating along fixed rails, the equipment transports materials back and forth along a preset route, thereby reducing reliance on manual labor and conventional handling equipment for moving heavy loads. For enterprises requiring frequent transfer of large workpieces, this heavy-duty rail transfer cart helps optimize internal logistics and improves the efficiency of material flow between different production stations.
2. Technique Parameter
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.40-Ton Heavy-Duty Design
The frame is the core component of the 40-ton rail transfer cart, required to withstand the cart's own weight, the load of the cargo, and dynamic loads generated during operation. To meet heavy-duty transport requirements, the frame can utilize a box-girder design or other suitable steel structures tailored to specific operating conditions, with strategic engineering applied to critical load-bearing areas.
A sound structural design ensures uniform load distribution, meeting the load-bearing capacity required for transporting heavy workpieces. The vehicle dimensions, platform width, and load-bearing structure can be customized based on the cargo's shape and center of gravity, enabling the equipment to better accommodate various types of industrial materials.
4.Operation and Control System
To suit specific operational habits and production management requirements, the 40-ton rail transfer cart can be equipped with a wired pendant or a wireless remote control system, enabling operators to easily control the vehicle's start, movement, and stop functions.
For scenarios requiring loading and unloading at designated stations, features such as position detection, travel limit switches, or precision stop capabilities can be added based on project specifications. If the equipment needs to be integrated into an automated production workflow, solutions involving PLC control and linkage with other equipment can also be evaluated.
An appropriately configured control system allows the transfer cart to better align with the factory's production pace, reduce repetitive tasks, and provide a foundation for future upgrades to automated logistics.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
